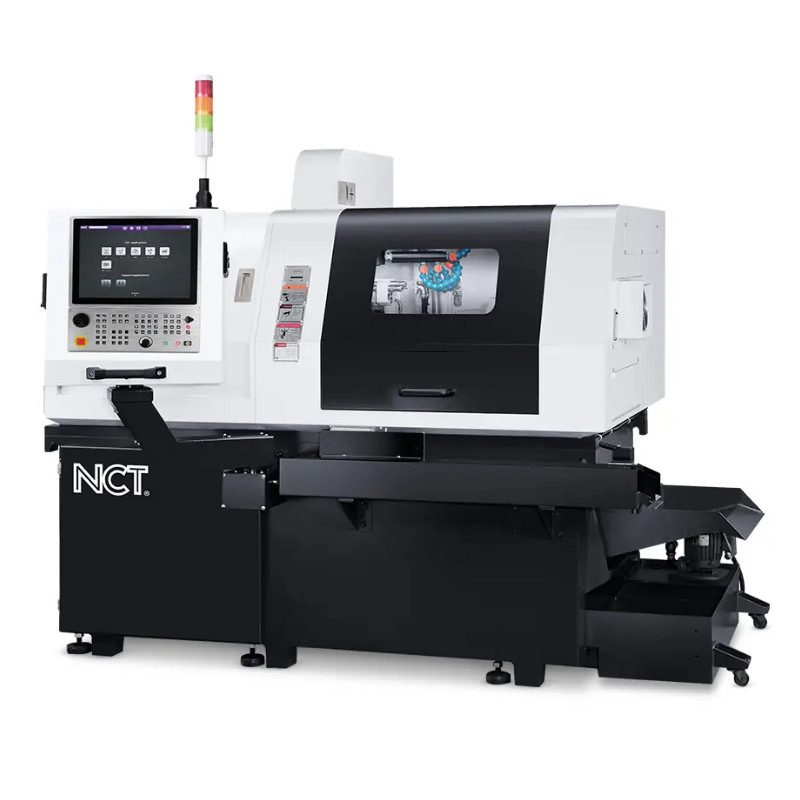

NCT JSL-42A Swiss-Type CNC Lathe
- Swiss-Type CNC lathe for high-precision turning
- 42 mm bar capacity for industrial components
- High-speed spindle performance up to 6000 rpm
- 4-axis machining capability for complex operations
- Driven tooling system for milling and drilling applications
Precision CNC Turning for Industrial Manufacturing
Swiss-Type CNC Lathe
The NCT JSL-42A is a Swiss-Type CNC lathe engineered for high-precision industrial machining applications requiring stable turning capability and optimized production efficiency.
42 mm Bar Capacity Capability
With a bar capacity up to 42 mm, the JSL-42A supports efficient machining of industrial bar materials and precision mechanical components.
High-Speed Spindle Performance
The spindle system supports spindle speeds up to 6000 rpm, ensuring efficient machining performance and reliable precision turning capability.
4-Axis Machining Configuration
The integrated 4-axis machining capability supports complex turning operations while improving machining flexibility and industrial productivity.
Driven Tooling System
The driven tooling configuration supports milling, drilling, and secondary machining operations designed for efficient multi-process industrial production.
Advanced CNC Control System
The integrated CNC controller simplifies machine operation while supporting optimized workflow management and stable industrial machining performance.
Stable Industrial Machining Performance
Designed for industrial manufacturing environments, the JSL-42A combines rigid machine construction, stable machining capability, and reliable long-term industrial productivity.
Technische Spezifikationen
Arbeitsbereich |
|
|---|---|
Maximaler Drehdurchmesser |
42 mm |
Maximale Drehlänge |
220 / 200 mm |
Restmaterial mit fester / synchronisierter Führungsbuchse |
200 / 200 mm |
Hauptspindel |
|
Stangendurchlass Hauptspindel |
42 mm |
Spannzangentyp |
1 |
Führungsbuchsentyp |
1 |
Maximale Spindeldrehzahl |
6000 rpm |
Hauptmotorleistung |
7.5 kW |
Antriebsart |
Motor-Spindel |
Kühlung |
Luft |
Gegenspindel |
|
Konstruktion |
Einzelspindel |
Werkzeugsystem |
|
Anzahl / Größe der externen Werkzeughalter (MS) |
6 / 16 x 16 x 95-155 |
Anzahl / Größe der festen Bohrwerkzeughalter (MS & SS) |
5 / ER20 |
Anzahl / Größe der angetriebenen axialen Werkzeugstationen (MS & SS) |
3 - 3 |
Max. Drehzahl / Drehmoment der angetriebenen Axialwerkzeuge (MS) |
4000 / 4 rpm / Nm |
Anzahl / Größe der angetriebenen radialen Werkzeugstationen (MS) |
4 / 5 x ER16 |
Drehzahl / Drehmoment der angetriebenen Radialwerkzeuge (MS) |
3000 / ... rpm / Nm |
Bohrkapazität mit festen Werkzeugen |
13 / 10 |
Gewindeschneidkapazität mit festen Werkzeugen |
M10 / M8 |
Achsen |
|
Anzahl der Achsen |
4 |
Eilganggeschwindigkeit |
18 mpm |
Installation |
|
Stellfläche × Höhe |
1 mm |
Nettogewicht der Maschine |
1 kg |
Elektrischer Anschluss |
3 x 400 VA |
Next-generation NCT CNC controllers
Next-generation NCT CNC controllers deliver precise and efficient control for CNC machining applications. Designed for flexibility, NCT controllers support conversational programming, CAM software integration, and traditional G-code programming. Advanced features also help monitor machine performance and optimize operation, ensuring consistently high precision, reliability, and productivity.
.png)
myNCT – Conversational programming for CNC machines
myNCT is a user-friendly conversational CNC programming software designed to simplify and speed up machining workflows. Its intuitive interface makes programming accessible for both beginners and experienced operators, allowing users to achieve professional results with minimal training.
Key features of myNCT CNC programming software:
-3+2-axis milling for fast and precise machining of complex geometries
-Free-form contour pocket machining with high flexibility for intricate shapes
-Simple milling cycles for quick programming of common machining operations
-Thread milling for accurate thread production across various materials
-Automated drilling cycles to improve efficiency and productivity
-Driven-tool milling capabilities for combined milling and turning operations
-Turning cycles for precise grooving, threading, and turning applications
3D Solid Model Graphics – Accuracy and efficiency in CNC controllers
3D solid model graphics in CNC controllers provide an advanced solution for real-time visualization and verification of machining processes. This technology helps operators:
-Detect CNC programming errors before machining
-Prevent potential collisions and machine damage
-Monitor the workpiece and machining progress with high accuracy
-Improve productivity, reduce material waste, and maintain consistently high manufacturing quality
Machine Construction and Key Features
-Rigid cast iron bed, column, and slides for maximum stability
-Semi or fully enclosed splash guard for improved operator safety
-Precision linear guideways with ball or roller type bearings on all axes
-Central oil-lubricated slide system with telescopic metal guideway covers
-Belt-driven spindle designed for reliable high-speed machining
-40 spindle taper compatible with DIN or BT tooling systems
-Digital oil cooler for headstock thermal stabilization
-Compressed air spindle protection and automatic taper cleaning
-High-precision ground double nut ball screws
-Pretensioned ball screws supported on both ends for rigidity
- Three colour status lamp
-Drum type tool magazine with arm type ATC system
-Fast and reliable automatic tool changing process
-Designed for efficient production workflows
-Stable tool handling during high-speed machining operations
-NCT 304 Smart Touch CNC with intuitive touchscreen interface
-EnDat 2.2 absolute measuring system for precise positioning
-0.00005 mm positioning resolution with nano interpolation
-Advanced CNC control optimized for industrial machining applications
-Smooth and accurate axis movement under demanding workloads
-Optimized mechanical structure for long-term positioning accuracy
-Spindle bearing protection by compressed air
