Stonex X120GO Industrial Inspection Camera
The Stonex X120GO is a compact and reliable industrial inspection camera designed for precise visual analysis, fast data acquisition, and stable performance. Built for demanding environments, it supports manufacturing, diagnostics, and quality control workflows with high accuracy.
- High-precision industrial inspection camera
- Fast and stable image/data capture
- Rugged design for harsh environments
- Lightweight and easy to deploy
- Ideal for diagnostics, alignment, and quality control
Share on

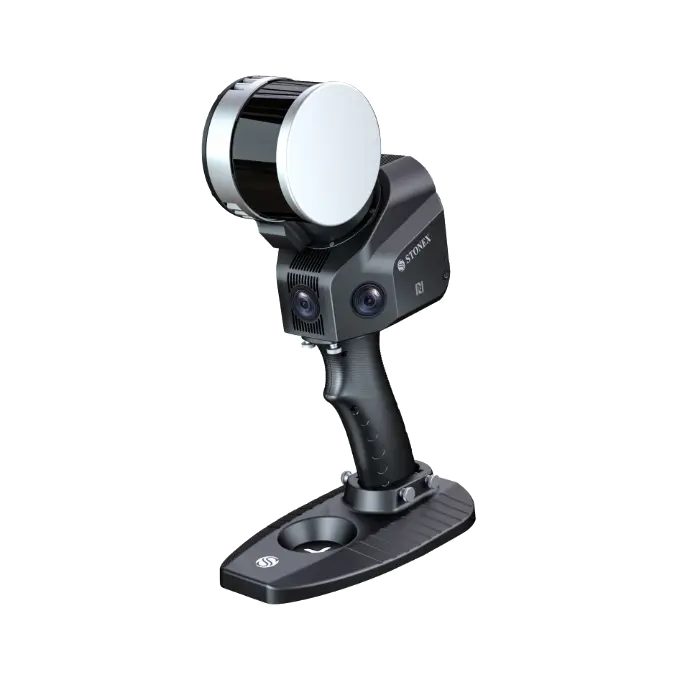

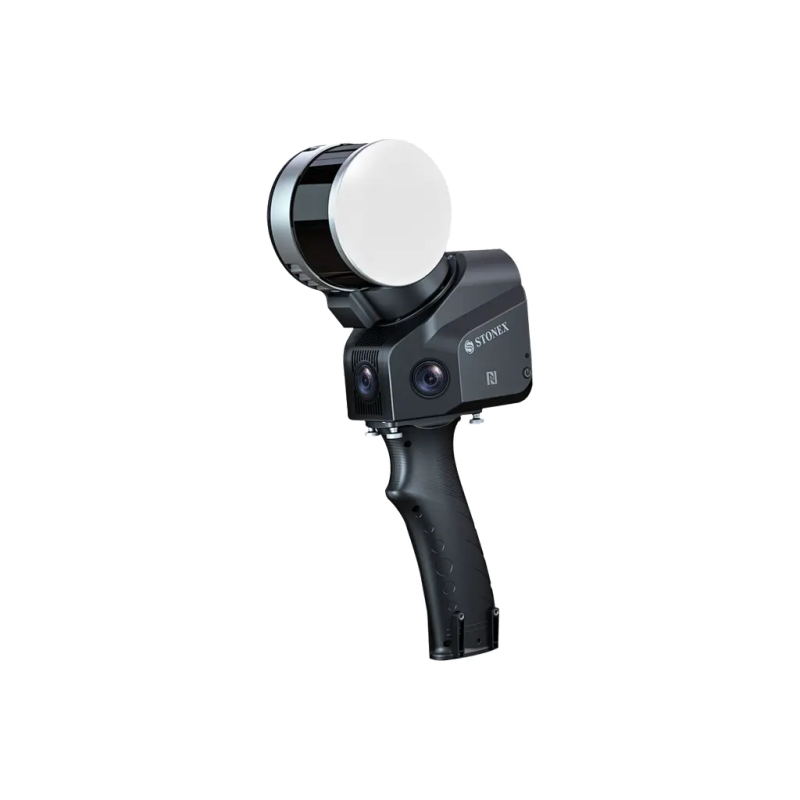

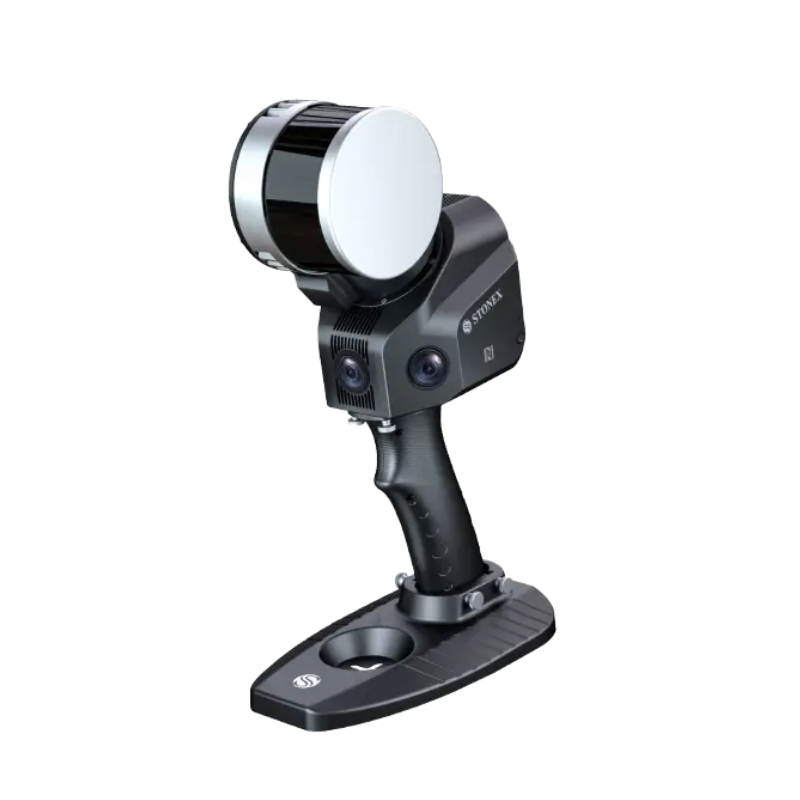

Stonex X120GO SLAM Laser Scanner
High-Precision Real-Time 3D Mapping & Modeling
GOapp and GOpost
GOapp is dedicate mobile application for X120GO , to manage projects, real time point cloud display, image preview, firmware upgrade and other operations. The APP runs on Android devices.
Windows post processing software which performs: • optimization processing • coloring of point clouds • creation of panoramic images • rototranslation on GCP.
Automatic control point measurement
X120GO can automatically collect ground control points, simply by standing over the same point for a few seconds. This will make it easy to rototranslate or georeference the data obtained .

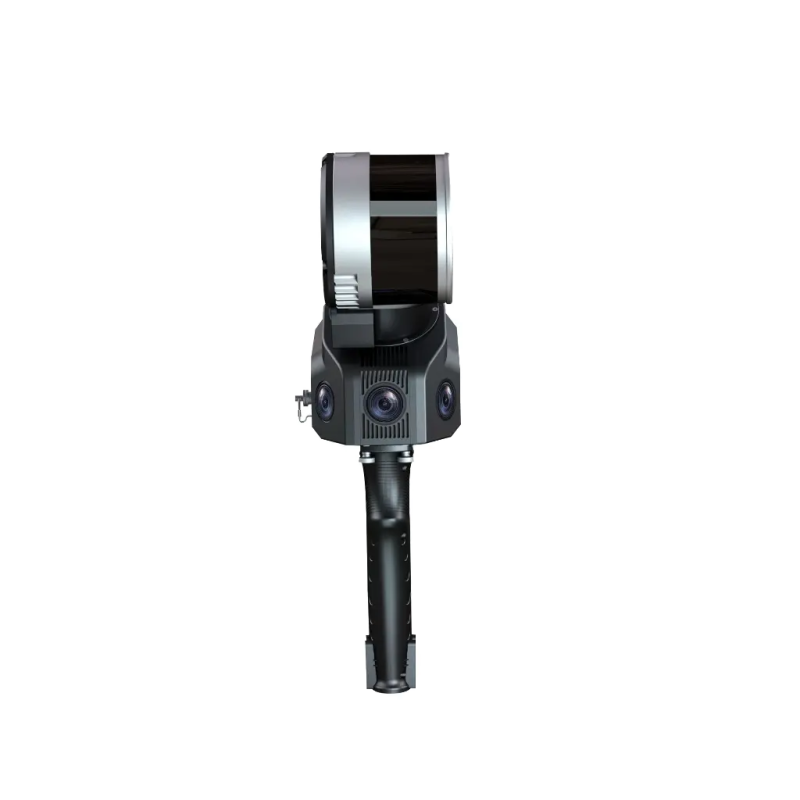

Three 5-megapixel cameras are adopted for 200x100 field of view, to obtain texture information and produce colour point clouds and partial panoramic images.
| SYSTEM | |
|---|---|
| Data storage | 32GB (expandable) |
| Communication | NFC, WI-FI |
| Operating mode | Realtime visualization (Android) |
| Processing mode | GOpost software |
| ELECTRICAL SPECIFICATION | |
| Power consumption | 25W |
| System supply voltage | 20–30V |
| Operating time | 2.5h (1 battery set – 4 batteries) |
| Battery capacity | 3350mAh × 4 |
| PHYSICAL SPECIFICATION | |
| Weight | 1.6 kg (without battery) |
| Size | 372 mm × 163 mm × 106 mm |
| Operating temperature | −10°C to +45°C (14°F to 113°F) |
| Operating humidity | <85% RH |
| Waterproof / Dustproof | IP54 |
| LIDAR | |
| Max Range | 120 m |
| Min Range | 0.5 m |
| Relative accuracy | up to 6 mm |
| Vertical resolution | 16 channels |
| Scanning point frequency | 200,000 pts/s |
| Field of view | 360° × 270° |
| Laser class | Class I |
| Echo strength | 8 bits |
| RGB CAMERA | |
| Number of pixels | 3 (5 MP each – total 15 MP) |
| Cameras FOV | 200° × 100° |
| Image | Semi-spherical |
| RGB Point Cloud | Supported |
