Stonex XVS Advanced Industrial Vision & Inspection System
The Stonex XVS is a high-performance industrial vision and inspection system designed for precise imaging, reliable measurement, and seamless integration into automated workflows. Built for demanding environments, it delivers exceptional clarity, stability, and operational efficiency.
- High-resolution imaging for accurate inspection
- Robust design suitable for industrial conditions
- Fast and stable data acquisition
- Easy integration into automation systems
- Ideal for quality control and process optimization

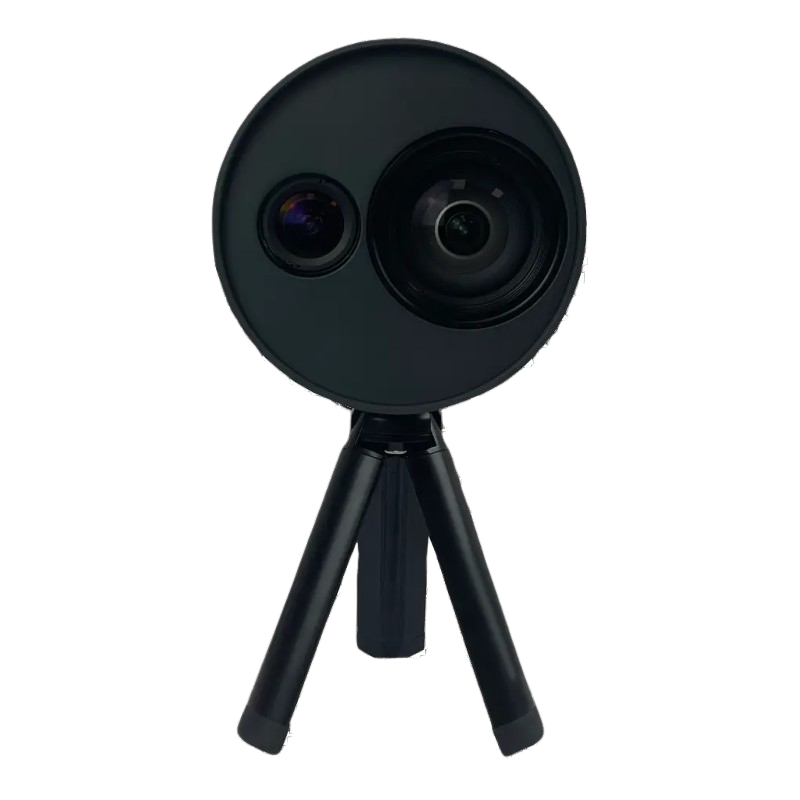

Stonex XVS SLAM Scanner
Real-Time 3D Mapping with Visual SLAM
Accurate and easy to use
The intelligent algorithm allows you to select the best images and increase the accuracy of the derived model. If the shot is very close to the element (about 1 m) and closes where it started - the loop closure - the accuracy is 2-3 mm.
Because of its practicality and ease of use, it can be used by several people within a company or institution without the need for prior knowledge of 3D scanners.
Many uses
The XVS scanner can be used to document a wide range of urban scenarios such as infrastructure, accident reconstruction, gas/water connection works, building surfaces and others. The geometrical accuracy and colour fidelity of the results are also suitable for archaeological, architectural and geological work.
XVS Technical Features
Performance
| Min Range | 0.4 m |
| Max Range | 40 m |
| Trajectory Accuracy (in postprocessing) | 4 mm¹ |
| Relative Accuracy @1m | 3 mm¹ |
| Relative Accuracy @20m | 2 cm¹ |
Min / Max Range
0.4 m / 40 m
Trajectory Accuracy
4 mm¹ (in postprocessing)
Relative Accuracy @1m
3 mm¹
Relative Accuracy @20m
2 cm¹
Imaging
| vSLAM camera - Resolution | 640 x 480 px |
| vSLAM camera - FOV | 65° |
| vSLAM camera - Frame rate | 25 fps |
| RGB camera - Resolution | 2448 x 2048 px |
| RGB camera - FOV | 89° |
| RGB camera - Frame rate | 10 fps |
| RGB camera - Shutter sensor | Global |
vSLAM Camera
640 x 480 px | FOV: 65° | 25 fps
RGB Camera Res & FOV
2448 x 2048 px | FOV: 89°
RGB Camera Frame & Shutter
10 fps | Global Shutter
System
| IMU | 3x3x3 - Gyroscope, magnetometer and accelerometer |
| Communication & Power | USB-C 3.0 |
IMU
3x3x3 - Gyroscope, magnetometer and accelerometer
Communication & Power
USB-C 3.0
Electrical Specification
| Supply Voltage | 5V (through USB) |
| Power Consumption | Max 4W |
Supply Voltage
5V (through USB)
Power Consumption
Max 4W
Physical Specification
| Weight | 740 g |
| Total Case Weight | 5 kg |
| Size (Length x Diameter) | 151 mm x 120 mm |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
Weight & Case Weight
Device: 740 g | Total Case: 5 kg
Size (L x D)
151 mm x 120 mm
Operating Temperature
0°C to +40°C (32°F to 104°F)
1. Environment dependent. Indoor environment must be well illuminated and have non homogeneous walls. Reflective surfaces should be avoided.
