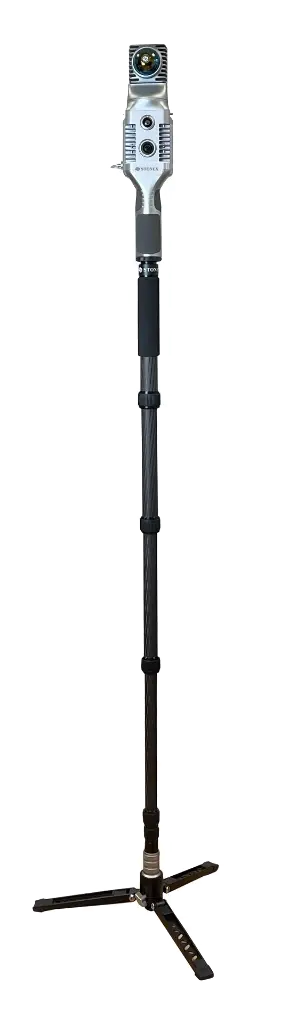

Stonex X70GO Industrial Inspection Scanner
The Stonex X70GO is a high-precision industrial inspection scanner designed for fast measurements, clear visual analysis, and reliable performance in demanding environments. It supports manufacturing, diagnostics, and quality control with consistent accuracy.
- High-precision scanner for industrial inspection
- Fast and stable data/image acquisition
- Durable construction for tough environments
- Lightweight and easy to operate
- Ideal for diagnostics, alignment, and quality control
Share on
Stonex X70GO SLAM Laser Scanner
High-Precision Real-Time 3D Mapping & Modeling
GOapp & GOpost
GOapp is a mobile app for Stonex SLAM scanners for project management, real-time point cloud display, image preview, firmware update and other operations. The APP runs on Android and Ios operating systems.
Post-processing software for Windows that performs optimization processing, point cloud coloring and panoramic image creation. You can also import control points to georeference the point cloud.
X-WHIZZ MODE

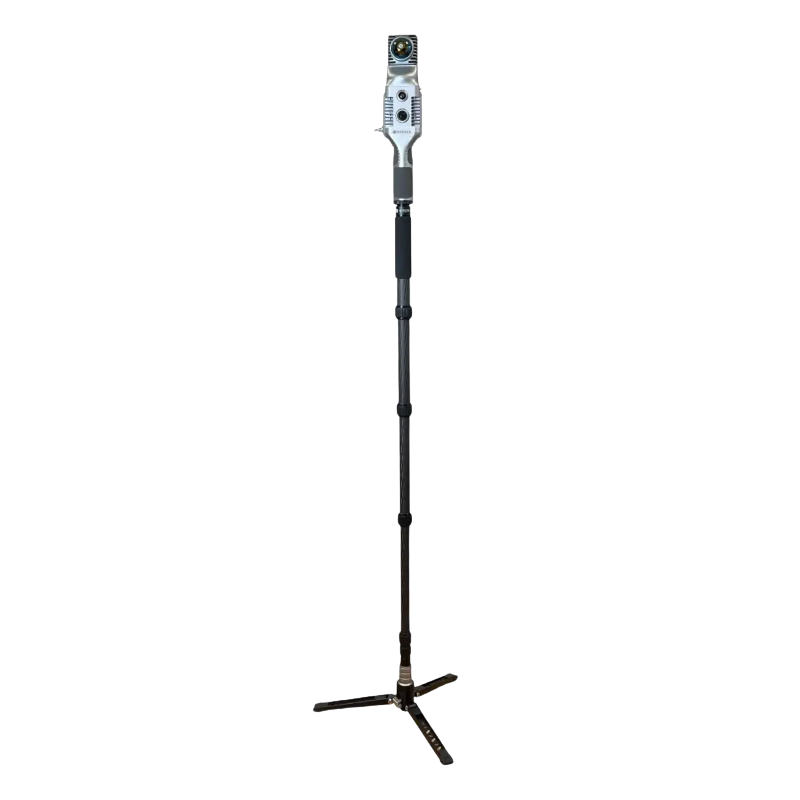

X70G0 merges mobile and stationary surveying. To the advantageous SLAM solution that allows you ot survey large areas in a very short time, ti combines a stationary mode to scan with higher resolution. Mount X70GO on a monopod and stand still in key areas for a few seconds. tI si the perfect trade-off for those who need speed and detail in a mobile survey.
The built-in visual camera makes the real time SLAM algorithm more stable, especially in weak structural textures environments. The data are ready to be used as soon as the survey is completed.
X70GO Technical Features
LIDAR
| Max Range | 70 m @80%, 40 m @10% |
| Min Range | 0.1 m |
| Scanning Point Frequency | 200,000 pts/s |
| Field of view | 360°H, -7~52°V |
| Laser Class | Class 1 eye-safe per IEC/EN 60825-1:2014 |
| Wavelength | 905nm |
| Frame rate | 10 Hz |
COLOR CAMERA
| N° of pixels | 12 Mpx |
| Diagonal FOV | 210° |
| Focal length | 1.26 mm |
| Resolution | 4000x3000 px |
| Sensor size | 1 inch |
| Pixel size | 1.55 µm |
VISUAL CAMERA
| N° of pixels | 12 Mpx |
| Diagonal FOV | 100° |
| Focal length | 3.24 mm |
| Resolution | 4000x3000 px |
| Sensor size | 1 inch |
| Pixel size | 1.55 µm |
SYSTEM
| Relative accuracy | 6 mm¹ |
| Control point support | Ground & wall |
| Data storage | 512GB SSD |
| Communication | Wi-fi, USB type-c, LEMO |
| Operating mode |
SLAM mode Static mode (X-Whizz) |
| Processing mode |
Real time processing Post-processing with GOpost |
ELECTRICAL SPECIFICATION
| Power consumption | 20W |
| System supply voltage | 20V |
| Operating time | 1.5 h (single battery)² |
| Battery weight | 400 g |
| Battery input voltage | 5-20V |
| Battery output voltage | 10.8V |
| Battery capacity | 3000mAh |
PHYSICAL SPECIFICATION
| Weight | 0.925 kg (Without battery) |
| Size (with handle) | 364.5 mm x 173.8 mm x 170 mm |
| Operating temperature | -20°C to +50°C (-4°F to 122°F) |
| Storage temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating humidity | <95% |
| Waterproof/Dustproof | IP54 |
PLATFORM/EXTENSION
| Backpack | ✓ |
| GNSS module | ✓ (accessory) |
| 360° camera | Insta X360 X4/X4air/X5; DJI Osmo360 |
¹ Depending on the environment and flight/walking conditions.
² Continuous operation at 25°C.
LIDAR
Max Range
70 m @80%, 40 m @10%
Scanning Freq.
200,000 pts/s
Field of View
360°H, -7~52°V
CAMERAS
Color Camera
12 Mpx (4000x3000 px)
Visual Camera
12 Mpx (4000x3000 px)
SYSTEM
Relative accuracy
6 mm¹
Data storage
512GB SSD
Modes
SLAM, Static (X-Whizz)
ELECTRICAL
Consumption
20W
Operating time
1.5 h (single battery)²
PHYSICAL
Weight
0.925 kg (Without battery)
Size
364.5 mm x 173.8 mm x 170 mm
Protection
IP54
PLATFORM
GNSS Module
✓ (accessory)
360° Camera
Insta X360 X4/X5, DJI Osmo360
