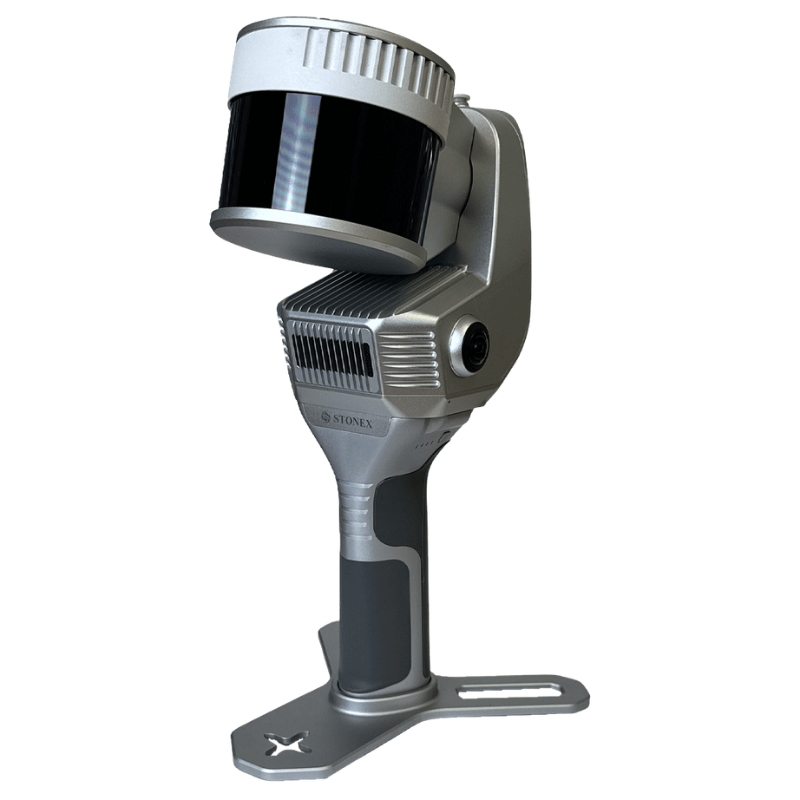

X200GO Industrial Inspection Scanner
The X200GO is a compact and high-accuracy industrial inspection scanner designed for fast measurements, clear visualization, and reliable performance in demanding environments. Ideal for manufacturing, maintenance, and quality control applications.
- High-precision scanning for accurate inspection
- Robust, industry-grade construction
- Fast data capture with stable operation
- Lightweight and easy to deploy in any workspace
- Suitable for quality control, alignment, and diagnostics
Share on
The Stonex X200GO is a next-generation mobile laser scanner designed for professionals who need fast and precise 3D data acquisition. Equipped with advanced SLAM technology, two 12 MP cameras and a hybrid scanning mode (mobile + static), the X200GO delivers maximum field flexibility and high-quality results in just minutes.
With a working range of up to 300 m, 6 mm accuracy and GNSS/RTK georeferencing capability, the X200GO is the ideal solution for surveying, architecture, construction, GIS, industry and many other fields.
Scanning Range up to 300 m
Ideal for outdoor projects and large-scale environments.
Advanced SLAM Technology
Enables walk-and-scan operation without GPS.
Hybrid Mode: Mobile + Static
Perfect balance between scanning speed and high precision.
Dual 12 MP Cameras
Provides realistic point cloud colorization and crisp panoramic images.
Integrated GNSS / RTK
Automatic georeferencing for professional surveying work.
Real-Time Processing
Immediate visualization of captured data.
Drone Compatibility
Suitable for aerial surveying and hard-to-reach locations.
Lightweight: Only 1.4 kg
Highly portable and easy to operate in any field environment.
User Benefits
Fast High-Density Point Clouds
Efficient capture with excellent detail.
Complete Workflow
Capture → process → export, all within a unified system.
Indoor & Outdoor Performance
Perfect for all types of environments and complex spaces.
Reduced Time & Costs
More efficient than traditional measurement methods.
High Versatility
Ideal for open terrain, buildings, tunnels, and more.
| LIDAR | |
|---|---|
| Sensor Model | Hesai XT32M2X |
| Max Range | 300 m |
| Min Range | 0.5 m |
| Return Number | 3 |
| Scanning Point Frequency | Single Ret.: 640,000 pts/s |
| Field of View | 360° × 290° |
| Laser Class | 1 |
| Channels | 32 |
| Wavelength | 905 nm |
| COLOR CAMERA | |
| N° of Pixels | 24 Mpx (2 cameras, 12 Mpx each) |
| Diagonal FOV | 210° |
| Focal Length | 1.26 mm |
| Resolution | 4000 × 3000 px |
| Sensor Size | 1/2.3 inch |
| Pixel Size | 1.55 μm |
| GNSS RECEIVER | |
| Satellites Signal |
GPS L1 C/A/L2P(Y)/L2C/L5 GLONASS G1/G2 Galileo E1/E5A/E5B BDS B1I/B2I/B3I QZSS L1/L2/L5 |
| DGPS (RMS) |
Horizontal 0.4 m ± 1 ppm Vertical 0.8 m ± 1 ppm |
| RTK (RMS) |
Horizontal 0.8 cm ± 1 ppm Vertical 1.5 cm ± 1 ppm |
| Speed Accuracy (RMS) | 0.03 m/s |
| SYSTEM | |
| Relative Accuracy | Up to 6 mm¹ |
| Global Accuracy | Up to 2 cm¹ |
| Platform Accuracy | 5 cm on UAV platform¹ |
| Control Point Support | Ground & wall |
| Data Storage | 512 GB SSD |
| Communication | Wi-Fi, Bluetooth, USB Type-C, Lemo connector |
| Operating Mode | SLAM & X-Whizz modes |
| Real-time Mode | Real-time visualisation, colouring, orientation |
| Processing Mode | Real-time processing / Post-processing with GOpost² |
| ELECTRICAL SPECIFICATION | |
| Power Consumption | 26 W |
| System Supply Voltage | 20 V |
| Operating Time³ | 1.2 h (single battery) |
| External Power | USB Type-C |
| Battery Input Voltage | 5–20 V |
| Battery Output Voltage | 10.8 V |
| Battery Capacity | 3000 mAh |
| PHYSICAL SPECIFICATION | |
| Weight | 1.4 kg (without battery) / 1.9 kg (with battery) |
| Size | 403.6 mm × 173.8 mm × 170 mm |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) |
| Operating Humidity | <95% |
| Waterproof / Dustproof | IP54 |
