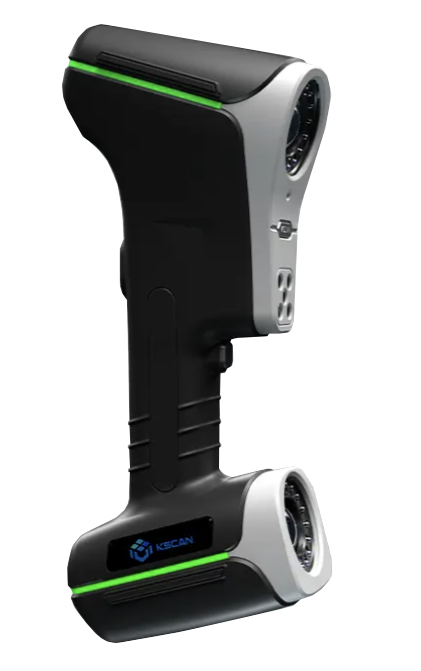

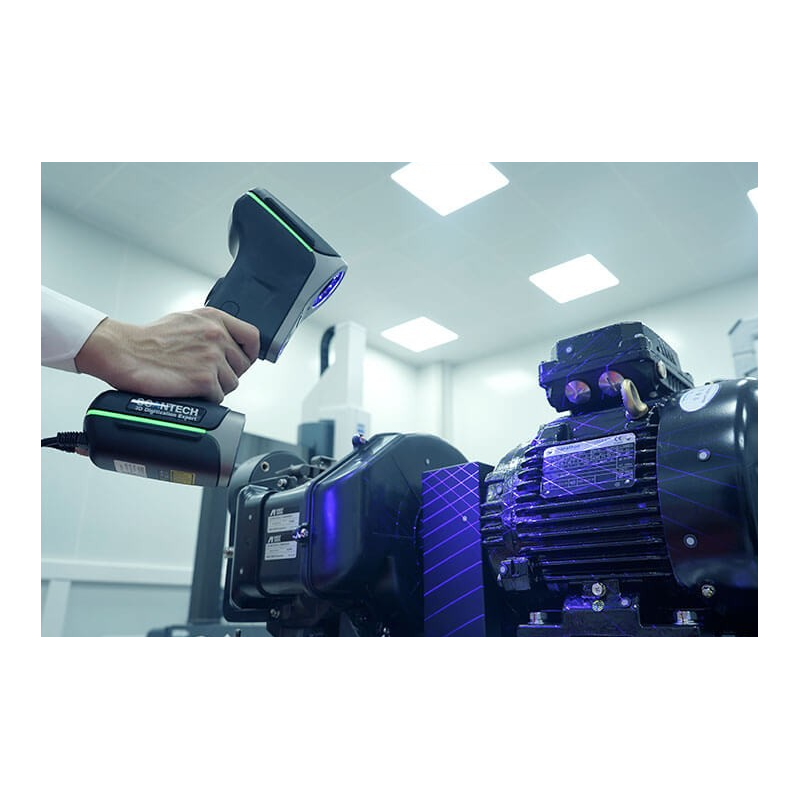

KSCAN-Magic™ – Next-Generation Metrology-Grade 3D Scanner

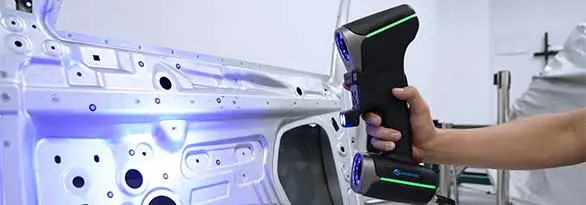

Versatile Metrology for Every Scanning Challenge
The KSCAN-Magic combines blue laser, infrared laser, and built-in photogrammetry to deliver exceptional accuracy across a wide range of part sizes. Designed for professional metrology, it provides flexible scanning modes for everything from intricate details to large industrial components. :contentReference[oaicite:0]{index=0}
- Switch between multiple scanning modes for maximum versatility.
- Capture small details and large components with metrology-grade accuracy.
- Improve large-scale measurements using integrated photogrammetry.
- Scan reflective, dark, and complex surfaces with confidence.
- Support quality inspection, reverse engineering, product development, and industrial manufacturing.

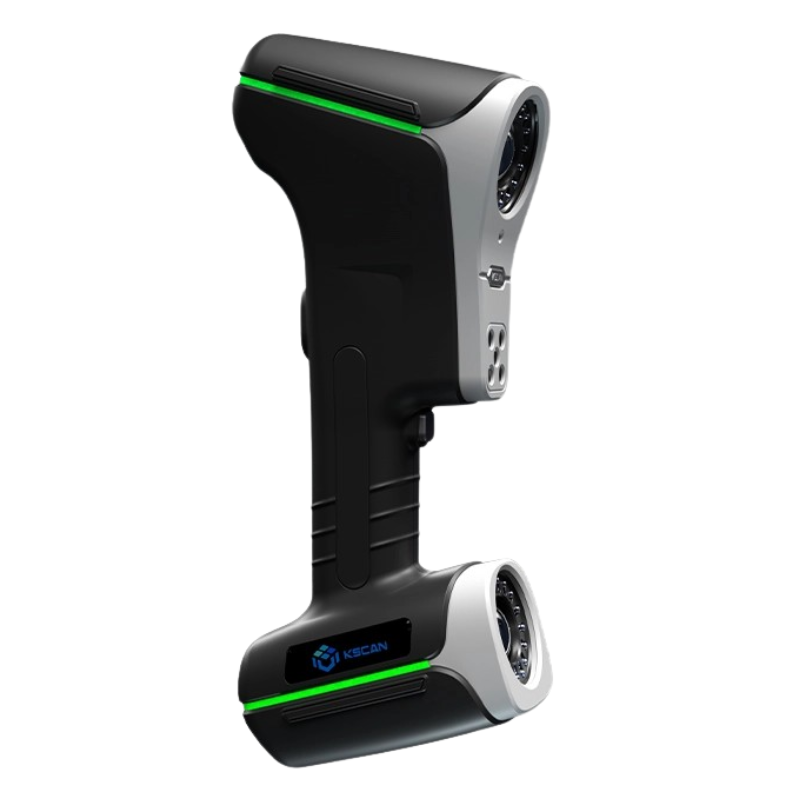

KSCAN - Magic
Composite 3D Scanner
KSCAN-Magic Upgrade Series, the cutting-edging composite 3D scanner that integrates infrared and blue lasers in one versatile instrument, caters to diverse applications.
This composite 3D scanner boasts five standard operating modes: large-area scanning with parallel infrared lasers, ultra-fast scanning with blue laser crosses, hyperfine scanning with blue parallel lasers, deep-hole scanning with a single blue laser, and a built-in large-area photogrammetry system.
Our innovative 3D scanner series incorporates a multi-spectrum 3D scanning and calibration technique, combining exceptional efficiency and uncompromising accuracy. It features fast scanning speed, high accuracy, great detail capturing, large scanning area, and extended depth-of-field that greatly optimize the 3D measurement workflows and accelerate the product time-to-market.
Five Modes at Your Fingertips
Large area scanning
KSCAN-Magic innovatively adopts large-area scanning powered by 11 infrared parallel laser lines. Its ultimate scanning area reaches 1440 mm x 860 mm, achieveing wide-range measurement with ease.

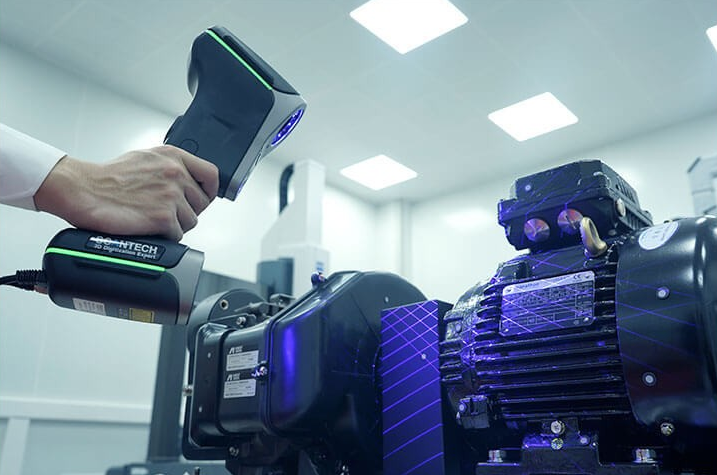

Ultra-fast scanning
It can 3D scan with 17 blue laser crosses and capture up to 4.150.000 measurements per second, greatly improving work efficiency.
Built in Large-area Photogrammetry
The built-in infrared photogrammetry system, with a shootingarea of 3760 mm x 3150 mm, can efficiently reduce the accumulated errors caused by large-sized measurements, ensuring volumetric accuracy. It is especially suitable for scanning large-sized objects, and measuring efficiently without compromising on accuracy.
Hyperfine scanning
With 7 parallel blue laser lines, KSCAN-Magic Upgrade Series 3D scanner can acuurately obtain complete data complex objects, easily capturing every detail with a maximum resolution of 0.010 mm.
Deep hole scanning
This mode can accurately capture 3D data of deep holes and hard to reach areas.

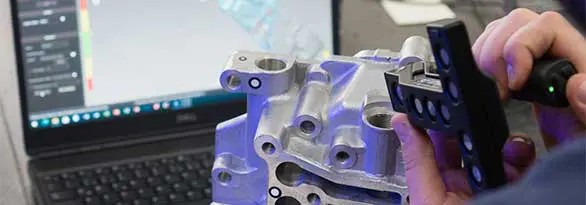

Intelligent edge inspection
It boasts an optional module for intelligent edge inspection. With high-precision gray value measurement, users can inspect closed features precisely and obtain repeatable measurement results.
Contact probing
It can be paired with a portable CMM K-Probe to probe inaccessible areas and complex parts, offering comprehensive and precise 3D solutions.

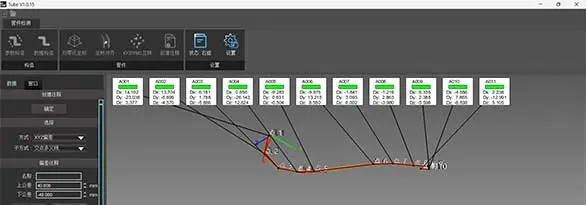

Pipe measurement
Thanks to KSCAN-Magic’s various operating modes, it is capable of 3D scanning pipes of different sizes and materials. When combined with optional software, it can conduct reverse engineering and inspection for pipes.

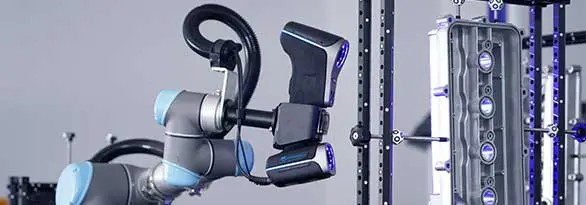

Automated 3D system
It can be paired with Scantech’s automated 3D inspection system, enabling effortless deployment and intelligent control to conduct automated batch inspections.

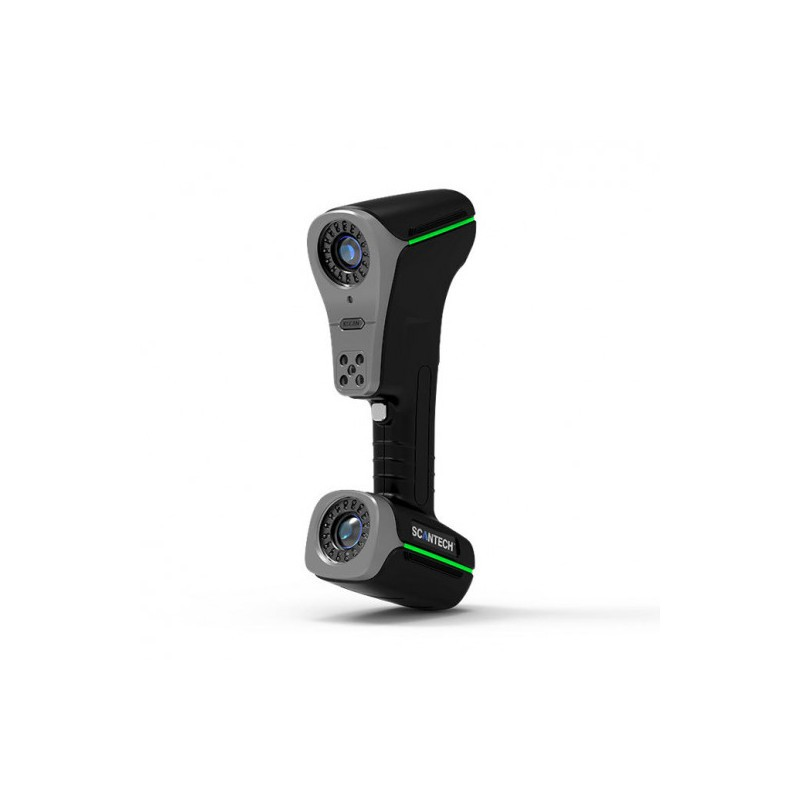

KSCAN-Magic 3D Laser Scanner
Technical Specifications
Large-Area Industrial 3D Scanning System
| Type | KSCAN-Magic |
| Ultra-fast Scanning | 11 Blue Laser Crosses |
| Hyperfine Scanning | 7 Parallel Blue Laser Lines |
| Large Area Scanning | 11 Parallel Infrared Laser Lines |
| Deep Hole Scanning | 1 Additional Blue Laser Line |
| Accuracy (1) | Up to 0.020 mm |
| Scanning Rate | 2,700,000 measurements/s |
| Scanning Area | 1440 mm × 860 mm |
| Laser Class | CLASS II (Eye-safe) |
| Resolution | Up to 0.010 mm |
| Photogrammetry System – Scanning Area | 3760 mm × 3150 mm |
| Photogrammetry System – Depth of Field | 2500 mm |
| Volumetric Accuracy (Standalone) | 0.015 mm + 0.030 mm/m |
| Volumetric Accuracy (with 1 m Reference Bar) | 0.015 mm + 0.020 mm/m |
| Volumetric Accuracy (with MSCAN-L15) | 0.015 mm + 0.012 mm/m |
| Stand-off Distance | 300 mm |
| Depth of Field | 925 mm |
| Output Formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk etc. |
| Operating Temperature Range | -10°C – 40°C |
| Interface Mode | USB 3.0 |
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
*Specifications are subject to change without prior notice.
