Matterport Pro3 As-Built Capture Bundle for Building Documentation
- Professional solution for building reality capture
- Improves accuracy in site verification tasks
- Enables reliable digital asset documentation
- Optimized for architecture and engineering teams
- Simplifies data collection for project planning
Pro3 As-Built Capture Bundle
Ultra-fast, high-precision lidar sensor takes millions of measurements per scan
Incredible precision and performance:
Render large-scale projects at a high level of precision (+/- 20mm @10m) and create high-fidelity digital twins (100K points per second)
Completes each sweep in <20 seconds
Removable, rechargeable battery allows for continuous scanning until the job is done
High-density scanning for more detailed point clouds:
Standard, medium, and high-density scanning options to achieve the desired level of accuracy for each job
Higher-fidelity point clouds that can be accessed as e57 files for smoother integration with Autodesk, Procore, and other design and construction software
Preservation of ultrafine details for more accurate recording keeping or workflows requiring a high level of visual precision
Increase scanning efficiency with included accessories:

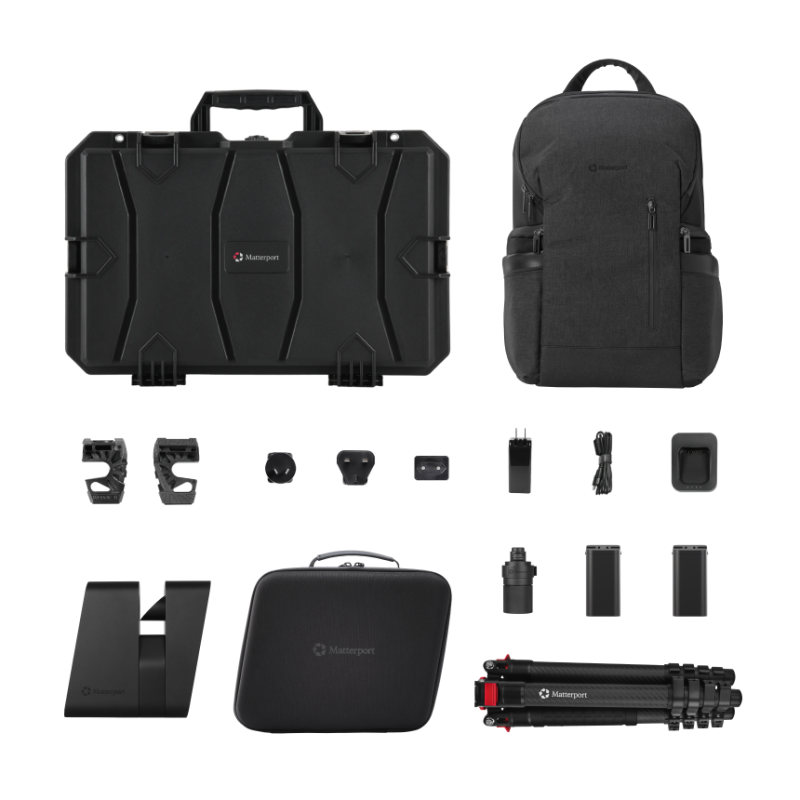

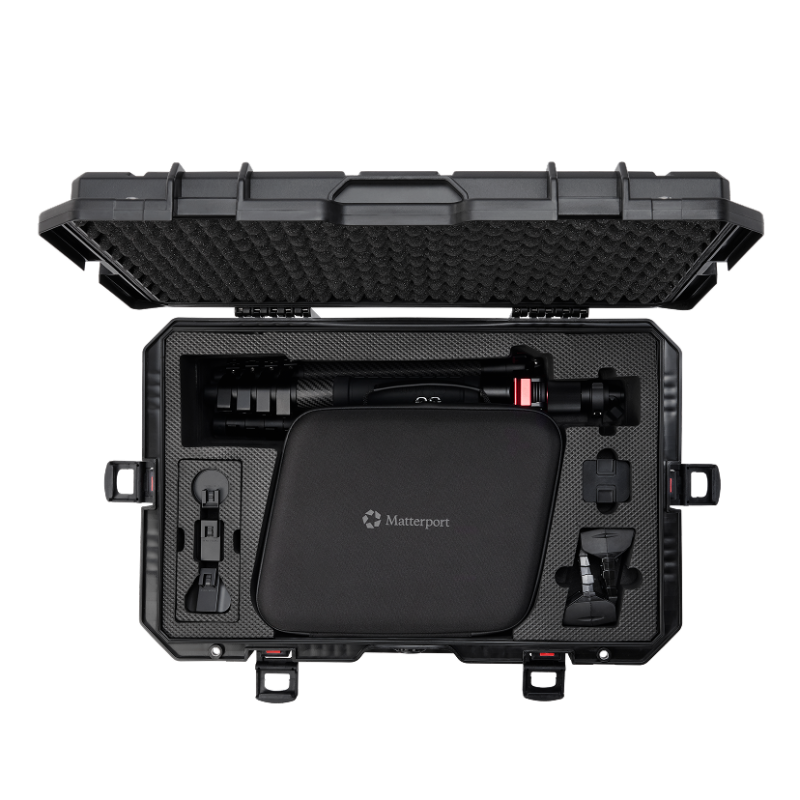

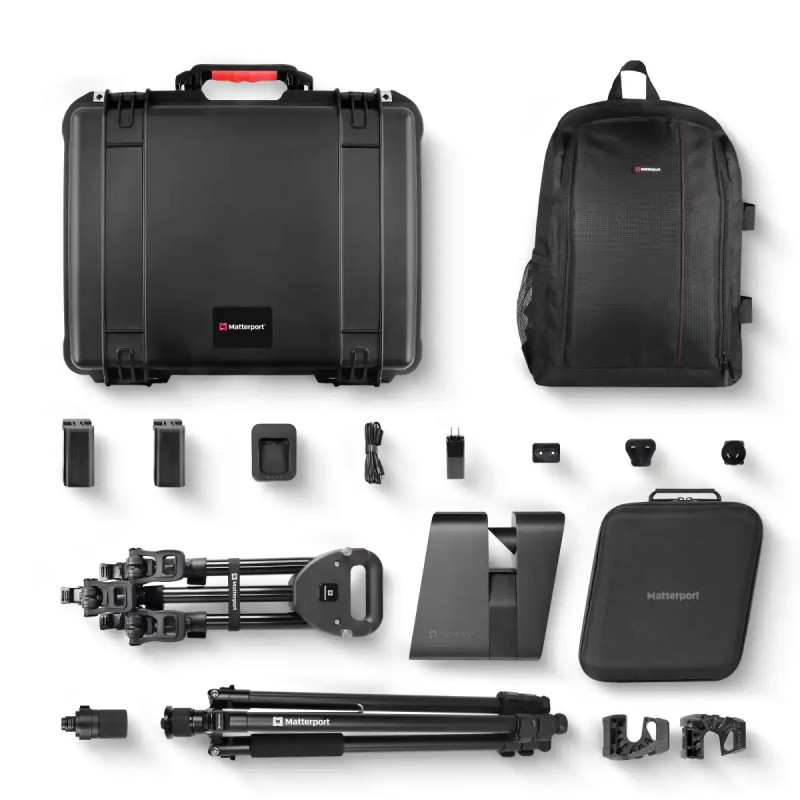

The Pro3 Performance Kit is ideal for professionals who need to capture large spaces quickly and ships with the following included in the box: two removable batteries, battery charging kit, quick-release tripod mount, tripod, wheeled dolly, two door stops, small hard case, and backpack.
Get the most from Pro3:
Pro3 full product details
This camera pairs with iOS or Android devices running the Matterport Capture app
This camera works best with a Matterport Professional or Business subscription plan and is not compatible with a Free or Starter plan - find the right plan for your needs
No need to worry - Matterport offers 30-day hassle-free returns on all hardware purchases
Pro3 As-Built Capture Bundle
| Depth Technology | Lidar |
| Laser | Class 1 (in accordance with IEC 60825-1:2014) |
| Wavelength | 904nm |
| Field of View | 360° H / 295° V |
| Accuracy | +/- 20mm @10m |
| Depth Resolution | 100k points per second Up to 1.5M points per scan |
| Min Operating Range | 0.5m |
| Max Operating Range | Up to 100m (only available with E57) |
| 3D Data Registration | Automatic |
Technology & Laser
Lidar / Class 1 (IEC 60825-1:2014), 904nm wavelength
Field of View & Accuracy
360° H / 295° V | Accuracy: +/- 20mm @10m
Depth Resolution
100k points/s (Up to 1.5M points per scan)
Operating Range
Min: 0.5m / Max: Up to 100m (only available with E57)
3D Data Registration
Automatic
| Output Pano Pixels | 134.2 MP |
| Number of exposures per HDR frame | 5 |
| White Balance | Automatic, full model |
Pano Pixels
134.2 MP output
HDR Exposures
5 exposures per HDR frame
White Balance
Automatic, full model
| Capture Speed | <20 seconds per scan |
| Camera Boot Time | <40 seconds |
| Remote Operation | Matterport App on Apple or Android mobile devices |
| Wireless Communication | BLE to setup WiFi connection WiFi 802.11 5GHz (2.4GHz through channel cycling) communication with mobile device running Matterport App |
Speed & Boot
Capture: <20s per scan | Boot Time: <40s
Remote Operation
Matterport App (iOS / Android)
Wireless Communication
BLE for setup, WiFi 802.11 5GHz (or 2.4GHz) for App communication
| Dimensions | 181mm x 161.4mm x 76mm |
| Weight | 2.2 kg |
| Battery | >220 scans assuming continuous, consecutive scans |
| Battery Charge Time | 2.5 hours 80% charge 3.5 hours 100% charge |
| Battery Weight | 258 grams |
| Battery Capacity | 45.36 Wh 4 cells per battery |
| Mounting Mechanism | Quick release tripod mount; Female 3/8-16 thread |
| GPS | Included |
Dimensions & Weight
181mm x 161.4mm x 76mm | 2.2 kg
Battery Performance
>220 consecutive scans | 45.36 Wh (4 cells, 258g)
Charge Time
80%: 2.5 hours | 100%: 3.5 hours
Mount & GPS
Quick release tripod mount, 3/8-16 thread | GPS included
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Ingress Protection | IP43 |
Temperatures
Operating: 0°C to 40°C | Storage: -20°C to 60°C
Ingress Protection
IP43 standard
