Precision Wire EDM Machining for Industrial Manufacturing

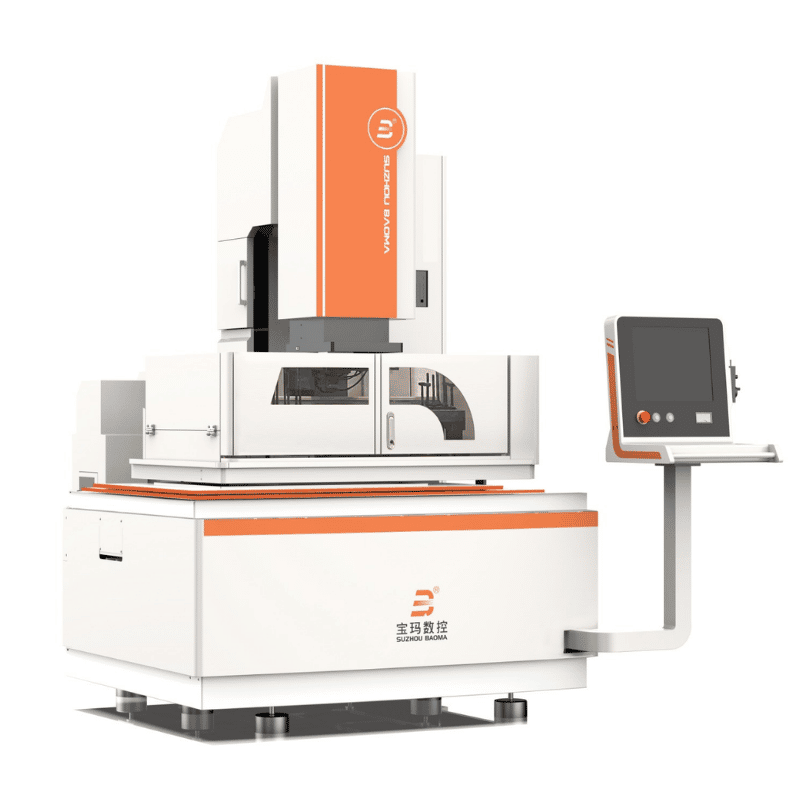

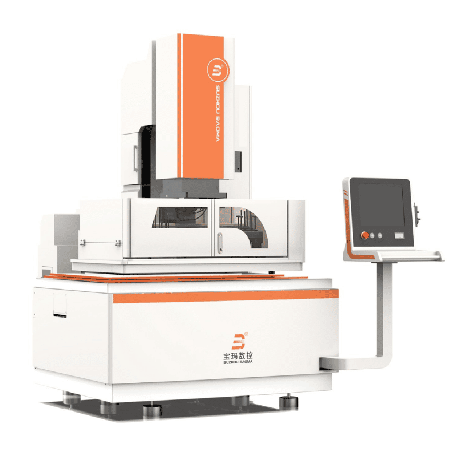

CNC Molybdenum Wire Cut EDM Machine
The NCT BMA-630D is a CNC molybdenum Wire Cut EDM machine designed for precision industrial machining applications. Its advanced cutting system and stable machine structure support accurate and reliable industrial production workflows.
Large Working Area for Industrial Components
The machine features a spacious working area with 630 × 500 mm X/Y travel designed to support machining of large industrial workpieces and complex components requiring stable wire EDM performance.
High-Speed Wire EDM Machining Performance
The BMA-630D delivers high machining efficiency with cutting speeds up to 350 mm²/min, supporting fast and precise industrial wire EDM operations for demanding manufacturing environments.
Precision Surface Finish Capability
Designed for precision industrial applications, the machine achieves surface roughness up to 0.6 μm, ensuring accurate machining results and high-quality surface finishing for complex components.
Stable Machine Structure and Industrial Reliability
Built with a rigid machine frame and optimized mechanical structure, the BMA-630D provides stable machining conditions, reduced vibration, and reliable long-term industrial performance.
High Workpiece Capacity for Industrial Production
The machine supports workpiece weights up to 800 kg, making it suitable for large industrial parts, tooling applications, and demanding manufacturing operations.
Optimized for Continuous Industrial Operation
Developed for modern industrial manufacturing environments, the NCT BMA-630D combines precision wire EDM technology, stable cutting performance, and efficient machining capability to support continuous industrial production workflows.
Technical Specifications
Working Area |
|
|---|---|
Axis Travel X, Y |
630 mm |
Axis Travel X, Y |
500 mm |
Axis travel Z |
500 mm |
Axis travel U,V |
50 x 50 mm |
Max. workpiece weight |
800 kg |
Wire Diameter Range |
1 mm |
Molibden Wirecut Machines |
|
Table size |
900 x 600 mm |
Table travel |
630 x 500 mm |
Max. workpiece thickness |
500 mm |
Max. taper angle / plate thickness |
±6 / 100 ° / mm |
Max. maching speed |
350 mm²/min |
Max. working current |
12 A |
Roughness |
0.6 um |
Wire travelling speed |
350 m/min |
Load of table |
800 kg |
Working solution |
Clean working fluid |
Working reservoir capacity |
100 L |
Power supply |
3N-380V/50Hz |
Power consumption |
2 KVA |
Installation |
|
Required floor space x height |
2100 x 2200 x 2400 mm |
Net machine weight |
2300 kg |
Next-generation NCT CNC controllers
Next-generation NCT CNC controllers deliver precise and efficient control for CNC machining applications. Designed for flexibility, NCT controllers support conversational programming, CAM software integration, and traditional G-code programming. Advanced features also help monitor machine performance and optimize operation, ensuring consistently high precision, reliability, and productivity.
.png)
myNCT – Conversational programming for CNC machines
myNCT is a user-friendly conversational CNC programming software designed to simplify and speed up machining workflows. Its intuitive interface makes programming accessible for both beginners and experienced operators, allowing users to achieve professional results with minimal training.
Key features of myNCT CNC programming software:
-3+2-axis milling for fast and precise machining of complex geometries
-Free-form contour pocket machining with high flexibility for intricate shapes
-Simple milling cycles for quick programming of common machining operations
-Thread milling for accurate thread production across various materials
-Automated drilling cycles to improve efficiency and productivity
-Driven-tool milling capabilities for combined milling and turning operations
-Turning cycles for precise grooving, threading, and turning applications
3D Solid Model Graphics – Accuracy and efficiency in CNC controllers
3D solid model graphics in CNC controllers provide an advanced solution for real-time visualization and verification of machining processes. This technology helps operators:
-Detect CNC programming errors before machining
-Prevent potential collisions and machine damage
-Monitor the workpiece and machining progress with high accuracy
-Improve productivity, reduce material waste, and maintain consistently high manufacturing quality
Machine Construction and Key Features
-Rigid cast iron bed, column, and slides for maximum stability
-Semi or fully enclosed splash guard for improved operator safety
-Precision linear guideways with ball or roller type bearings on all axes
-Central oil-lubricated slide system with telescopic metal guideway covers
-Belt-driven spindle designed for reliable high-speed machining
-40 spindle taper compatible with DIN or BT tooling systems
-Digital oil cooler for headstock thermal stabilization
-Compressed air spindle protection and automatic taper cleaning
-High-precision ground double nut ball screws
-Pretensioned ball screws supported on both ends for rigidity
- Three colour status lamp
-Drum type tool magazine with arm type ATC system
-Fast and reliable automatic tool changing process
-Designed for efficient production workflows
-Stable tool handling during high-speed machining operations
-NCT 304 Smart Touch CNC with intuitive touchscreen interface
-EnDat 2.2 absolute measuring system for precise positioning
-0.00005 mm positioning resolution with nano interpolation
-Advanced CNC control optimized for industrial machining applications
-Smooth and accurate axis movement under demanding workloads
-Optimized mechanical structure for long-term positioning accuracy
-Spindle bearing protection by compressed air
