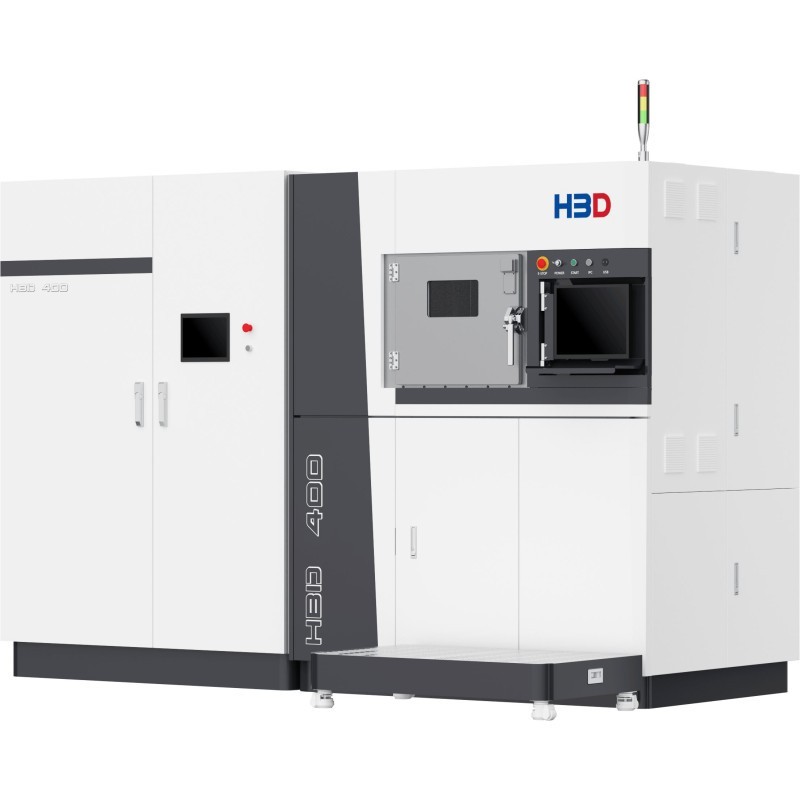

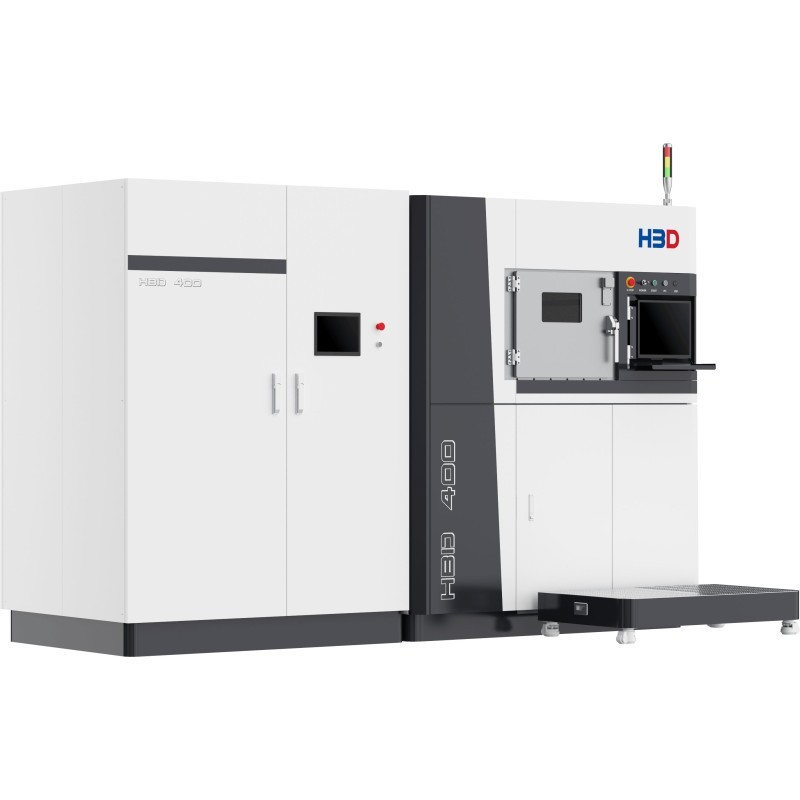

HBD 400 SLM Metal 3D Printer
- Industrial-grade metal 3D printer designed for demanding production environments.
- Advanced LPBF technology delivers dense, accurate, and durable metal parts.
- Supports complex geometries and efficient batch manufacturing.
- Compatible with stainless steel, titanium alloys, aluminum alloys, cobalt-chrome, and tool steels.
- Intelligent process monitoring ensures stable and repeatable print quality.
HBD 400 SLM Metal 3D PRINTER
Precision Redefined in Metal 3D Printing
WHY HBD 400?
High Productivity Configuration
Six precise 500W/1000W fibre lasers operate, intelligent variable speed design and bidirectional
re-coater completing the process in 3 seconds, coupled with a large building volume of
350mm×400mm×400mm, this results in an efficient solution for scaled production.
Long-lasting Filtration System
The filtration system utilizes next-generation PTFE-coated filter elements, meeting H13 standards with a capture efficiency of up to 99.9%, capable of trapping particles as small as 0.3μm. The filter includes self-cleaning features, providing a filter element lifetime of over 5 years. Optimized gas-flow configuration enables secure and efficient waste reclamation in inert gas environments, ensuring optimal printing conditions.
Precision Laser Calibration System
Seamless multi-beam laser stitching, the HBD 400 automatic laser calibration system enables an
automatic scanning strategy tailored to the process conditions, with a calibration accuracy up to
0.05 mm, enhancing process stability and part quality.
3D Print Cases
The production of charger plug terminal utilizing HBD 400 metal AM system achieves integrated forming of multiple
stacked parts with 6 synchronized lasers. The output reaches 19.2 pieces per hour, which is three times more efficient
than dual-laser systems. Rapid prototyping speeds up the development cycle without additional tooling costs, making
small batch production more cost-effective.
Hydraulic Manifold
Industry: 3C Electronics
Material: 316L
Size: 24×23×15mm
Weight: 4.8g
Quantity: 444
Time: 23h 54min
| Parameter | Specification |
|---|---|
| Build Volume | 350mm × 400mm × 400mm (height incl. build plate) |
| Laser Power |
2 Lasers, 500W/1000W 4 Lasers, 500W/1000W 6 Lasers, 500W/1000W |
| Layer Thickness | 20μm–120μm |
| Scanning Track Width | 70μm–200μm |
| Scanning Speed | ≤10m/s |
| Oxygen Content | ≤100ppm |
| Protective Atmosphere | Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05–0.2mm |
| Metal Powder | Titanium alloys, aluminum alloys, stainless steel, mold steel, superalloys, copper alloys, etc. |
| Process Parameter Configuration | Tailored Parameter Set For The Specific Application, User-Modifiable |
| Weight | Est. 3300kg |
| External Dimensions | 1900mm × 1650mm × 2300mm |
| Power Supply |
500W: AC380V, 50/60Hz, peak power ≤14–16kW, average power ≤5.5–8.5kW 1000W: AC380V, 50/60Hz, peak power ≤15–19kW, average power ≤6.5–11.5kW |
