F-TURN-1600/1000 CNC Flat Bed Lathe
- Rigid flat bed CNC lathe for industrial turning applications
- 1000 mm turning length with stable machining performance
- Box type guideways for improved rigidity and durability
- 5000 RPM spindle with belt-driven transmission system
- Reliable CNC turning solution for precision metalworking
Precision CNC Turning for Heavy Industrial Applications
Heavy-Duty CNC Flat Bed Turning Machine

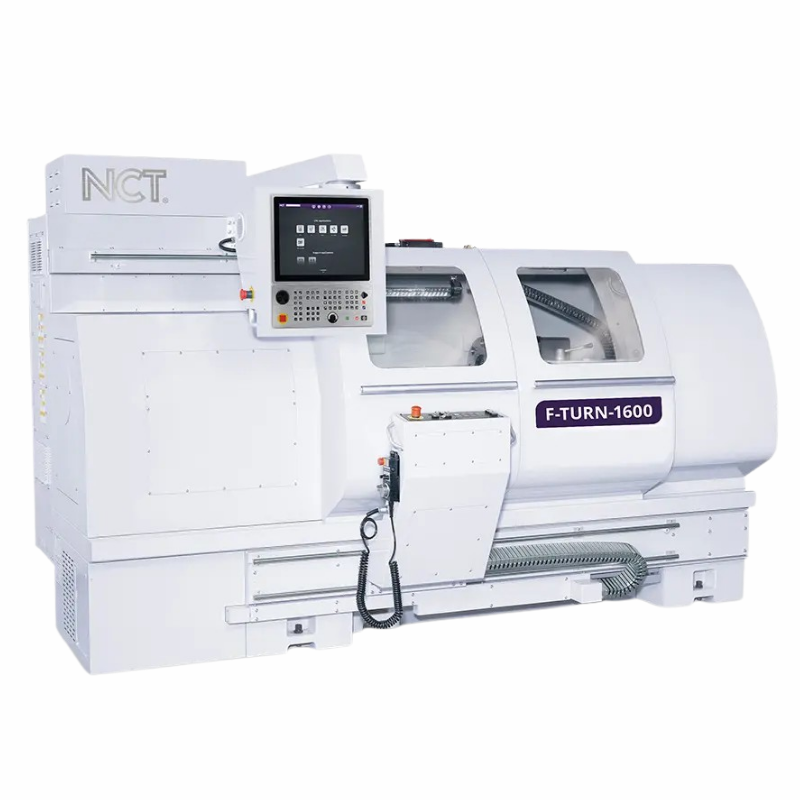

The NCT F-TURN 1600×1000 is a heavy-duty CNC flat bed turning machine engineered for large workpieces, stable machining performance, and industrial reliability. Its robust machine construction and high-torque spindle system make it suitable for demanding turning applications in industrial manufacturing environments.
Rigid Box-Type Guideway Construction
Built with box-type guideways and a reinforced machine structure, the F-TURN 1600×1000 delivers excellent rigidity, vibration absorption, and machining stability during heavy-duty turning operations. The durable machine frame supports accurate machining and long-term industrial performance.
Large Capacity Turning Area
The machine offers a maximum swing diameter over bed of 1600 mm, a maximum swing diameter over cross slide of 1000 mm, and a distance between centers of 1000 mm. Its spacious turning capacity supports machining of large industrial components and heavy workpieces.
Powerful Gearbox-Driven Spindle System
Equipped with a gearbox-driven spindle system, the F-TURN 1600×1000 provides reliable torque delivery and stable cutting performance for demanding machining tasks. The spindle system includes an A2-15 spindle nose, 130 mm spindle bore diameter, and spindle speeds up to 800 RPM.
Hydraulic Turret for Efficient Machining
The machine features a hydraulic turret tooling system with 4 tool positions designed for reliable and efficient machining workflows. The optimized tooling configuration improves productivity and supports stable industrial turning operations.
Industrial-Grade Spindle Motor Performance
The F-TURN 1600×1000 integrates a powerful 22 kW spindle motor combined with an oil cooler system to maintain stable machining conditions during continuous production. The optimized cooling system improves spindle reliability and long-term industrial performance.
Optimized for Continuous Industrial Operation
Designed for industrial manufacturing environments, the F-TURN 1600×1000 offers stable machine performance, ergonomic operator access, and durable industrial components. Its heavy-duty construction and optimized machine layout simplify maintenance and support reliable everyday production workflows.
Technical Specifications
Working Area |
|
|---|---|
Max. swing diameter over bed |
425 mm |
Max. swing diameter over gap |
660 mm |
Max. swing diameter over cross slide |
190 mm |
Max. turning length |
1000 mm |
Distance between centers |
1000 mm |
Recommended chuck diameter |
6" |
Axis |
|
Type of Guideway |
Box type guideways |
X stroke/travel |
260 mm |
Z stroke/travel |
1180 mm |
X / Z rapid travel speed |
15 m/min |
Spindle |
|
Max. RPM |
5000 RPM |
Spindle nose |
A2-5 |
Spindle bore diameter |
46 mm |
Driven by |
Belt |
Number of ranges |
1 |
Spindle Motor |
|
Spindle motor torque |
7 Nm |
Spindle motor power (optional) |
11 kW |
Cooling |
Air |
Tailstock |
|
Quill diameter / stroke |
65 / 150 mm |
Quill / tailstock operation |
Manual / Manual |
Size of internal taper |
MT4 |
Tooling |
|
Tool change |
Quick change tool holder / turret head |
Tooling |
Bolt-on / VDI30 |
Number of driven tools (option) |
1 pc |
Installation |
|
Floor space x height |
3030 × 1952 × 2022 mm |
Netto machine weight |
2400 kg |
Electrical connection |
3 × 400 V AC VA |
Next-generation NCT CNC controllers
Next-generation NCT CNC controllers deliver precise and efficient control for CNC machining applications. Designed for flexibility, NCT controllers support conversational programming, CAM software integration, and traditional G-code programming. Advanced features also help monitor machine performance and optimize operation, ensuring consistently high precision, reliability, and productivity.
.png)
myNCT – Conversational programming for CNC machines
myNCT is a user-friendly conversational CNC programming software designed to simplify and speed up machining workflows. Its intuitive interface makes programming accessible for both beginners and experienced operators, allowing users to achieve professional results with minimal training.
Key features of myNCT CNC programming software:
-3+2-axis milling for fast and precise machining of complex geometries
-Free-form contour pocket machining with high flexibility for intricate shapes
-Simple milling cycles for quick programming of common machining operations
-Thread milling for accurate thread production across various materials
-Automated drilling cycles to improve efficiency and productivity
-Driven-tool milling capabilities for combined milling and turning operations
-Turning cycles for precise grooving, threading, and turning applications
3D Solid Model Graphics – Accuracy and efficiency in CNC controllers
3D solid model graphics in CNC controllers provide an advanced solution for real-time visualization and verification of machining processes. This technology helps operators:
-Detect CNC programming errors before machining
-Prevent potential collisions and machine damage
-Monitor the workpiece and machining progress with high accuracy
-Improve productivity, reduce material waste, and maintain consistently high manufacturing quality
Machine Construction and Key Features
-Rigid cast iron bed, column, and slides for maximum stability
-Semi or fully enclosed splash guard for improved operator safety
-Precision linear guideways with ball or roller type bearings on all axes
-Central oil-lubricated slide system with telescopic metal guideway covers
-Belt-driven spindle designed for reliable high-speed machining
-40 spindle taper compatible with DIN or BT tooling systems
-Digital oil cooler for headstock thermal stabilization
-Compressed air spindle protection and automatic taper cleaning
-High-precision ground double nut ball screws
-Pretensioned ball screws supported on both ends for rigidity
- Three colour status lamp
-Drum type tool magazine with arm type ATC system
-Fast and reliable automatic tool changing process
-Designed for efficient production workflows
-Stable tool handling during high-speed machining operations
-NCT 304 Smart Touch CNC with intuitive touchscreen interface
-EnDat 2.2 absolute measuring system for precise positioning
-0.00005 mm positioning resolution with nano interpolation
-Advanced CNC control optimized for industrial machining applications
-Smooth and accurate axis movement under demanding workloads
-Optimized mechanical structure for long-term positioning accuracy
-Spindle bearing protection by compressed air
