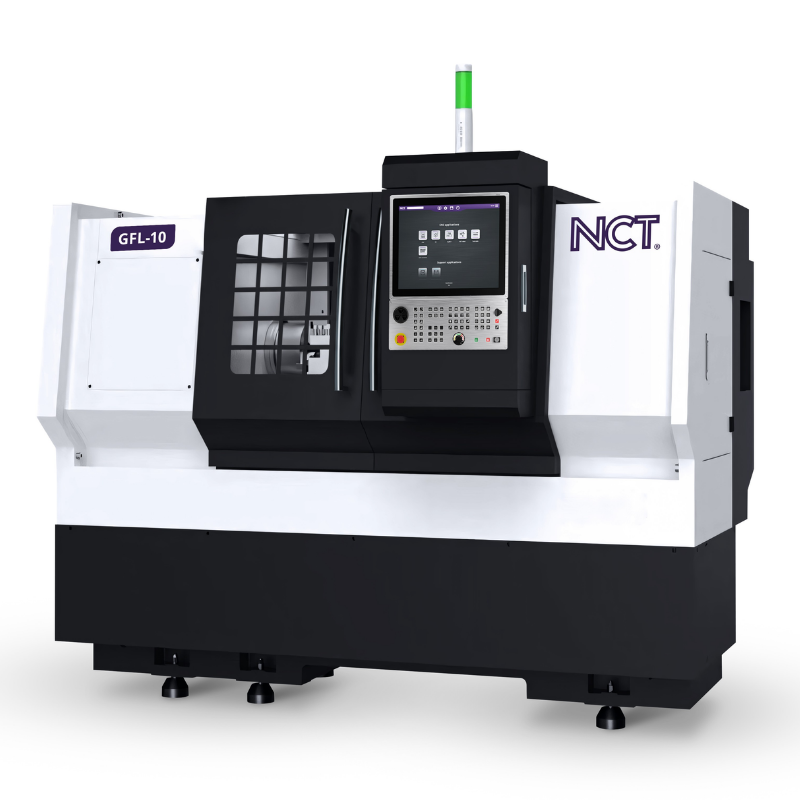

NCT GFL-10 Industrial CNC Lathe
- Compact CNC lathe for precision industrial machining
- Rigid machine construction for stability and vibration reduction
- High-speed spindle system for improved productivity
- Optimized configuration for continuous production environments
- Intelligent CNC control for enhanced efficiency and accuracy
Compact CNC Turning for Industrial Production
High-Performance CNC Turning Machine
The NCT GFL-10 is a compact CNC turning machine engineered for precision machining, industrial reliability, and efficient production workflows. Its rigid machine structure and advanced CNC technology ensure stable machining performance for demanding industrial applications.
Rigid Machine Structure for Stable Machining
The GFL-10 is built with a rigid machine frame and precision mechanical components designed for stable and accurate turning operations. Its durable construction minimizes vibration, improves machining stability, and supports reliable long-term industrial performance.
High-Speed Spindle System for Precision Turning
Equipped with a high-speed spindle system, the GFL-10 delivers stable cutting performance and precise machining results across a wide range of turning applications. The optimized spindle design supports continuous industrial production and reliable operation.
Efficient Tooling Configuration for Fast Machining
The machine features an optimized tooling configuration designed for efficient turning cycles and reduced downtime. Its compact layout improves machining productivity and supports fast, reliable industrial manufacturing workflows.
Advanced CNC Control System
The GFL-10 integrates the advanced NCT Smart Touch CNC controller with intuitive touchscreen operation, conversational programming, and CAM software compatibility. The intelligent CNC system improves workflow efficiency, machining precision, and process control.
Optimized for Continuous Industrial Operation
Designed for industrial manufacturing environments, the GFL-10 offers ergonomic operator access, compact floor space requirements, and an optimized machine layout for safe and efficient operation. Its practical design simplifies maintenance and everyday production tasks.
Industrial-Grade Reliability and Protection
The machine includes centralized lubrication, industrial-grade machine components, and optimized protection systems to ensure dependable long-term operation. Advanced maintenance and safety features support stable machining performance and reduced service requirements.
.png)
Technical Specifications
Working Area |
|
|---|---|
Max. swing diameter over bed |
560 mm |
Max. swing diameter over cross slide |
300 mm |
Max. turning length |
750 mm |
Distance between centers |
750 mm |
Recommended chuck diameter |
6" |
Axis |
|
Type of Guideway |
Box type guideways |
X stroke/travel |
300 mm |
Z stroke/travel |
750 mm |
X / Z rapid travel speed |
10 m/min |
Spindle |
|
Max. RPM |
3000 RPM |
Spindle nose |
A2-8 |
Spindle bore diameter |
74 mm |
Driven by |
Belt |
Number of ranges |
1 |
Spindle Motor |
|
Spindle motor power |
7 kW |
Cooling |
Air |
Tailstock |
|
Quill diameter / stroke |
75 / 190 mm |
Quill / tailstock operation |
Manual / Manual |
Size of internal taper |
MT5 |
Tooling |
|
Tool change |
Quick Change Tool post, Multifix B / Turret |
Installation |
|
Floor space x height |
2410 x 1570 x 1710 mm |
Netto machine weight |
2500 kg |
Electrical connection |
3 × 400 V AC VA |
Next-generation NCT CNC controllers
Next-generation NCT CNC controllers deliver precise and efficient control for CNC machining applications. Designed for flexibility, NCT controllers support conversational programming, CAM software integration, and traditional G-code programming. Advanced features also help monitor machine performance and optimize operation, ensuring consistently high precision, reliability, and productivity.
.png)
myNCT – Conversational programming for CNC machines
myNCT is a user-friendly conversational CNC programming software designed to simplify and speed up machining workflows. Its intuitive interface makes programming accessible for both beginners and experienced operators, allowing users to achieve professional results with minimal training.
Key features of myNCT CNC programming software:
-3+2-axis milling for fast and precise machining of complex geometries
-Free-form contour pocket machining with high flexibility for intricate shapes
-Simple milling cycles for quick programming of common machining operations
-Thread milling for accurate thread production across various materials
-Automated drilling cycles to improve efficiency and productivity
-Driven-tool milling capabilities for combined milling and turning operations
-Turning cycles for precise grooving, threading, and turning applications
3D Solid Model Graphics – Accuracy and efficiency in CNC controllers
3D solid model graphics in CNC controllers provide an advanced solution for real-time visualization and verification of machining processes. This technology helps operators:
-Detect CNC programming errors before machining
-Prevent potential collisions and machine damage
-Monitor the workpiece and machining progress with high accuracy
-Improve productivity, reduce material waste, and maintain consistently high manufacturing quality
Machine Construction and Key Features
-Rigid cast iron bed, column, and slides for maximum stability
-Semi or fully enclosed splash guard for improved operator safety
-Precision linear guideways with ball or roller type bearings on all axes
-Central oil-lubricated slide system with telescopic metal guideway covers
-Belt-driven spindle designed for reliable high-speed machining
-40 spindle taper compatible with DIN or BT tooling systems
-Digital oil cooler for headstock thermal stabilization
-Compressed air spindle protection and automatic taper cleaning
-High-precision ground double nut ball screws
-Pretensioned ball screws supported on both ends for rigidity
- Three colour status lamp
-Drum type tool magazine with arm type ATC system
-Fast and reliable automatic tool changing process
-Designed for efficient production workflows
-Stable tool handling during high-speed machining operations
-NCT 304 Smart Touch CNC with intuitive touchscreen interface
-EnDat 2.2 absolute measuring system for precise positioning
-0.00005 mm positioning resolution with nano interpolation
-Advanced CNC control optimized for industrial machining applications
-Smooth and accurate axis movement under demanding workloads
-Optimized mechanical structure for long-term positioning accuracy
-Spindle bearing protection by compressed air
