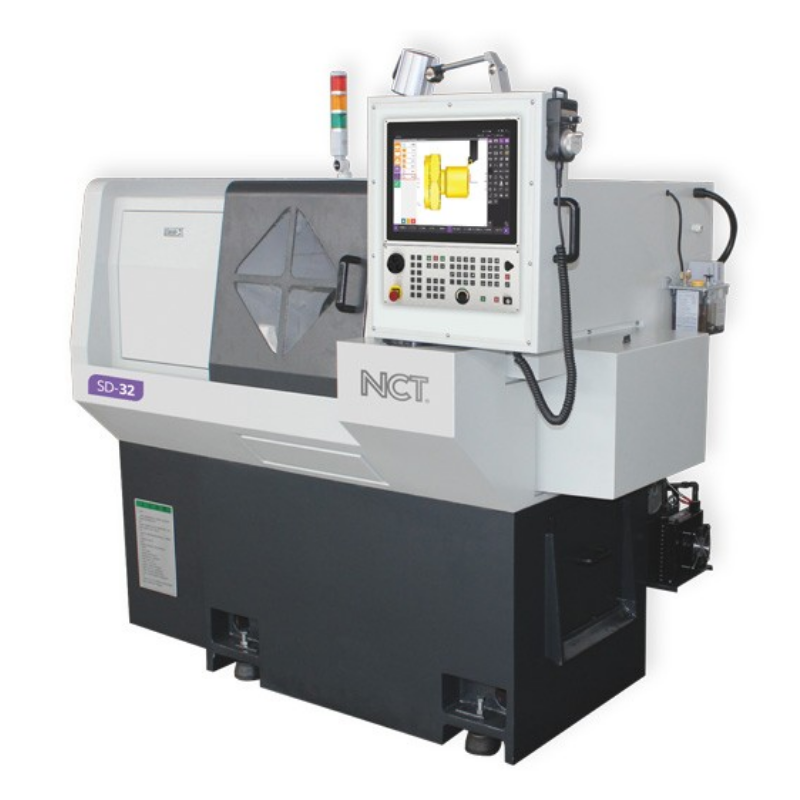

NCT SD-32 – Compact CNC Lathe for Precision Turning
- Compact CNC lathe designed for precision turning applications
- High-speed 6000 RPM spindle with belt-driven system
- Gang-type tooling configuration for fast machining cycles
- Linear guideway system for smooth and accurate movement
- NCT Smart Touch CNC controller for efficient industrial operation
Share on
Compact CNC Turning for Industrial Production
High-Precision CNC Turning Center
The NCT SD-32 is a compact CNC turning center engineered for precision machining, reliable industrial operation, and efficient production workflows. Its rigid machine construction and optimized turning technology provide stable and accurate machining performance for demanding manufacturing applications.
High-Speed Spindle System for Precision Turning
Equipped with a high-speed spindle system up to 6000 RPM, the SD-32 delivers stable cutting performance and precise machining results across a wide range of turning applications. The spindle system is optimized for continuous industrial production and reliable long-term operation.
Rigid Machine Structure for Stable Machining
Built with a heavy-duty cast iron machine structure, the SD-32 offers excellent vibration damping and machining stability during intensive turning operations. Precision linear guideways and high-accuracy ball screws ensure smooth axis movement and reliable positioning precision.
Efficient Gang-Type Tooling Configuration
The machine features a gang-type tooling layout designed for fast and efficient machining cycles. This compact tooling configuration minimizes tool change times, improves machining productivity, and supports high-speed industrial manufacturing applications.
Advanced CNC Control System
The SD-32 integrates the advanced NCT Smart Touch CNC controller with intuitive touchscreen operation, conversational programming, and CAM software compatibility. The intelligent CNC system improves machining accuracy, workflow efficiency, and process control.
Optimized for Continuous Industrial Operation
Designed for industrial manufacturing environments, the SD-32 offers ergonomic operator access, compact floor space requirements, and an enclosed machining area for safe and clean operation. Its optimized machine layout simplifies maintenance and everyday operation.
Industrial-Grade Reliability and Protection
The machine includes centralized lubrication, spindle protection systems, telescopic guideway covers, and industrial-grade machine components to ensure dependable long-term performance. Advanced safety and maintenance systems support stable operation and reduced service requirements.
Technical Specifications
Working Area |
|
|---|---|
Max. turning diameter |
100 mm |
Max. turning length |
100 mm |
Recommended chuck diameter |
4" |
Axis |
|
Type of Guideway |
Linear |
X stroke/travel |
200 mm |
Z stroke/travel |
200 mm |
X / Z rapid travel speed |
15 / 15 m/min |
Spindle |
|
Max. RPM |
6000 RPM |
Bar capacity |
32 mm |
Driven by |
Belt |
Spindle Motor |
|
Spindle motor power |
3.7 kW |
Cooling |
Air |
Tooling |
|
Tool change |
Gang type |
Number of driven tools (option) |
1 pc |
Maximum speed of tool |
4000 RPM |
Installation |
|
Floor space x height |
1850 x 1500 x 1700 mm |
Netto machine weight |
1700 kg |
Electrical connection |
3 x 400 VAC VA |
Next-generation NCT CNC controllers
Next-generation NCT CNC controllers deliver precise and efficient control for CNC machining applications. Designed for flexibility, NCT controllers support conversational programming, CAM software integration, and traditional G-code programming. Advanced features also help monitor machine performance and optimize operation, ensuring consistently high precision, reliability, and productivity.
.png)
myNCT – Conversational programming for CNC machines
myNCT is a user-friendly conversational CNC programming software designed to simplify and speed up machining workflows. Its intuitive interface makes programming accessible for both beginners and experienced operators, allowing users to achieve professional results with minimal training.
Key features of myNCT CNC programming software:
-3+2-axis milling for fast and precise machining of complex geometries
-Free-form contour pocket machining with high flexibility for intricate shapes
-Simple milling cycles for quick programming of common machining operations
-Thread milling for accurate thread production across various materials
-Automated drilling cycles to improve efficiency and productivity
-Driven-tool milling capabilities for combined milling and turning operations
-Turning cycles for precise grooving, threading, and turning applications
3D Solid Model Graphics – Accuracy and efficiency in CNC controllers
3D solid model graphics in CNC controllers provide an advanced solution for real-time visualization and verification of machining processes. This technology helps operators:
-Detect CNC programming errors before machining
-Prevent potential collisions and machine damage
-Monitor the workpiece and machining progress with high accuracy
-Improve productivity, reduce material waste, and maintain consistently high manufacturing quality
Machine Construction and Key Features
-Rigid cast iron bed, column, and slides for maximum stability
-Semi or fully enclosed splash guard for improved operator safety
-Precision linear guideways with ball or roller type bearings on all axes
-Central oil-lubricated slide system with telescopic metal guideway covers
-Belt-driven spindle designed for reliable high-speed machining
-40 spindle taper compatible with DIN or BT tooling systems
-Digital oil cooler for headstock thermal stabilization
-Compressed air spindle protection and automatic taper cleaning
-High-precision ground double nut ball screws
-Pretensioned ball screws supported on both ends for rigidity
- Three colour status lamp
-Drum type tool magazine with arm type ATC system
-Fast and reliable automatic tool changing process
-Designed for efficient production workflows
-Stable tool handling during high-speed machining operations
-NCT 304 Smart Touch CNC with intuitive touchscreen interface
-EnDat 2.2 absolute measuring system for precise positioning
-0.00005 mm positioning resolution with nano interpolation
-Advanced CNC control optimized for industrial machining applications
-Smooth and accurate axis movement under demanding workloads
-Optimized mechanical structure for long-term positioning accuracy
-Spindle bearing protection by compressed air
