TrackScan-Sharp E High-Precision 3D Scanning & Measurement Solution
Price:
€0.00
Tax included
- Optical Tracking Technology eliminates the need for traditional reference targets during large-scale measurements.
- Integrated Industrial Cameras capture complex geometries and fine surface details with exceptional clarity.
- Real-Time Measurement Processing improves workflow efficiency and accelerates inspection tasks.
- Flexible Measurement Environment suitable for manufacturing, aerospace, automotive, and heavy industry applications.
- Portable Metrology Solution designed for fast deployment and reliable operation across different workspaces.
Share on
Optical 3D Measurement System

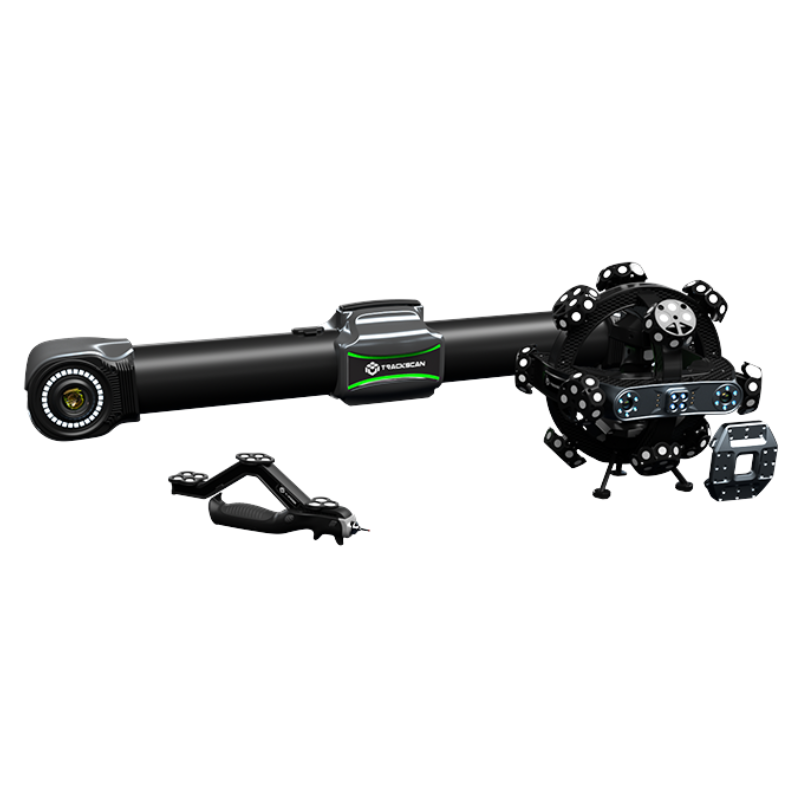

TrackScan-Sharp E, consisting of a portable 3D scanner i-Scanner and an optical i-Tracker, is a brand-new generation of Scantech’s optical 3D measurement system for measuring large-scale parts. It brings optical measurement to a whole new level by offering a tracking distance of up to 6 meters, a volumetric range of 49 m3, and volumetric accuracy of up to 0.049 mm (10.4 m3).
Engineered with i-Tracker’s on-board processor for Edge Computing, 25-megapixel industrial cameras, and cutting-edge technologies, the TrackScan-Sharp is ideal for measuring large-sized parts or multiple parts at the same time without the hassle of moving trackers frequently.
It supports wired and wireless data transfer to cater to different industrial uses, making scanning even easier. It can also work with an auxiliary light module to inspect holes and slots. TrackScan-Sharp is optimal for efficient and stable measurements to enhance product development, quality control, and more.
Ultra-high Pixels for Intricate Details
TrackScan-Sharp E tracking 3D scanning system is equipped with a brand-new industrial camera.
The camera features 25 megapixels, which is 5 times that of its previous generation. Thanks to its dynamic adaptive LED algorithm, long-distance depth of field, and strong anti-interference ability.
The system can automatically acquire clear images in a range as long as 6 meters.
Large-volume Measurement
Powered by its wide measurement volume and robust edge measurement algorithm, TrackScan-Sharp enables one-stop scanning of large-scale parts.
There is no need for users to move the tracker frequently when measuring large parts, which ensures efficient, smooth, and precise measurements.
Edge Computing & Impressive Performance
The newly designed i-Tracker has an onboard processor for efficient image processing and data computation, which can deliver coordinates in real-time.
This innovative Edge Computing saves the computer’s computing power so that it’s more capable of processing the scanned data.
It optimizes the data and makes it more reliable and stable, impressing users with outstanding performance.
Remarkable Accuracy
With powerful hardware and software, TrackScan-Sharp S delivers metrology-level and high-precision measurement results.
This optical 3D tracking system ensures the measurement results meet high metrological demands.
Thanks to its large tracking volume, which increased by around 200%, users can measure huge parts without compromising precision.
Measurement Volume | Volumetric Accuracy |
10.4 m³ | 0.049 mm |
28.6 m³ | 0.067 mm |
49.0 m³ | 0.089 mm |
Fast 3D Scanning & New Data Transmission
Due to its optical tracking technology, TrackScan-Sharp S can precisely measure parts without having to stick reference targets. Its large tracking volume allows users to measure multiple parts at the same time, thus significantly improving operations efficiency.
The 3D scanning system can transfer data both with and without wires. With wired mode, the system can send data over a long distance in line with industrial measurement standards.
Optional wireless mode support applications, in different working conditions, which is convenient due to its plug-and-play operations. It can be set up quickly and operated flexibly to cater to various environmental conditions, ensuring efficient measurements.
Innovative Design
Made of aerospace-grade carbon fiber in a sphere shape, the i-Scanner is for heavy use. Its ergonomic handle can ensure the long-session use of the 3D scanner without causing much fatigue, which ensures free measurement.
The i-Tracker has an intuitive light band that shows the operating status in real time. Its hollow grille design helps cameras remain at a stable temperature throughout the scanning process.
TrackScan Sharp-E 3D Laser Scanner
Technical Specifications
High-Speed Industrial 3D Scanning System
| Type | TrackScan Sharp-E |
| Scan mode |
Ultra-fast scanning – 81 blue laser lines (Triple Cross Technology) Hyperfine scanning – 17 blue parallel laser lines Deep-hole scanning – Extra 1 blue laser line |
| Accuracy (1) | up to 0.025 mm |
| Measurement rate up to | 6,000,000 measurements/s |
| Scanning area up to | 800 mm × 700 mm |
| Laser class | Class II (eye-safe) |
| Resolution up to | 0.02 mm |
| Volumetric accuracy (2) |
10.4 m³ (3.5 m) – 0.049 mm 35 m³ (5.2 m) – 0.070 mm 90 m³ (7.2 m) – 0.130 mm |
| Volumetric accuracy (with MSCAN photogrammetry system) | 0.044 mm + 0.012 mm/m |
| Stand-off distance | 300 mm |
| Depth of field | 400 mm, 800 mm (Large depth of field) |
| Output format | .stl, .pj3, .igs, .asc and etc., customized |
| Operating temperature range | -10–40 °C |
| Operating humidity range (non-condensing) | 10–90% RH |
| Interface mode | USB 3.0, Network Interface |
| Certification | CE, RoHS, WEEE, FCC |
| Hole position accuracy | 0.05 mm |
