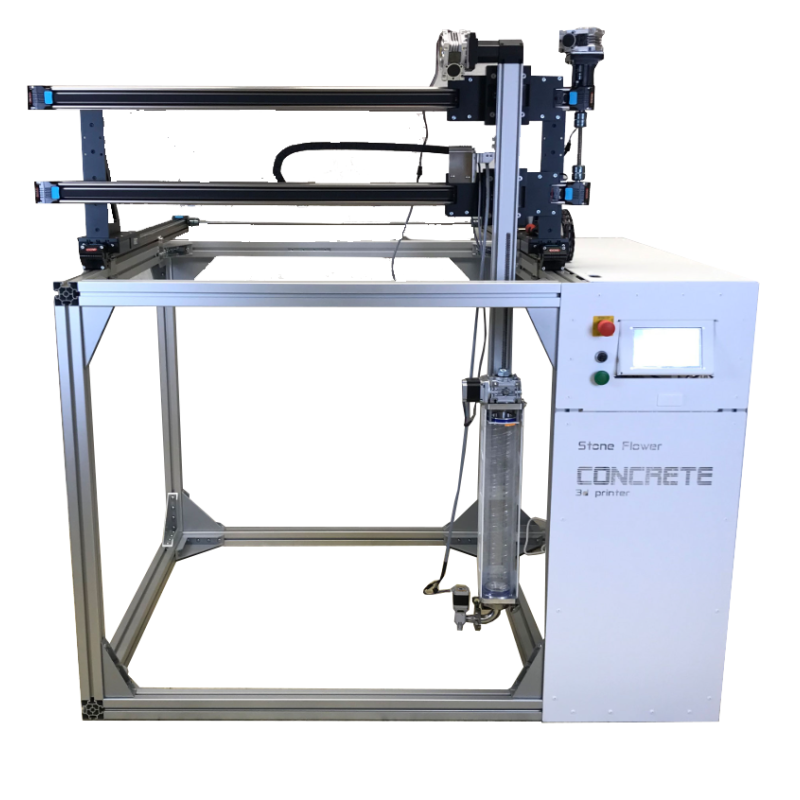

Stone Flower Concrete 3D Printer

Stone Flower Concrete 3D Printer

Stone Flower Concrete 3D Printer

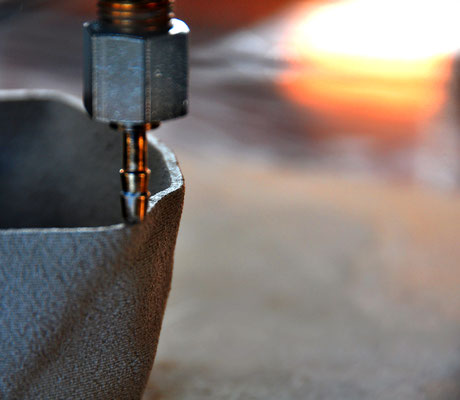

Concrete 3D Printer

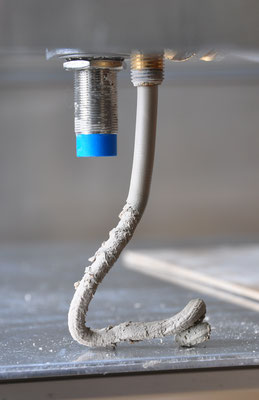

Small-scale 3d printing of mortar, suspensions and clay.

Custom build volume

The StoneFlower Concrete 3D Printer offers a customizable build volume, allowing users to tailor the machine's dimensions to their specific project requirements:

Width: Adjustable from 50cm to 150cm

Depth: Adjustable from 50cm to 300cm

Height: Adjustable from 50cm to 120cm

The printer's structure is built with a rigid aluminum frame using Bosh profiles (60x60mm) and features reinforced corners, ensuring stability and durability during the printing process.

Custom build volume

The StoneFlower Concrete 3D Printer offers a customizable build volume, allowing users to tailor the machine's dimensions to their specific project requirements:

Width: Adjustable from 50cm to 150cm

Depth: Adjustable from 50cm to 300cm

Height: Adjustable from 50cm to 120cm

The printer's structure is built with a rigid aluminum frame using Bosh profiles (60x60mm) and features reinforced corners, ensuring stability and durability during the printing process.

Specification

The StoneFlower Concrete 3D Printer is equipped with advanced features to ensure efficient and precise printing:

Components: Includes a router, a mixing print head for mortar, and a 5L big ram extruder.
Power: Operates on an input voltage of 230V AC, 600W, with an operating voltage of 24V/48V DC.
Motor Specifications: Features Nema 34 motors for the X and Y axes, and a Nema 24 motor for the Z axis.
Drive System: Utilizes industrial belt drives from CCM for reliable motion control.
Control & Interface: Controlled via Duet WiFi/Ethernet electronics, and features a colorful 7-inch touchscreen display for easy operation.
Motion Speed: Capable of speeds up to 200mm/s for width and depth, and up to 15mm/s for height adjustments.
Pump Compatibility: Compatible with a progressive cavity mortar pump, ram extruder (syringe pump, up to 5L), and a compressed air feed system, providing versatility in material handling.

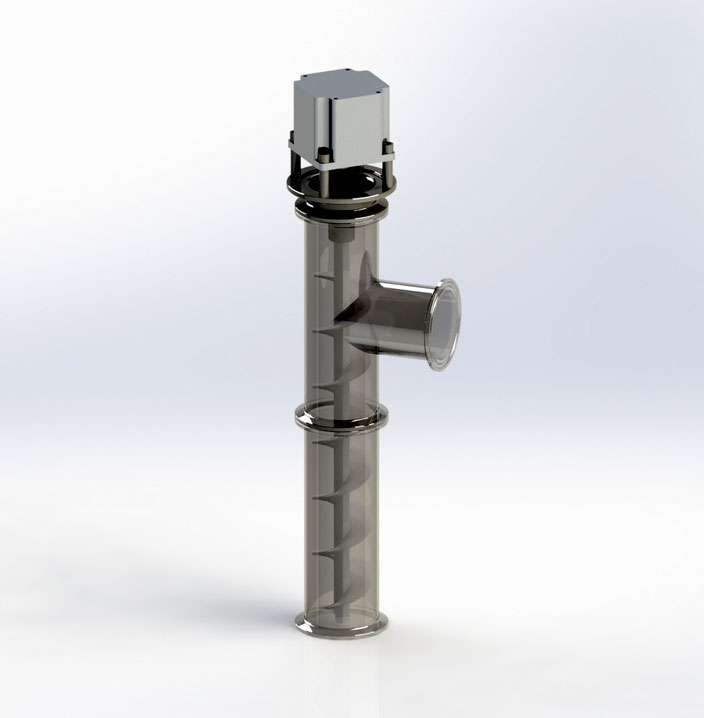

Mixing print head

Stainless steel 304

Auger screw diameter 40mm

Main inlet ID = 48mm, tri-clamp connector

Second inlet (for accelerator, optional), M8 threaded connector

length 400mm

brushless DC motor Nema 23

PWM control

Mixing print head

Stainless steel 304

Auger screw diameter 40mm

Main inlet ID = 48mm, tri-clamp connector

Second inlet (for accelerator, optional), M8 threaded connector

length 400mm

brushless DC motor Nema 23

PWM control

Progressive cavity pumps, 50L

Variable speed, PWM control

Power 220V AC, 1700W

Maximum flow rate 10L/min

Maximum pressure 20bar

Maximum pumping distance 15m

Maximum pumping heght 10m

Maximum grain size 4mm

Capacity 50L
