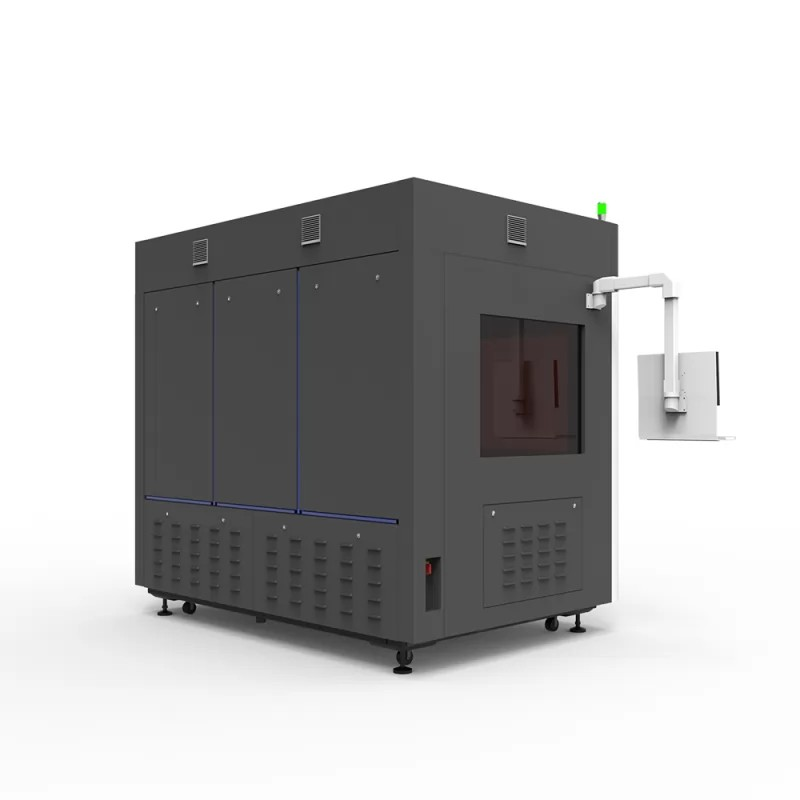

Kings SLA 1700 Pro 3D Printer
- Massive 1700 × 1700 × 1000 mm build volume for extra-large industrial parts.
- High-speed laser scanning up to 15 m/s for maximum productivity.
- High-precision SLA printing with layer thickness from 0.05–0.20 mm.
- Granite frame construction ensures superior stability, accuracy, and repeatability.
- Ideal for automotive, aerospace, foundry patterns, tooling, engineering, and large-scale industrial production.
KINGS SLA 1700 Pro – Advanced SLA 3D Printer for Extra-Large Parts
KINGS SLA 1700Pro – Industrial SLA 3D Printer for Ultra-Large Prototypes and Complex Molds
The KINGS SLA 1700 Pro printer is the top solution for very large prototypes, complex architectural models, and extended industrial molds. With an impressive build volume of 1700 × 800 × 650 mm, this printer enables the production of large parts in a single piece, reducing production time and optimizing costs.
Equipped with a high-performance Nd:YVO4 laser, with a variable beam size between 0.08–0.8 mm and scanning speed of up to 15 m/s, the printer ensures precision, productivity, and stability even in intensive production.
Thanks to its vertical resolution of 0.0005 mm, positioning accuracy of ±0.01 mm, and a 1300 kg resin tank, the KINGS SLA 1700 Pro offers an excellent balance between performance, reliability, and energy efficiency (rated consumption 2.2 kVA).
KINGS SLA 1700 Pro – Industrial SLA 3D Printer with Huge Build Volume and High Precision
Ultra-large build volume: 1700 × 800 × 650 mm for oversized prototypes and industrial parts
High scanning speed: up to 15 m/s with variable beam 0.08–0.8 mm
Superior precision: 0.05–0.25 mm layers with ±0.01 mm positioning accuracy
Industrial stability: marble frame with vacuum recoating system
Massive resin tank: ~1300 kg for uninterrupted production runs
Optimized energy consumption: only 2.2 kVA for cost-effective operation
Kings 3D software: closed-loop motion control with flexible settings
Versatile Applications of the KINGS SLA 1700 Pro 3D Printer
Automotive & aerospace: structural parts, large test prototypes, and functional components
Architecture & design: full-scale models, complex mock-ups, and custom designs
Footwear industry: molds and prototypes for soles with fast turnaround
Education & research: experimental prototyping and advanced material testing
Art & creative industries: oversized sculptures, installations, and display models
Why Choose KINGS SLA 1700 Pro?
Largest build volume – 1700 × 800 × 650 mm
High precision – 0.05–0.25 mm layers, ±0.01 mm accuracy
Fast and productive – up to 15 m/s scanning speed and 1300 kg resin capacity
Industrial-grade reliability – marble frame and OEM components
Cost efficiency – optimized resin use and low 2.2 kVA energy consumption
Advanced Kings 3D software – intuitive operation with closed-loop control
Full support – 2-year warranty and professional assistance
Technical Specifications – KINGS SLA 1700 Pro
Max Printing Size
Machine Size
Rated Power Consumption
Machine Weight
First Tank Resin
| Max Printing Size | 1700*800*650mm |
|---|---|
| Machine Size | 248cm(W)*169cm(D)*232cm(H) |
| Rated Power Consumption | 2.2KVA |
| Machine Weight | 2780kg |
| First Tank Resin | 1300kg |
| Beam Size (diameter @1/e²) | 0.08-0.8mm(Variable Beam) |
| Max Scanning Speed | 15.0m/s |
| Layer Thickness | 0.05mm~0.2mm |
| Accuracy | ±0.15(L≤100mm); ±0.15%*L(L>100mm) |
| Laser Type | Solid-state frequency tripled Nd: YVO4 |
| Wavelength | 355nm |
| Power | Resin Surface Power≥300 mw |
| Variable Beam System | Galvo/Closed-loop |
| Main structure | Marble recoater frame, marble elevator holder and marble scanning system base |
| Coating Mode | Intelligent position vacuum recoating |
| Vertical Resolution Ratio | 0.0005mm |
| Repeat Positioning Accuracy | ±0.01mm |
| Motion Control System | Closed-loop |
| Machine Control Software | KINGS 3D control software |
| Input Data File Format | STL/SLC |
| Operating System | Windows 10 |
| Network Type and Protocol | Ethernet， TCP/IP |
| Electrical Requirement | 200-240VAC 50/60Hz,single-phase,10A |
| Ambient Temperature | 20-26°C(72-79F) |
| Relative Humidity | ≤40%， non-condensing |
| Machine Warranty | 2 years (including laser) |
