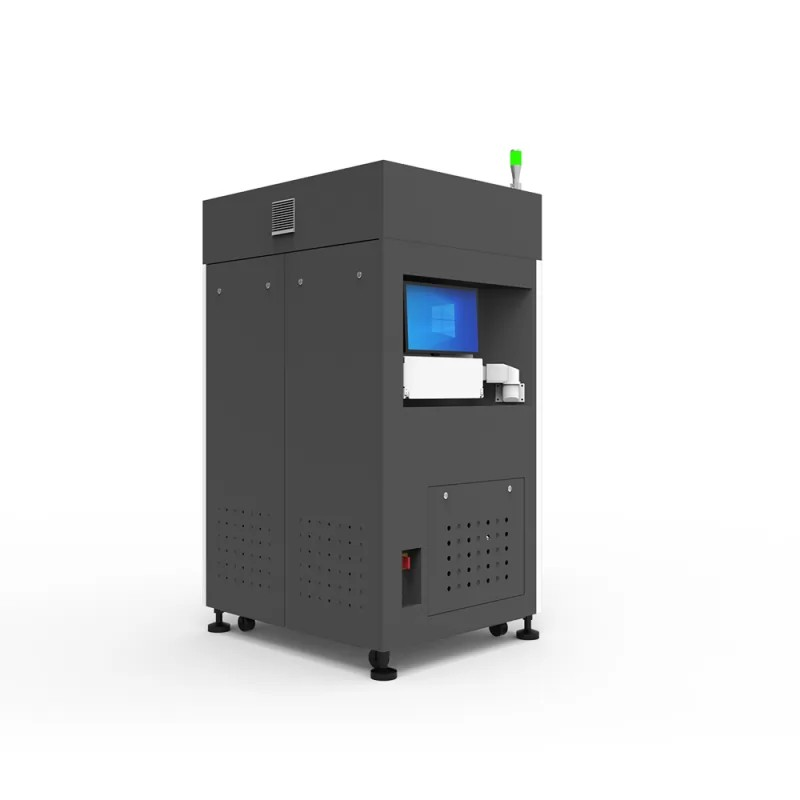

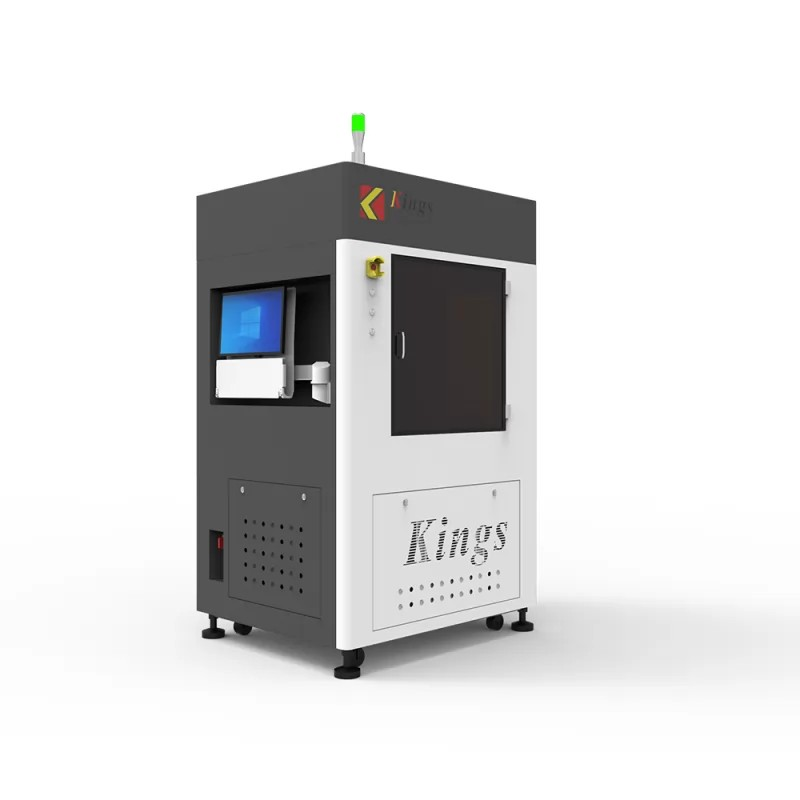

KINGS 6035Pro Industrial SLA 3D Printer
3D technology delivers precise molds and rapid prototypes for efficient development and testing
3D printers for shoe molds play an increasingly important role in the footwear industry. 3D printing technology for shoes enables the creation of rapid prototypes, original designs, and customized insoles, making it ideal for testing new manufacturing processes and developing innovative collections.
SLA 600Pro 3D Printer – Large Build Volume and High Speed
Generous printing volume: 600×350×350 mm
Compact dimensions relative to capacity: 118×99×217 cm (W×D×H)
Stability ensured by a robust marble structure
High scanning speed: up to 15 m/s
Efficient material handling and extended compatibility
Recommended Applications
Prototypes for footwear design (including multiple pairs simultaneously)
Rapid manufacturing of soles and molds for testing and small-scale production
Research and development of durable and customized materials
Why choose KINGS 6035Pro?
Optimized for rapid production in the footwear industry
Large build volume dedicated to footwear models
Increased reliability and precision details thanks to the marble-based structure
Speed and efficiency for small-scale manufacturing
Technical Specifications
Basic Information
| Max Printing Size | 600×350×350 mm |
|---|---|
| Machine Size | 118×99×217 cm (W×D×H) |
| Power Consumption | 1.2 KVA |
| Machine Weight | 780 kg |
Laser System
| Laser Type | Solid-state, Nd:YVO4, frequency tripled |
|---|---|
| Wavelength | 355 nm |
| Power | Resin surface power ≥ 300 mW |
Optical & Scanning System
| Variable Beam System | Galvo / Closed-loop |
|---|---|
| Beam Diameter | 0.08–0.8 mm (variable) |
| Max Scanning Speed | 15.0 m/s |
Recoating System
| Main Structure | Marble recoater frame, marble elevator holder, marble scanning system base |
|---|---|
| Coating Mode | Vacuum recoating with intelligent positioning |
| Vertical Resolution | 0.0005 mm |
| Repeat Positioning Accuracy | ±0.01 mm |
| Layer Thickness | 0.05 mm ~ 0.2 mm |
| Accuracy |
L ≤ 100 mm: ±0.1 mm L > 100 mm: ±0.1% × L |
Control Software
| Motion Control System | Closed-loop |
|---|---|
| Machine Control Software | KINGS 3D control software |
| Input File Format | STL / SLC |
| Operating System | Windows 10 |
| Network & Protocol | Ethernet, TCP/IP |
Installation Conditions
| Electrical Requirements | 200–240 VAC, 50/60 Hz, single-phase, 10 A |
|---|---|
| Ambient Temperature | 20–26 °C (72–79 ℉) |
| Relative Humidity | < 40%, non-condensing |
| First Resin Tank | 130 kg |
Warranty
| Machine | 2 years |
|---|---|
| Laser | 2 years |
3D printing and 3D scanning can become a true competitive advantage when used correctly.
