WaxJet 400 Wax 3D Printer
WaxJet 400

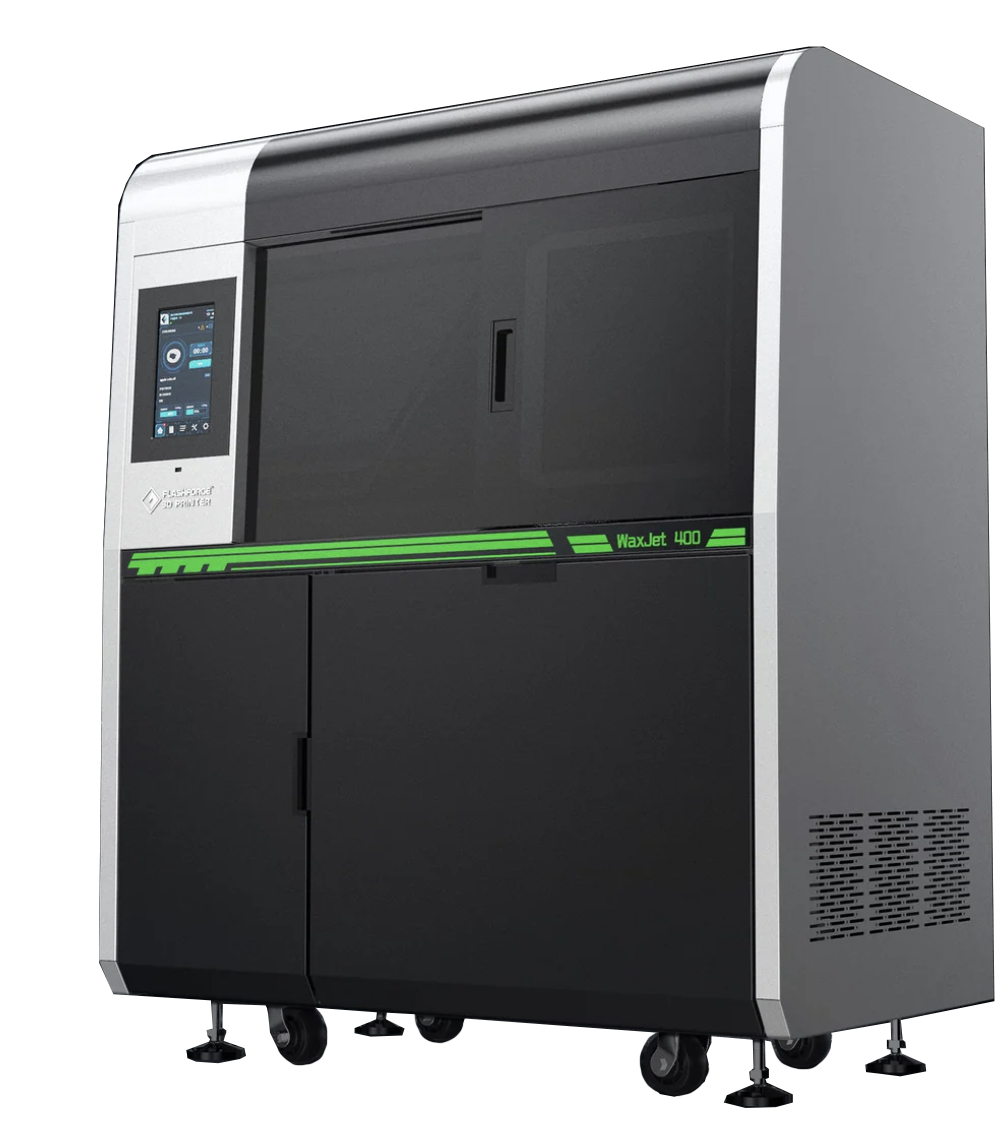

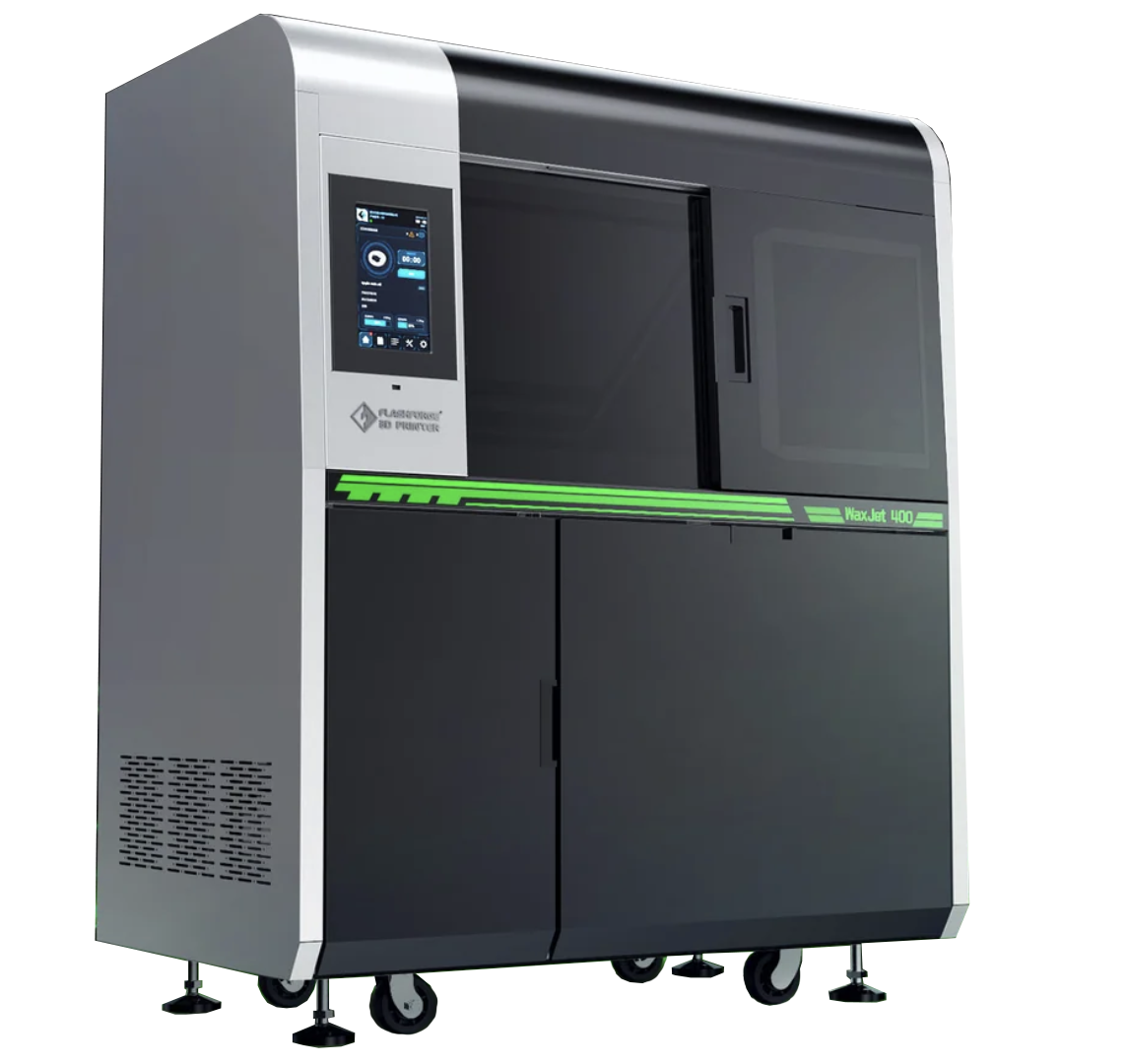

WaxJet 400, a large-size, high-precision, multi-jet wax 3D printer, can print casting wax patterns with smooth surface and high fineness.
3XPrinting Efficiency
Simultaneous printing with three printing heads
Production on Demand & Customization
Unconstrained by fixed production quantities and styles
Moldless Manufacturing
Enables direct 3D model printing with model data
Eliminates the need to spend time on mold-making and retouching, shortening the time to market by
Jewelry Industry
WaxJet 400 uses MJP technology to print wax patterns for casting, bypassing traditional mold-making and retouching steps.
Precision Casting Industry
WaxJet 400 streamlines precision casting, cutting lead time from 12 weeks to 1 week without altering the standard process.
Mass Production of Ancient Gold Bracelets
Shenzhen, China
Compared with the traditional process it's delivery time is 50% shorter and the labor cost is 30% cheaper.
| Printing Technology | MultiJet Printing (MJP) |
| Build Volume | 289*218*150mm |
| Printing Mode | XHD:1200*1200*1600dpi, Layer thickness: 16um |
| Dimensional Accuracy | ±0.04mm/20mm |
| Power Supply | AC220-240V, 50Hz,4KW |
| Equipment Dimensions | 1352*775*1600mm |
| Net Weight | 480kg |
| Gross Weight | 630kg |
| Package Size | 1530*900*1837mm |
| Slicing Software | WaxJetPrint |
| Supported File Format | .stl/.slc |
| Email Notification | 500G |
| Hard Disk Capacity | √ |
| Connectivity | Network 10/100/1000 Ethernet/USB |
| Supported Operating System | Windows7/Windows 10(64bit) |
| Working Environment | Temperature:18-28℃,Humidity: 30-70% |
