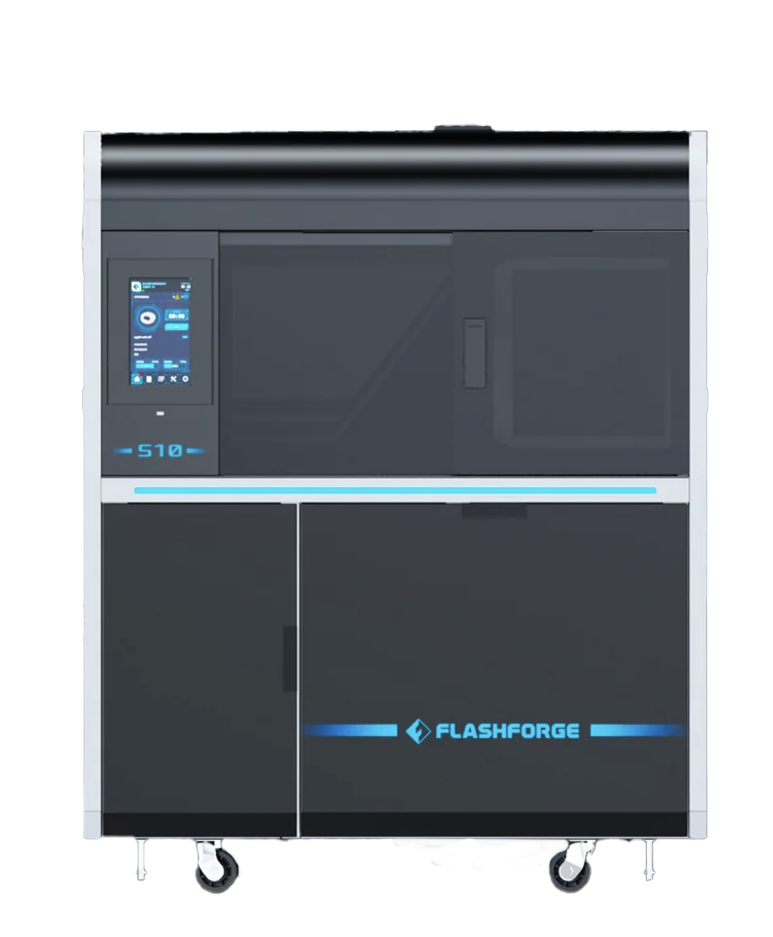

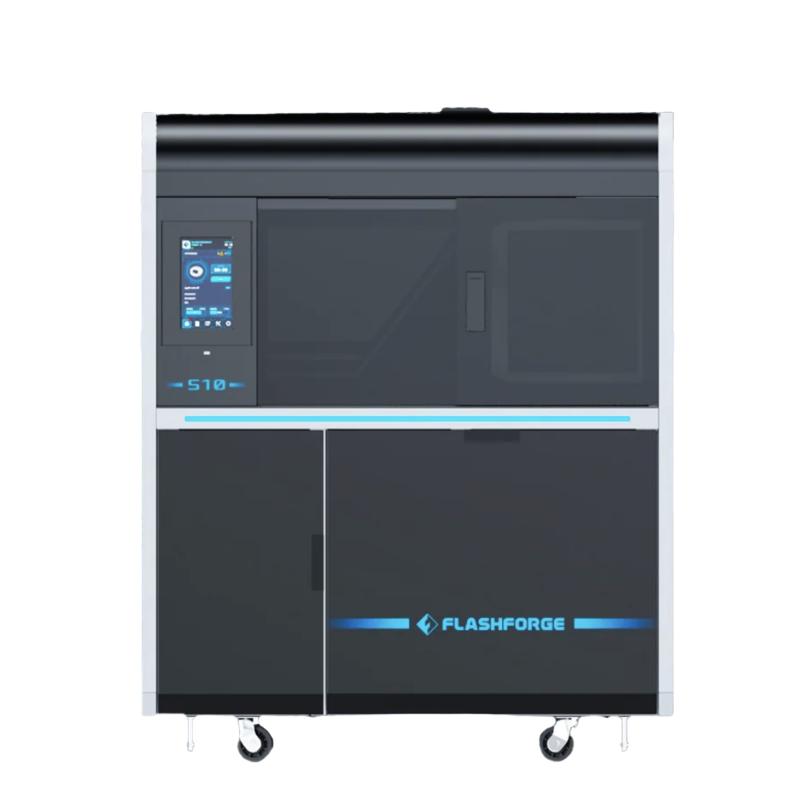

WaxJet 510
WaxJet 3D Printing Precision Perfected
Born for K-Gold Jewelry Casting
2900*2900*1700 DPI
sets a new standard for precision in jewelry 3D printing.
15μm per layer
represents much smoother, clearer details, less post-processing.
Lower costs
A mold created using a wax pattern that requires less polishing translates to lower cost.
Technology and Material
Capacity Upgrade
10 %
material costs reduced by
65 %
Yield increased by over
Moldless Manufacturing
Reduce mold-making and retouching costs, cutting time to market by 2/3.
Moldless Manufacturing
Reduce mold-making and retouching costs, cutting time to market by 2/3.

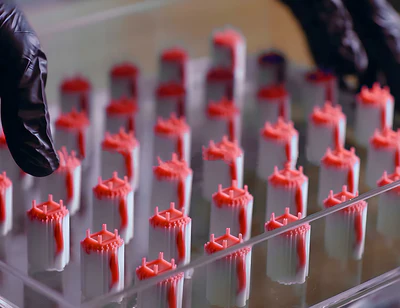

Stone-setting chain
Printing time: 1hr7min
Wax pattern weight: 4.2g
Usage: Setting gemstones on the wax model can precisely positioned and angled, reducing the need for cutting and wasting precious metals.
Compared with thraditional process
WaxJetPrint
WaxJetPrint is an all-in-one software that simplifies digital jewelry file slicing. It provides user-friendly composing and printing procedures for beginners.
24/7 Printing, Unattended & Continuous
User-Friendly Workflow
Enhanced Wax, Ideal for Complex Designs

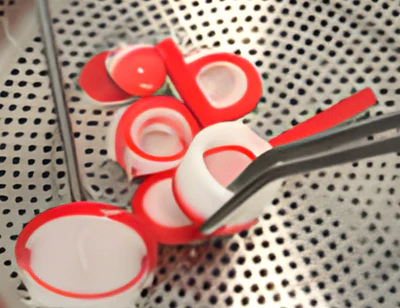

Contact-Free Support Removal， Easier Post-Processing
| Printing Technology | MultiJet Printing (MJP) |
| Build VolumeBuild Volume | 289*208*100mm |
| Printing Mode | XHD:2900*2900*1700 DPl; layer thickness:15um |
| Dimensional Accuracy | ±0.04mm/20mm |
| Power supply | AC220-240v,50hz,4kw |
| Equipment Dimensions | 1352*775*1600mm |
| Net Weight | 480kg |
| Gross Weight | 630kg |
| Package Size | 1530*900*1837mm |
| Slicing Software | WaxJetPrint |
| Supported File Format | .stl/.slc |
| Working Environment | Temperature:18-26°C; humidity: 30-70% |
| Email Notification | √ |
| Hard Disk Capacity | 500g |
| Connectivity | Network 10/100/1000 Ethernet/UsB |
| Supported Operating System | Windows7 /Windows 10(64bit) |
| Material Name | FFWJ1200 | FFWJ3200 |
| Material Type | Part material | Support material |
| Net Weight | 1.5kg/bottle | 1.6kg/bottle |
| Composition | 100% wax | Wax support material |
| Color | Red | White |
| Density@95°C(Liquid) | 0.79g/cm° | 0.85g/cm |
| Melting Point | 68℃ | 55℃ |
| Material Name | FFWJ1200 | FFWJ3200 |
| Softening Point | 63℃ | - |
| Volumetric Shrinkage | 1.1% | - |
| Linear Shrinkage | 0.7% | - |
| Needle PenetrationHardness | 9 | - |
| Ash Content | <0.01% | - |
| Description | High-precision castingwax | Hands-free dissolvable support material |
