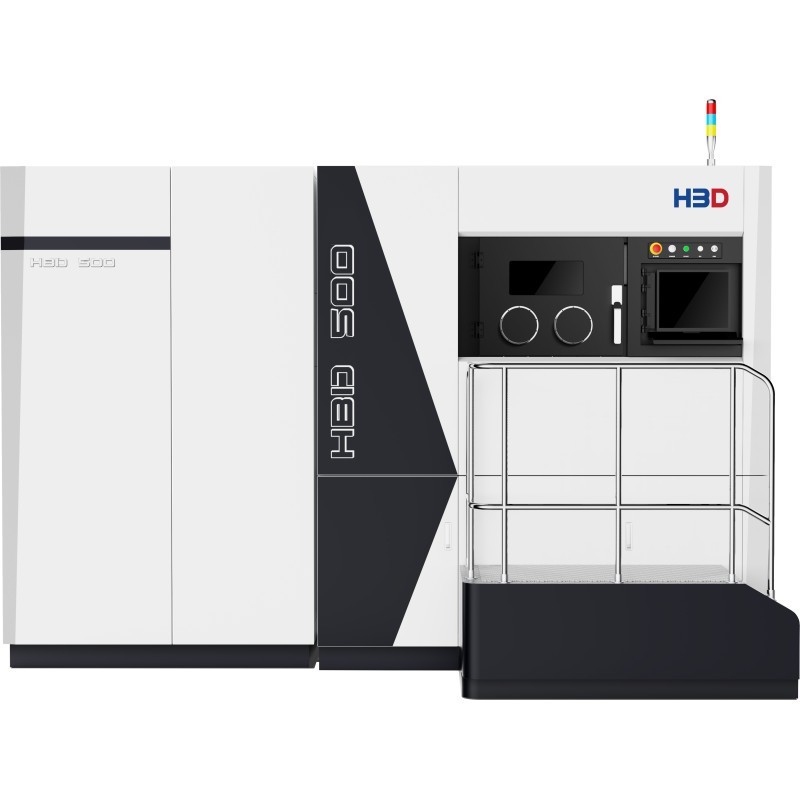

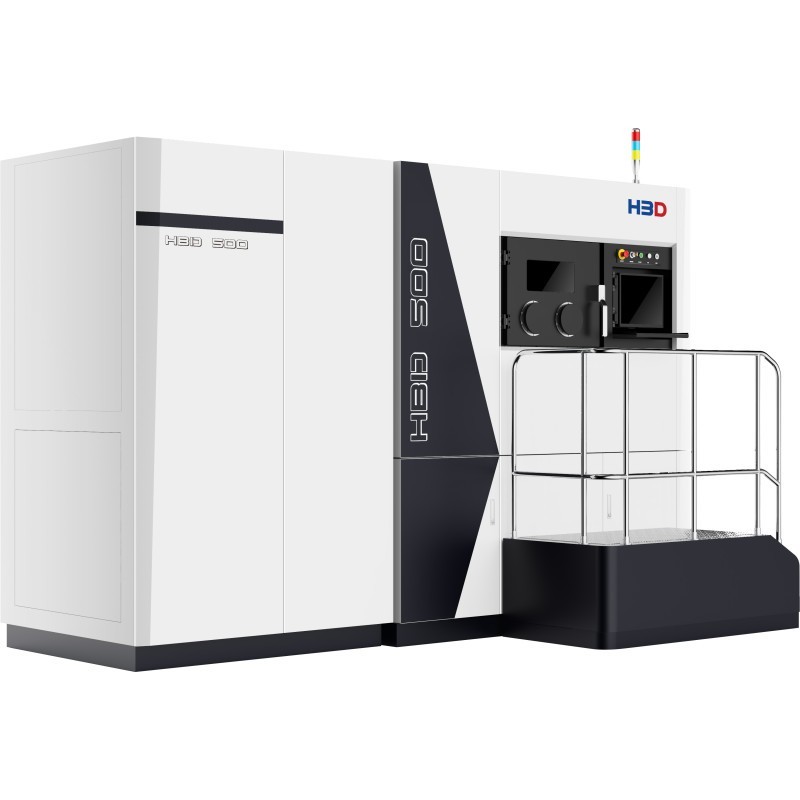

HBD 500 – Metal 3D Printer Hexa Laser 6×500W SLM
- Equipped with six 500W fiber lasers for accelerated production and optimized throughput.
- Large-format build chamber supports complex geometries and batch manufacturing.
- Advanced LPBF technology ensures high-density metal parts with excellent precision.
- Compatible with stainless steel, titanium alloys, aluminum alloys, and tool steels.
- Intelligent gas flow and process monitoring maintain consistent print quality throughout production.
HBD 500 – Metal 3D Printer Hexa Laser 6×500W SLM
High-Performance Metal 3D Printing for Large-Scale Production
WHY HBD 500?
Intelligent Powder Recoating Monitoring System
The HBD 500 Hexa Laser 6×500W is equipped with an advanced monitoring system that ensures uniform and efficient metal powder coverage, optimizing 3D printing quality, process stability, and overall equipment performance.
Spacious Build Volume
Benefit from a generous build volume, allowing for the production of larger metal components with high precision.
Convenient Front and Rear Hatches
Featuring front and rear access doors, the HBD 500 Hexa Laser 6×500W allows quick part removal and easy cleaning, providing excellent user comfort, ergonomics, and operational efficiency.
Marble Structure for Enhanced Stability and Accuracy
Designed with a solid marble structure, the HBD 500 Hexa Laser 6×500W provides exceptional long-term stability and high printing precision in metal additive manufacturing processes.
3D Print Cases
The metal 3D printing technology is used to re-optimize the design of the cooling channels to speed up the
flow paths, and the cooling flow paths are uniform, which ensures even flow and high heat dissipation
efficiency
Valve Body
Industry: Aerospace
Material: Ni718
Size: 380*419*185mm
Weight: 17982g
Time: 104h 15min
| Parameter | Specification |
|---|---|
| Build Volume | 430mm × 520mm × 520mm (height incl. build plate) |
| Laser Power | 2 Lasers, 500W / 1000W | 4 Lasers, 500W / 1000W | 6 Lasers, 500W / 1000W |
| Layer Thickness | 20μm – 120μm |
| Scanning Track Width | 70μm – 200μm |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection efficiency ≥ 99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05 – 0.2mm |
| Metal Powder | Titanium alloy, aluminium alloy, high temperature alloy, stainless steel, mold steel, etc. |
| Process Parameter Configuration | Tailored parameter set for the specific application, user-modifiable |
| Weight | Est. 4500kg |
| External Dimensions | 2280mm × 1560mm × 2570mm |
| Power Supply |
500W: AC380V, 50/60Hz, peak power ≤16–16.5kW, average power ≤6.5–7kW 1000W: AC380V, 50/60Hz, peak power ≤17–18kW, average power ≤7.5–8.5kW |
