HBD 500 SLM Metal 3D Printer
- Designed for high-performance metal 3D printing with industrial-grade reliability.
- Advanced LPBF technology delivers dense and accurate metal components.
- Supports complex geometries and efficient batch production workflows.
- Compatible with stainless steel, titanium alloys, aluminum alloys, and tool steels.
- Intelligent process monitoring ensures stable and repeatable print quality.

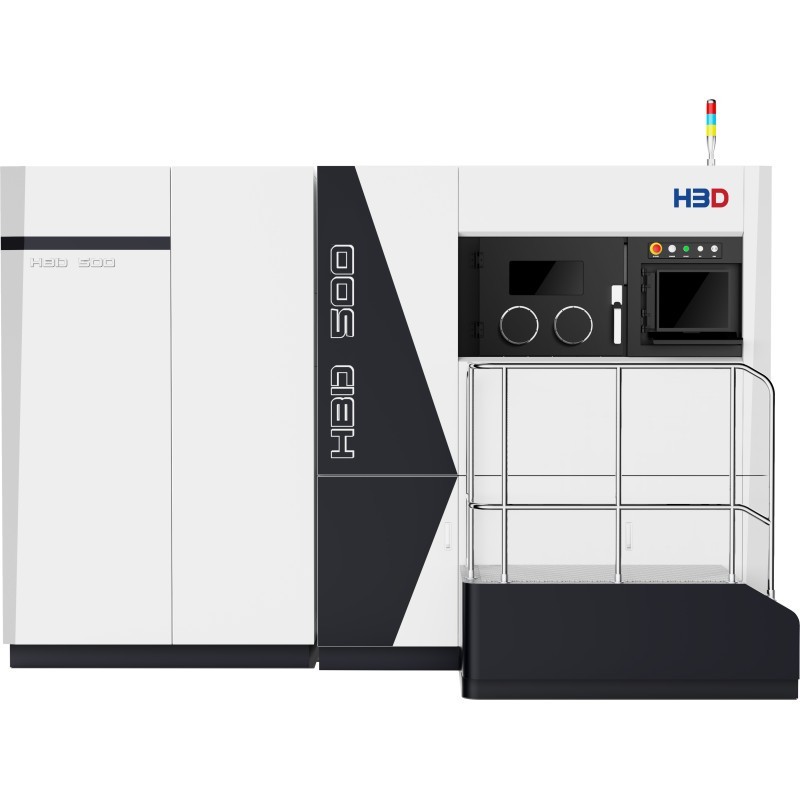

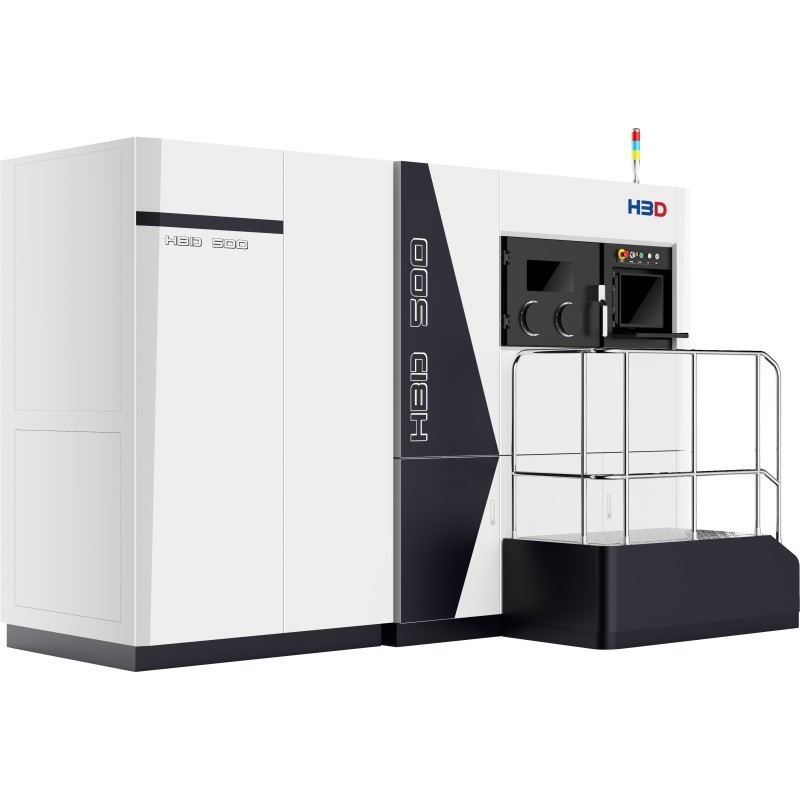

HBD 500 SLM Metal 3D PRINTER
High-Performance Metal 3D Printing for Large-Scale Production
WHY HBD 500?
Spacious Build Volume
Benefit from a generous build volume, allowing for the production of larger metal components with high precision.
Intelligent Powder Recoating Monitoring System
The HBD 500 is equipped with monitoring system that ensures efficient powder recoating,
optimizing print quality and production processes.
Marble Structure for Enhanced Stability and Accuracy
Designed with a marble structure, the HBD 500 offers improved long-term stability and
printing accuracy in metal additive manufacturing operations
Convenient Front and Rear Hatches
Featuring front and rear hatches, the HBD 500 provides easy access for part removal and
cleaning, enhancing user convenience during operation.
3D Print Cases
The metal 3D printing technology is used to re-optimize the design of the cooling channels to speed up the
flow paths, and the cooling flow paths are uniform, which ensures even flow and high heat dissipation
efficiency
Valve Body
Industry: Aerospace
Material: Ni718
Size: 380*419*185mm
Weight: 17982g
Time: 104h 15min
| Parameter | Specification |
|---|---|
| Build Volume | 430mm × 520mm × 520mm (height incl. build plate) |
| Laser Power | 2 Lasers, 500W / 1000W | 4 Lasers, 500W / 1000W | 6 Lasers, 500W / 1000W |
| Layer Thickness | 20μm – 120μm |
| Scanning Track Width | 70μm – 200μm |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection efficiency ≥ 99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05 – 0.2mm |
| Metal Powder | Titanium alloy, aluminium alloy, high temperature alloy, stainless steel, mold steel, etc. |
| Process Parameter Configuration | Tailored parameter set for the specific application, user-modifiable |
| Weight | Est. 4500kg |
| External Dimensions | 2280mm × 1560mm × 2570mm |
| Power Supply |
500W: AC380V, 50/60Hz, peak power ≤16–16.5kW, average power ≤6.5–7kW 1000W: AC380V, 50/60Hz, peak power ≤17–18kW, average power ≤7.5–8.5kW |
