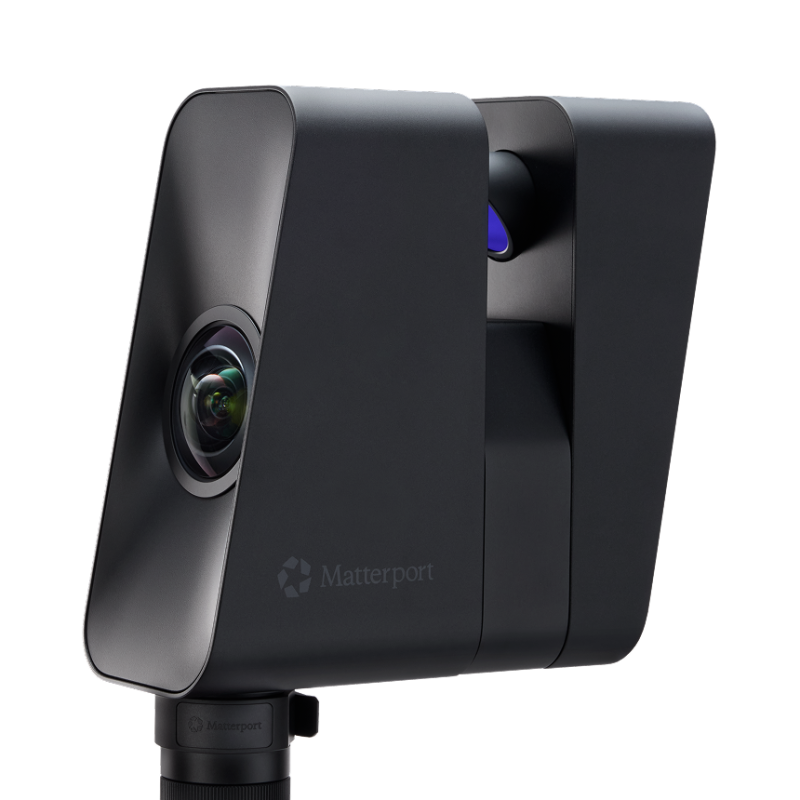

Matterport Pro3 Camera – Professional LiDAR 3D Camera for Digital Twins
- High-precision LiDAR scanning for professional 3D capture.
- Fast scan times for efficient project workflows.
- HDR imaging delivers detailed and realistic panoramas.
- Capture indoor and outdoor environments with confidence.
- Ideal for architecture, construction, real estate, and facility management.
Matterport Pro3
Revolutionizing 3D Scanning with Speed and Precision
Unbelievable accuracy and resolution
Ultra-fast, high-precision lidar sensor performs millions of measurements per scan
High precision rendering of large projects (+/- 20mm @10m) and high precision digital twin generation (100K points per second).
Performs each scan in <20 seconds="" p="">
Removable, rechargeable battery allows continuous scanning up to all day.
Create beautiful, professional 3D digital spaces
Captivating, high-resolution, photorealistic digital twins
Extended scanning range up to 100 m for fast capture of large spaces (*Standard range 20 m, extended range only available in e57 files)
Impressive scanning and imaging capabilities indoors and outdoors, even in direct sunlight!
Enhanced Accuracy, Speed, and Image Quality
The Matterport Pro3 3D scanner amplifies everything the Pro2 can do, allowing you to create more accurate, more detailed digital spaces with incredible speed. Thanks to new LiDAR technology, you can capture amazing quality images in low light and direct sunlight. You can capture images from as close as 100m and a scan can be completed in less than 20 seconds.
Technical Specifications
Scanning |
|
|---|---|
Depth Technology |
Lidar |
Laser |
Class 1 (in accordance with IEC 60825-1:2014) |
Wavelength |
904 nm |
Field of View |
360° H / 295° V |
Accuracy |
±20 mm @10 m |
Depth Resolution |
100k points per second Up to 1.5M points per scan |
Min Operating Range |
0.5 m |
Max Operating Range |
Up to 100 m (only available with E57) |
3D Data Registration |
Automatic |
Imaging |
|
Output Pano Pixels |
134.2 MP |
Number of Exposures per HDR Frame |
5 |
White Balance |
Automatic, full model |
System |
|
Capture Speed |
<20 seconds per scan |
Camera Boot Time |
<40 seconds |
Remote Operation |
Matterport App on Apple or Android mobile devices |
Wireless Communication |
BLE to setup WiFi connection WiFi 802.11 5GHz (2.4GHz through channel cycling) |
Physical |
|
Dimensions |
181 × 161.4 × 76 mm |
Weight |
2.2 kg |
Battery |
>220 scans assuming continuous, consecutive scans |
Battery Charge Time |
2.5 hours (80%) 3.5 hours (100%) |
Battery Weight |
258 g |
Battery Capacity |
45.36 Wh 4 cells per battery |
Mounting Mechanism |
Quick release tripod mount; Female 3/8-16 thread |
GPS |
Included |
Environment |
|
Operating Temperature |
0°C to 40°C |
Storage Temperature |
-20°C to 60°C |
Ingress Protection |
IP43 |
