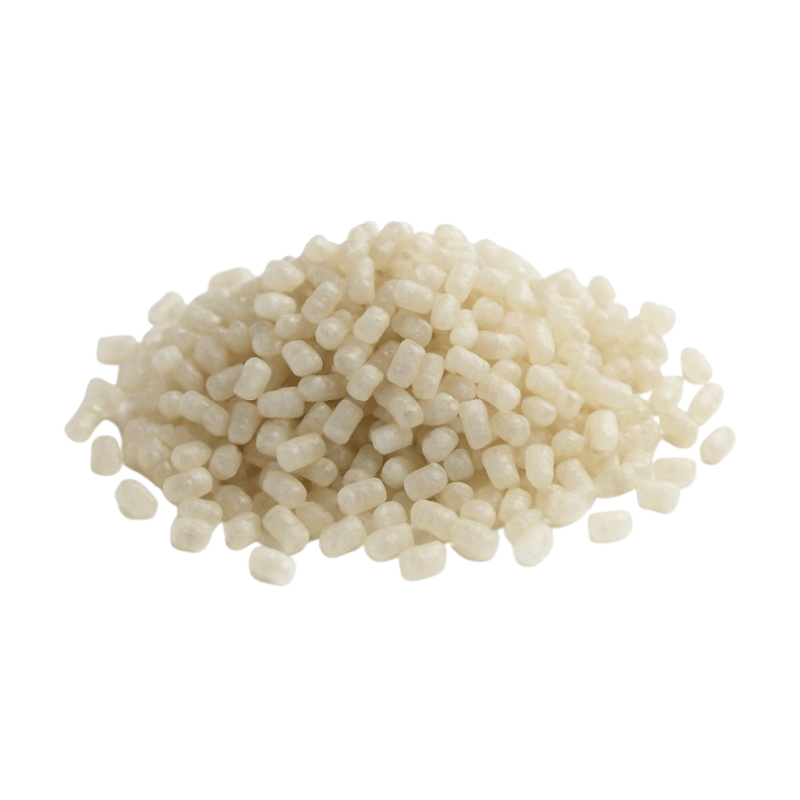

TPU Pellet
- Transparent, translucent, or colored TPU pellets, plasticizer-free
- High elasticity and resistance to wear and oil
- Excellent mechanical properties for flexible components
Request a custom quote for your required quantities and enjoy tailored pricing.
TPU pellets are an advanced thermoplastic material designed specifically for industrial 3D printing. These pellets are free of plasticizers and stand out for their exceptional elasticity, oil resistance, wear resistance, and strong mechanical properties. Available in transparent, translucent, or colored variants, TPU is ideal for flexible parts, protective components, and applications requiring durability. Thanks to its unique characteristics, TPU is the perfect choice for industries where flexibility and reliability are critical.
Technical Datasheet — TPU Material
Performance
Main Performance Table
| Project | Test Standard | Unit | Value |
|---|---|---|---|
| Hardness | ASTM D 2240 | Shore A | 95 |
| Density | ASTM D 792 | g/cm³ | 1.21 |
| 100% Elongation Strength | ASTM D 412 | MPa | 14 |
| 300% Elongation Strength | ASTM D 412 | MPa | 23 |
| Tensile Strength | ASTM D 412 | MPa | 32 |
| Elongation at Break | ASTM D 412 | % | 600 |
| Moisture | ASTM D 6890 | % | 0.5 |
| Glass Transition Temperature | ASTM D 3418 | °C | -32 |
Note: The above values are typical. Please contact your sales representative for batch-specific details.
Processing Conditions
Direct Printing
| Heating Zone 1 | Heating Zone 2 | Heating Zone 3 | Heating Zone 4 | Nozzle |
|---|---|---|---|---|
| 180 °C | 185 °C | 190 °C | 195 °C | 195 °C |
Bottom plate temperature: room temperature ~50 °C
Extrusion Processing
Recommended Settings
| Feeding Area | Heating Zone 1 | Heating Zone 2 | Heating Zone 3 | Heating Zone 4 | Flange | Mould |
|---|---|---|---|---|---|---|
| 185 °C | 190 °C | 195 °C | 200 °C | 205 °C | 210 °C | 205 °C |
