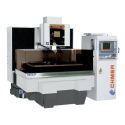

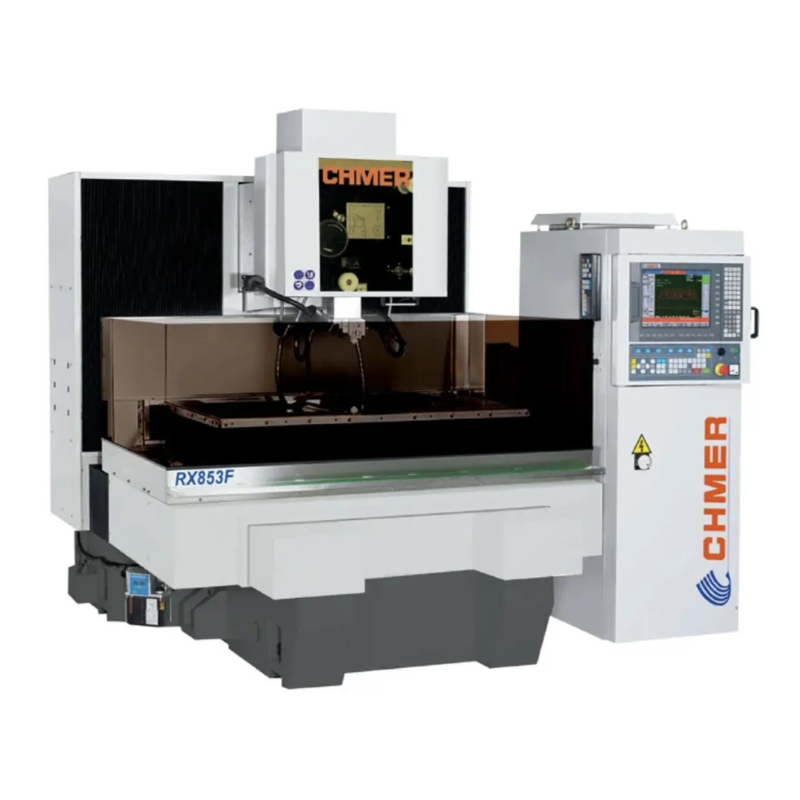

NCT RX853S CNC Wire Cut EDM Machine
- Submerged-type CNC Wire Cut EDM machine for industrial machining
- Large working area for oversized and complex workpieces
- FEM-optimized cast iron structure for high rigidity and stability
- Automatic Wire Threading (AWT) system for improved productivity
- CHMER CNC control and G7 generator for precise machining performance
Precision Wire EDM Machining for Industrial Manufacturing
Large-Scale CNC Wire Cut EDM Machine
The NCT RX853S is a submerged-type CNC Wire Cut EDM machine designed for machining large and complex industrial workpieces. Its advanced machine structure and stable cutting system support high-precision industrial manufacturing applications.
Large Working Area for Industrial Components
The RX853S offers a spacious machining area designed to support oversized workpieces and demanding industrial applications requiring stable and accurate wire EDM performance.
Rigid FEM-Optimized Machine Structure
Built with a FEM-optimized cast iron machine frame, the RX853S provides high rigidity, vibration reduction, and stable machining conditions during continuous industrial production.
Advanced CHMER CNC Control System
The machine integrates the advanced CHMER CNC controller and G7 generator technology to deliver precise machining control, optimized cutting performance, and efficient industrial workflow management.
Automatic Wire Threading System
The RX853S features an Automatic Wire Threading (AWT) system designed to improve productivity, simplify operation, and reduce downtime during industrial wire EDM machining processes.
Stable Submerged Wire EDM Performance
Designed with submerged cutting capability, the machine ensures stable machining conditions, improved surface quality, and reliable cutting performance for complex industrial components.
Optimized for Continuous Industrial Operation
Developed for modern manufacturing environments, the NCT RX853S combines precision, stability, and advanced wire EDM technology to support continuous industrial production and high-efficiency machining workflows.
Technical Specifications
Working Area |
|
|---|---|
Axis Travel X, Y |
800 mm |
Axis Travel X, Y |
500 mm |
Axis travel Z |
300 mm |
Axis travel U,V |
150 x 150 mm |
Max. Size of Workpiece |
1210 x 800 x 295 mm |
Max. workpiece weight |
1000 kg |
X, Y Feed Rate |
800 mm/min |
X and Y axis drive system |
Szervo |
U, V and Z axis drive system |
Szervo |
Wire Diameter Range |
0.15-0.3 (0.25) mm |
Max. Wire Feed Rate |
300 mm/mp |
Wire Tension |
300-2500 gf |
Taper Angle |
±21/140 °/mm |
Coolant System |
|
Tank Capacity |
1370 L |
Filter Element |
Paper |
Ion Exchange Resins |
6 L |
Conductivity Control |
Auto |
Fluid Temperature Control |
Auto |
Power Supply |
|
Circuit System |
Power MOS Transistor |
Max. output current |
25 A |
IP select |
10 |
Off Time select |
50 |
Control |
|
Data input |
Keyboard, RS-232C, USB |
Display |
15 " |
Control system |
Semi Closed Loop, 32bit, 1-CPU, Software Servo System |
Control Axis |
X / Y / U / V / Z (5 Axis) |
Setting unit |
0.001 mm |
Max. Command value |
9999.999 |
Interpolation |
Linear / Circular |
Command System |
Absolute / Increment |
Machining Feed Control |
Servo / Constant Feed |
Constant feed |
1 |
Scaling |
0.001 - 9999.999 |
Total AC Power Input |
3 phase 220 10% / 11 kVA V / KVA |
Installation |
|
Required floor space x height |
3150 x 3500 x 2350 mm |
Net machine weight |
5535 kg |
