D136 – Professional 7K LCD Dental 3D Printer (Large Build Volume)
- Large 13.6-inch 7K monochrome LCD with 6480 × 3600 resolution for exceptional detail.
- Spacious 298 × 165 × 300 mm build volume for high-volume dental manufacturing.
- High 46μm XY accuracy ensures precise dental models and restorations.
- LCD Integral Light Source provides up to 95% light uniformity for reliable results.
- Dual linear guides and ball screw Z-axis ensure stable, repeatable printing performance.
7K LCD Dental 3D Printer for Professional Applications

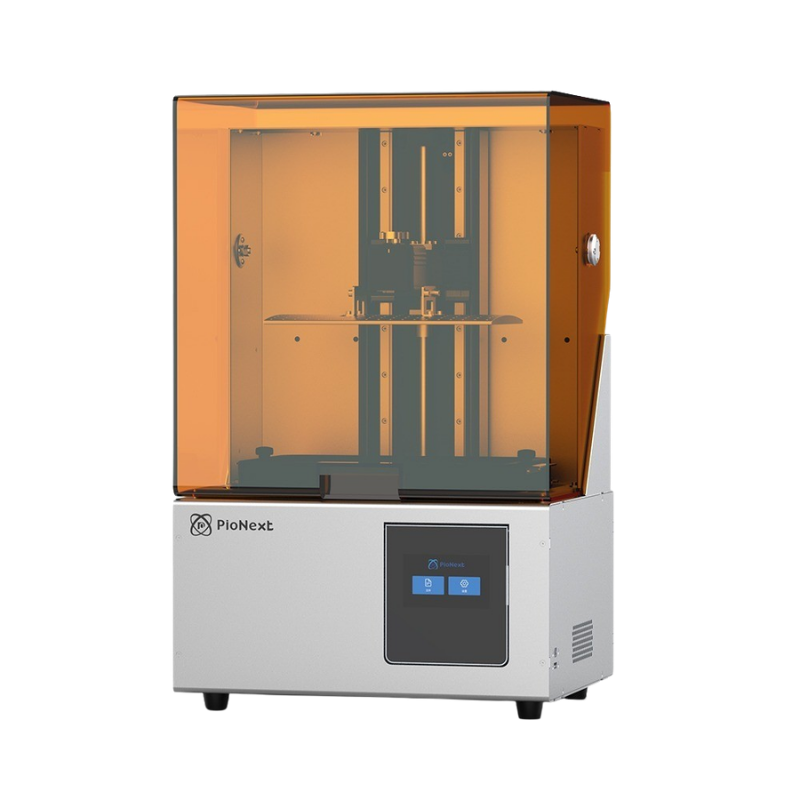

D136 is a large-format professional dental 3D printer designed for laboratories and digital production environments that require high precision and efficiency.

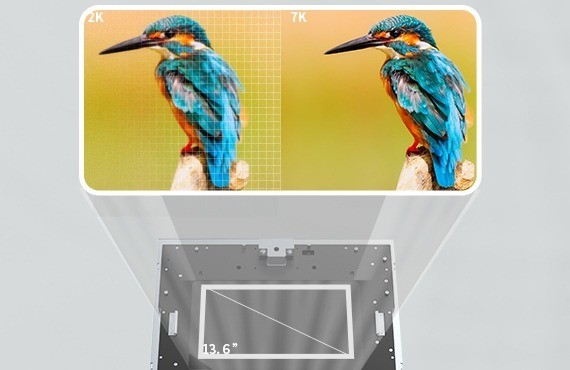

Based on 7K LCD technology with a resolution of 6480×3600 and a 13.6” screen, it delivers an excellent level of detail, ideal for complex dental applications.
High Precision and Fine Details
The XY accuracy of 46 microns enables precise reproduction of fine details, making it suitable for complex dental applications.

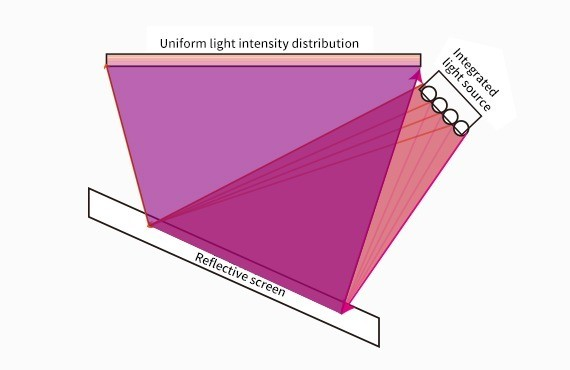

The full LCD light system provides up to 95% uniformity, ensuring consistent quality across the entire build platform.
Performance Adapted for Professional Environments
The printer is designed for efficient production, offering a high success rate and stable performance.

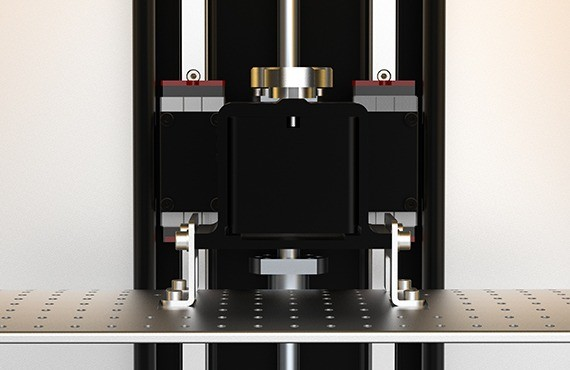

The robust Z-axis structure, with dual linear guides and a ball screw, ensures precision and stability even at larger print sizes.
With a generous build volume of 298 × 165 × 300 mm and a printing speed of up to 60 mm/h, it is ideal for batch production and complex applications.
Multiple Applications

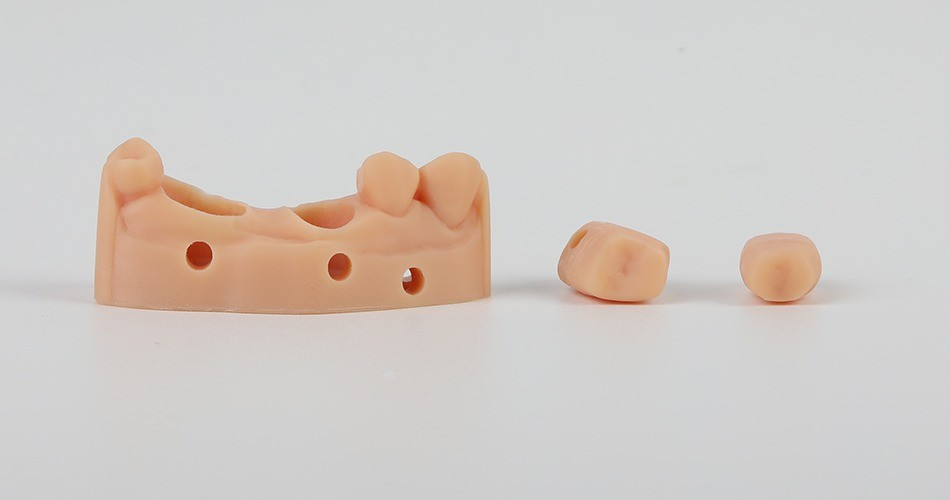

dental models
orthodontic applications
surgical guides
dental restorations
industrial and jewelry applications
Business Benefits
✔️ Large build volume → efficient production
✔️ High precision → professional results
✔️ Stability → high success rate
✔️ Reduced costs → material optimization
✔️ Versatility → multiple industries
D136 Specifications
| Printing Technology | LCD |
| Build Volume | 298 × 165 × 300 mm |
| Machine Dimensions | 480 × 376 × 770 mm |
| Resolution | 7K (6480 × 3600) |
| XY Accuracy | 46 μm |
| Printing Speed | up to 60 mm/h |
| Layer Thickness | 0.01 – 0.1 mm |
| Screen | 13.6” monochrome |
| Z Axis Type | dual linear guides + ball screw |
| Slicing Software | PioCreat Box (Windows/Mac) |
| Power Supply | AC 100–240V |
| Material Compatibility | Wide range of resins |
| Warranty | 12 months |
| Technical Support | Lifetime technical support |
