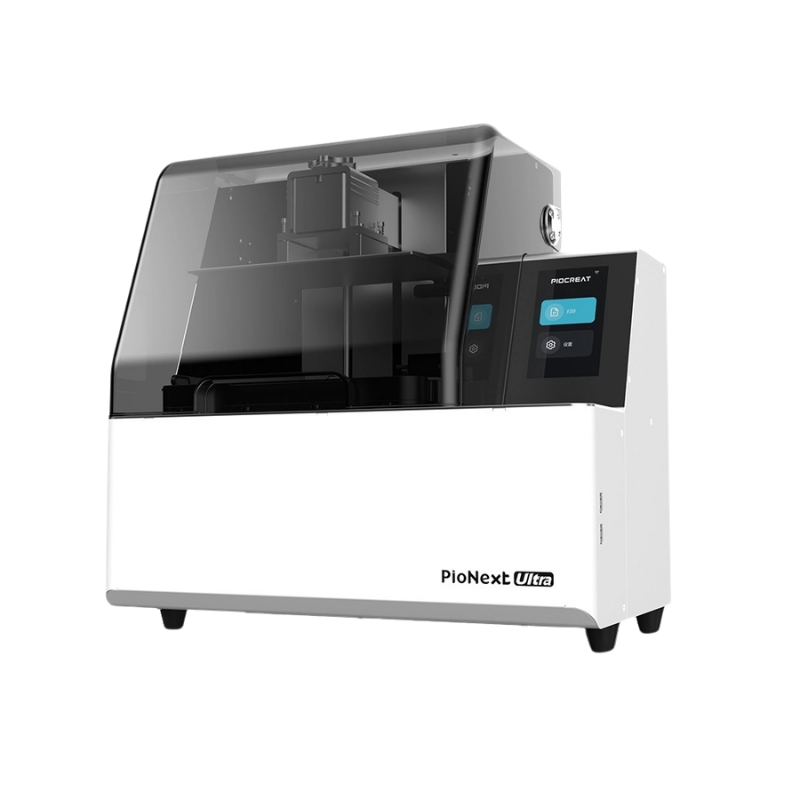

PioNext Ultra 2 – Professional 16K Dental 3D Printer
- 16K monochrome LCD delivers ultra-fine details with 19μm precision for demanding dental applications.
- Large 211.68 × 118.37 × 100 mm build volume enables efficient batch production of dental models.

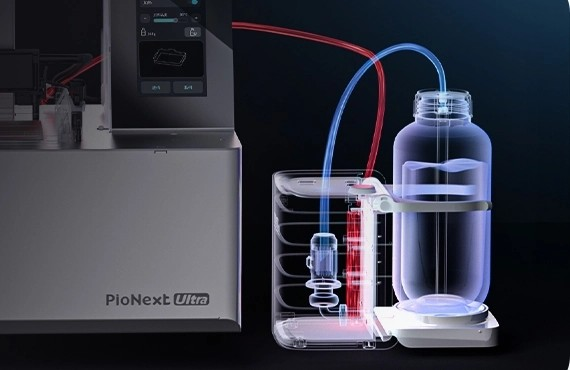

- Optional Automatic Feeding Unit (AFU) continuously supplies resin for uninterrupted long print jobs.
- Heated build chamber up to 35°C improves resin flow and enhances print consistency.
- USB and Wi-Fi connectivity with support for PioCreat Box and CHITUBOX Dental streamlines professional workflows.
16K dental 3D printer for advanced production
The PioNext Ultra 2 is a next-generation dental 3D printer designed for laboratories and clinics that require extreme precision, high productivity, and consistent results.
Featuring ultra high-definition 16K LCD technology, it enables the production of extremely fine details, essential for professional dental applications.

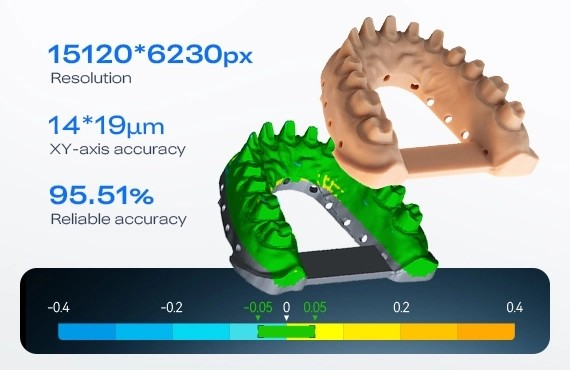

Ultra-high precision and consistent quality

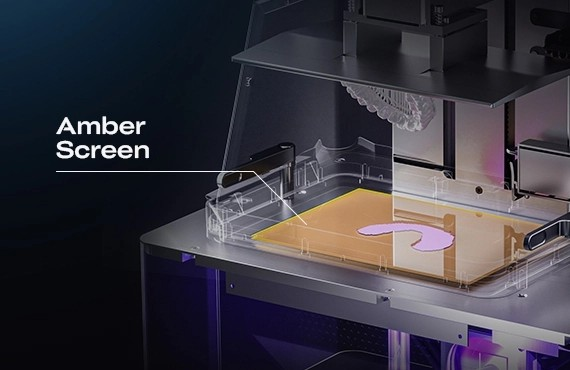

Equipped with a 16K screen and an advanced optical system, the Ultra 2 delivers uniform light distribution, ensuring precise results across the entire build platform.
This level of precision is ideal for complex work and high-quality dental applications.

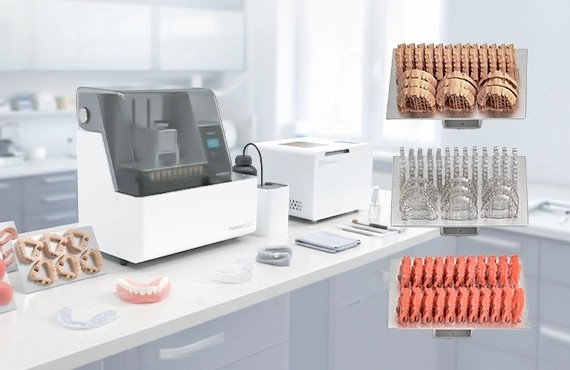

High productivity for modern laboratories
The generous build volume allows multiple dental jobs to be produced simultaneously, significantly reducing overall production time.
It is the perfect solution for laboratories that handle high workflow volumes.
Multiple applications

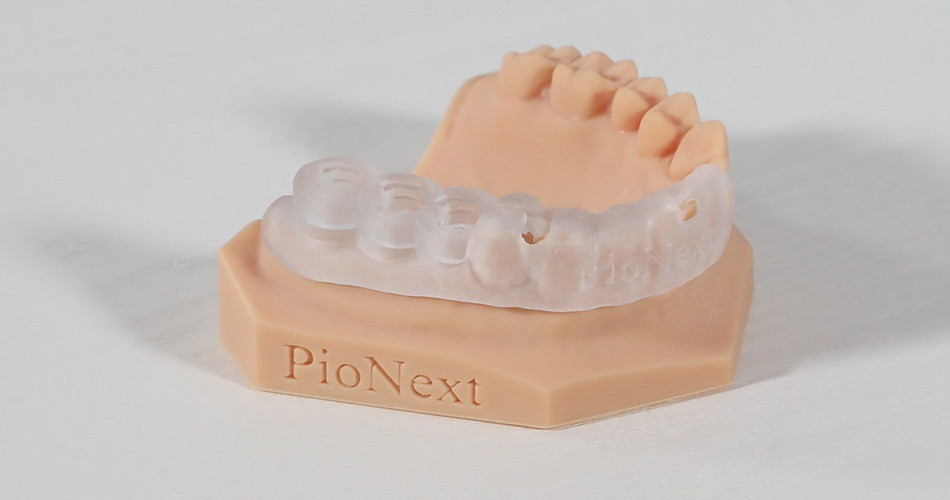

dental models

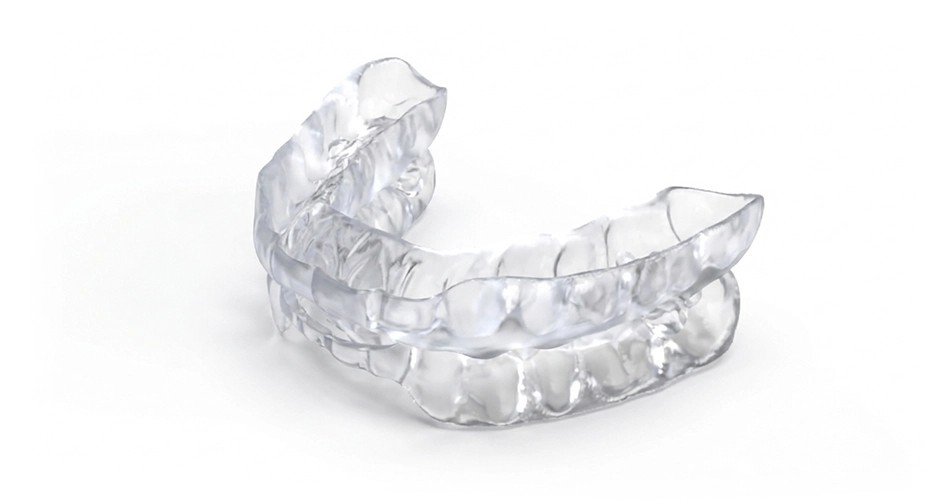

orthodontic appliances
surgical guides

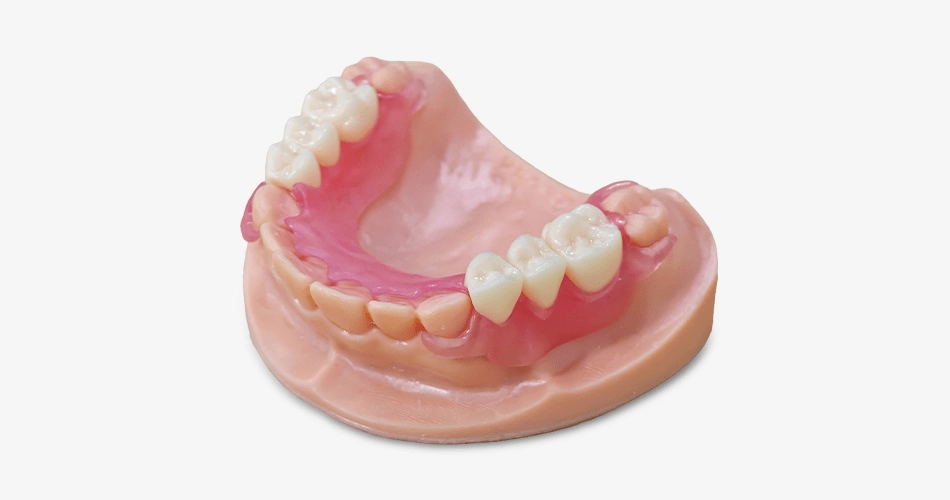

temporary restorations
general dental applications
Business benefits
✔️ High precision → professional results
✔️ Consistent quality → fewer errors
✔️ Productivity → increased efficiency
✔️ Control → in-house production
✔️ Versatility → multiple applications
Ideal for
dental laboratories
dental clinics
digital dental production
dental professionals
PioNext Ultra Specifications
| Printing Technology | LCD |
| Build Volume | 211.68 × 118.37 × 100 mm |
| Machine Dimensions | 468 × 286 × 470 mm |
| Package Dimensions | 600 × 370 × 585 mm |
| Net Weight | 19.78 kg |
| Gross Weight | 23.67 kg |
| Light Source Wavelength | 385 nm, 405 nm |
| Pixel Size | 14 × 19 μm |
| Printing Speed | max. 60 mm/h |
| Layer Thickness | 0.01 – 0.1 mm |
| Touchscreen | 5-inch capacitive color touchscreen |
| Z Axis Type | Dual linear guides + ball screw |
| Automatic Feeding | Yes (optional) |
| Data Transfer | USB / WiFi |
| Slicing Software | PioCreat Box / CHITUBOX Dental |
| File Format | .cxdlpv4 |
| Power Supply | 100–240V ~ 50/60Hz |
| Power | 660W |
| Material Compatibility | Unlimited range of premium materials |
| Warranty | 12-month manufacturer warranty |
| Technical Support | Lifetime technical support |
