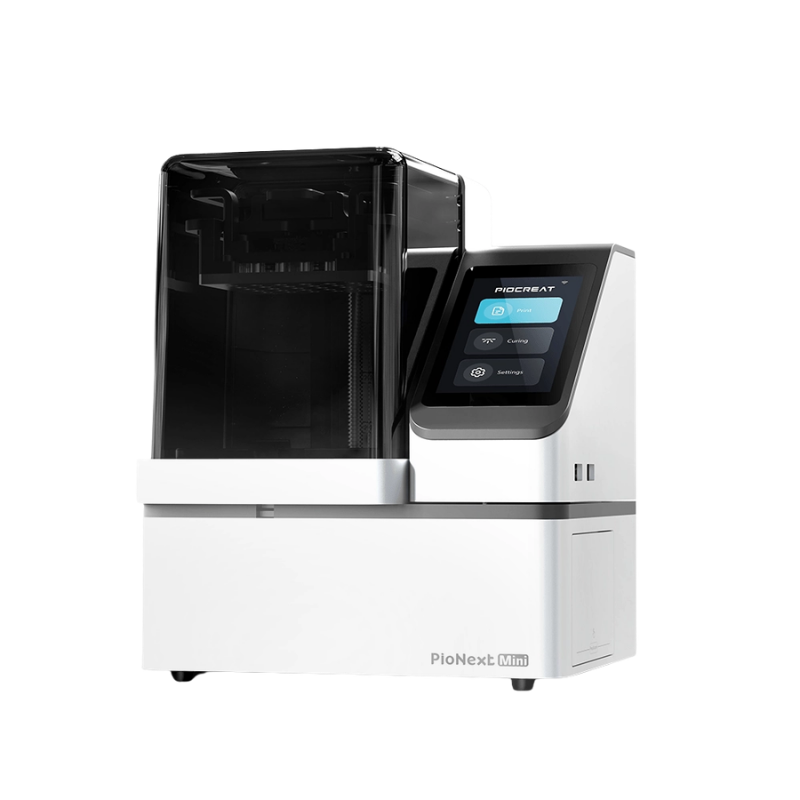

PioNext Mini – Compact 9K Dental 3D Printer
- All-in-one design combines 3D printing and curing in a single compact system.
- 9K monochrome LCD with 18μm XY accuracy delivers highly detailed dental models.
- Supports 385 nm and 405 nm wavelengths for broad dental resin compatibility.
- Heated chamber up to 35°C improves resin flow and print consistency.
- USB and Wi-Fi connectivity with PioCreat Box and CHITUBOX Dental support streamlines clinical workflows.
Create dental crowns in just 10 minutes – directly in your clinic
PioNext Mini is a professional dental 3D printer that allows you to produce high-precision work quickly, easily, and without relying on external laboratories. Featuring ultra-high-resolution 9K technology and an all-in-one system (printing + curing), it gives you full control over the digital dental workflow.
Ideal for modern dental clinics and laboratories seeking speed and increased profitability.
Why choose PioNext Mini?
Incredible speed
Professional precision
9K resolution
XY precision: 18 microns
Fine details, superior aesthetic finish
Compact & portable design
Compact size – perfect for your clinic
Easy to transport (suitcase-style design)
All-in-One (Print + Curing)
No need for separate equipment
Simplified workflow → time savings
What can you create with PioNext Mini?
✔️ Dental crowns
✔️ Bridges and veneers

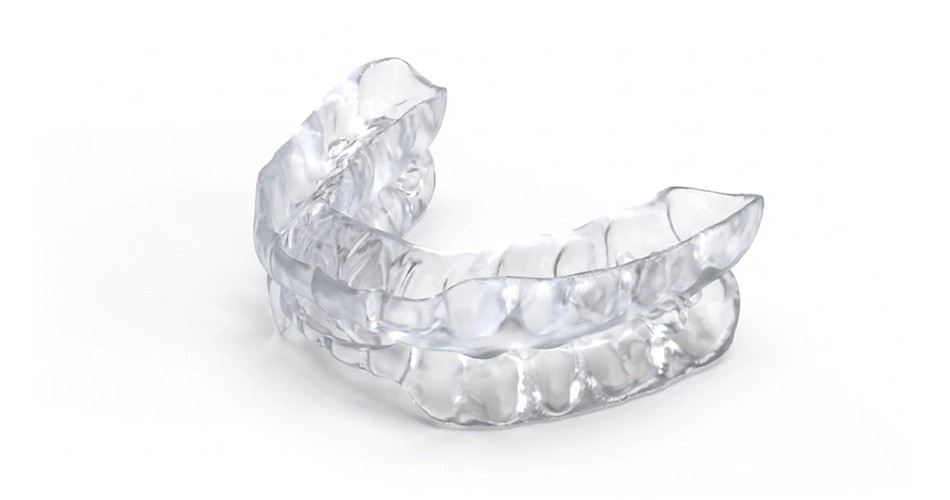

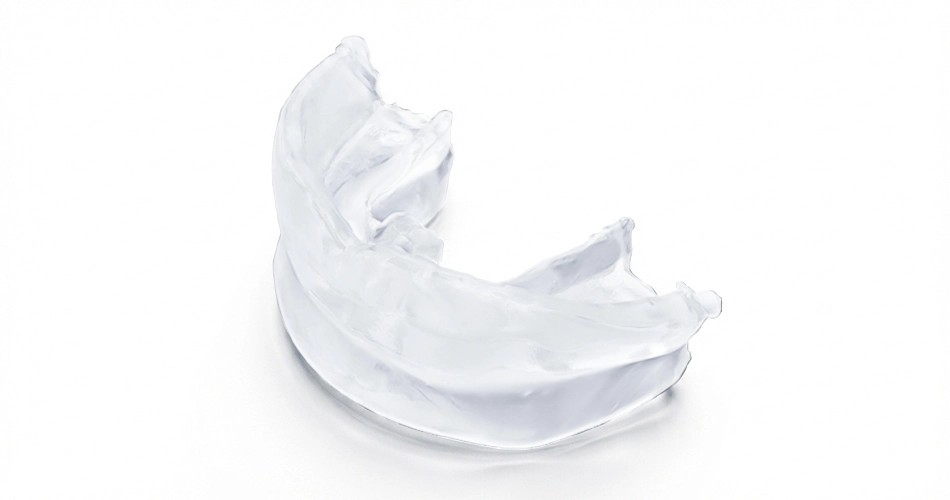

✔️ Splints and aligners
✔️ Surgical guides for implantology

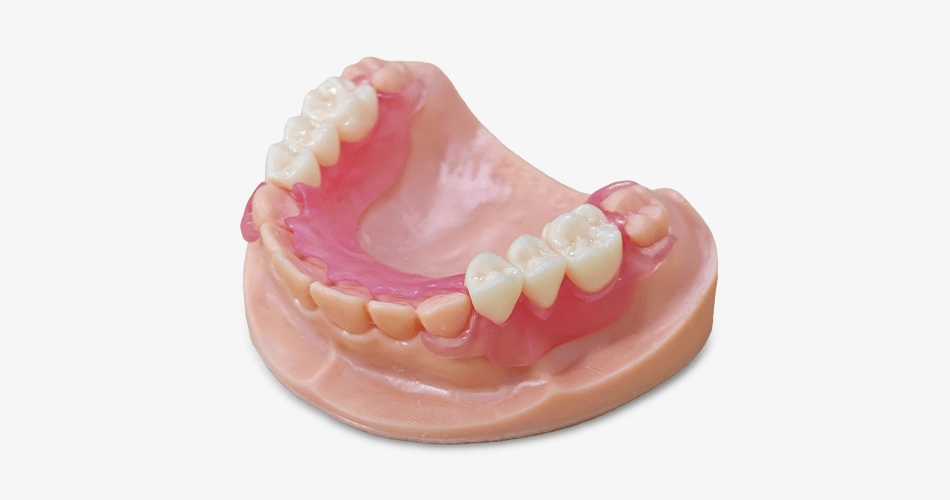

✔️ High-precision dental models
✔️ Temporary restorations
Real business benefits
Increase your profits
Eliminate lab costs
Produce dental work in-house
Reduce patient waiting time
Same-day delivery
Premium patient experience
Simplify your workflow
Intuitive operation
Quick integration into your clinic
PioNext Mini Specifications
Printing Technology |
LCD |
|---|---|
Build Volume |
80 × 70 × 80 mm |
Machine Dimensions |
200 × 170 × 241 mm |
Package Dimensions |
310 × 307 × 340 mm |
Curing Size |
76.5 × 72.5 × 37 mm |
Light Intensity (Curing) |
150 mW/cm², 405 nm |
Wavelength |
385 nm / 405 nm |
XY Accuracy |
18 μm |
Printing Speed |
Max. 60 mm/h |
Layer Thickness |
0.01 – 0.1 mm |
Display |
3.97″ Capacitive Color Touchscreen |
Resolution |
9K (8520 × 4320) |
Connectivity |
USB / Wi-Fi |
Slicing Software |
PioCreat Box / CHITUBOX Dental |
Power Supply |
100–240V, 50/60Hz |
Power |
120W |
Material Compatibility |
Wide range of dental resins |
Warranty |
12 months |
Technical Support |
Lifetime technical support |
