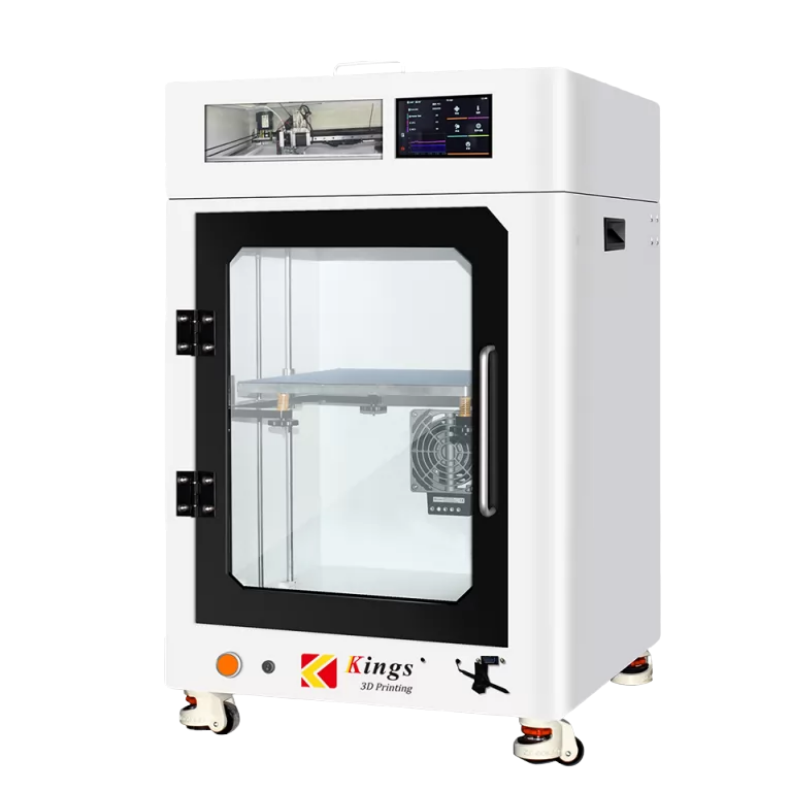

FDM 3D Printer 3040
- 300 × 300 × 400 mm build volume provides the ideal workspace for functional prototypes, engineering parts, and small-batch production.
- High-speed Klipper system with industrial linear guides and Leadshine closed-loop servo motors ensures fast, precise, and reliable printing.
- Up to 320°C nozzle temperature supports PLA, ABS, PETG, TPU, Nylon, Carbon Fiber, and other engineering-grade filaments.
- Fully enclosed heated chamber with dual-fan filtration improves print quality while reducing warping when processing demanding materials.
- 5-inch HD touchscreen, Wi-Fi connectivity, filament runout detection, and power-loss recovery simplify workflow and maximize productivity.
FDM 3D Printer 3040
High-Precision Large-Format Printing
Product Details
Klipper high-speed system
- 5-inch HD capacitive touchscreen
- Industrial-grade linear guides for XY axis
- Leadshine high-precision servo motors for XY axis (closed-loop drive)
- Dual Z-axis synchronized integrated leadscrews
- BMG dual gears
- 70W high-power heating rod, Volcano nozzle extruder for high-speed printing
- Internal temperatures up to 60℃, easily printing high-temperature materials like ABS and PLA.
Technical Specifications
Build Volume |
300 × 300 × 400 mm |
|---|---|
Machine Dimensions |
530 × 520 × 825 mm |
Printing Technology |
Fused Deposition Modeling (FDM) |
Layer Resolution |
0.05–0.35 mm (0.4 mm Nozzle) |
Positioning Accuracy |
0.05–0.35 mm |
Axis Positioning Accuracy |
XY: 0.0011 mm, Z: 0.00125 mm |
Air Filtration System |
Dual-Fan Filtration System |
Filament Runout Sensor |
Yes |
Nozzle Detection |
Yes |
Printing Mode |
Single-Color Printing |
Printing Speed |
≤6000 mm/s |
Machine Structure |
Fully Enclosed (Double-Door Design) |
Filament Feeding |
Top-Down Feeding |
Motion System |
XY-axis synchronous belt linear guide with dual Z-axis mechanically integrated synchronized lead screw |
Drive System |
Lesai Closed-Loop Servo Motor Unit for the XY-axis (42cme08 + CL1-507) |
Lighting |
LED |
Nozzle Diameter |
0.4 / 0.6 / 0.8 / 1 mm |
Nozzle Temperature |
0–320°C |
Display |
5-inch Touchscreen |
CPU |
32-bit ARM CPU Microcontroller |
Connectivity |
USB Drive, LAN (Wi-Fi) |
Power Supply |
AC100V–AC240V, 50Hz/60Hz |
Operating System |
Windows, Linux, Mac |
Supported File Formats |
STL, OBJ |
Machine Housing |
High-Temperature Powder-Coated Steel Sheet |
Operating Temperature |
15°C–32°C (60°–90°F) |
Storage Temperature |
0°C–32°C (32°–90°F) |
Net Weight |
48 kg |
Print Bed |
Independently Powered Silicone Heated Bed + Aluminum Plate + Removable Magnetic Steel Plate |
