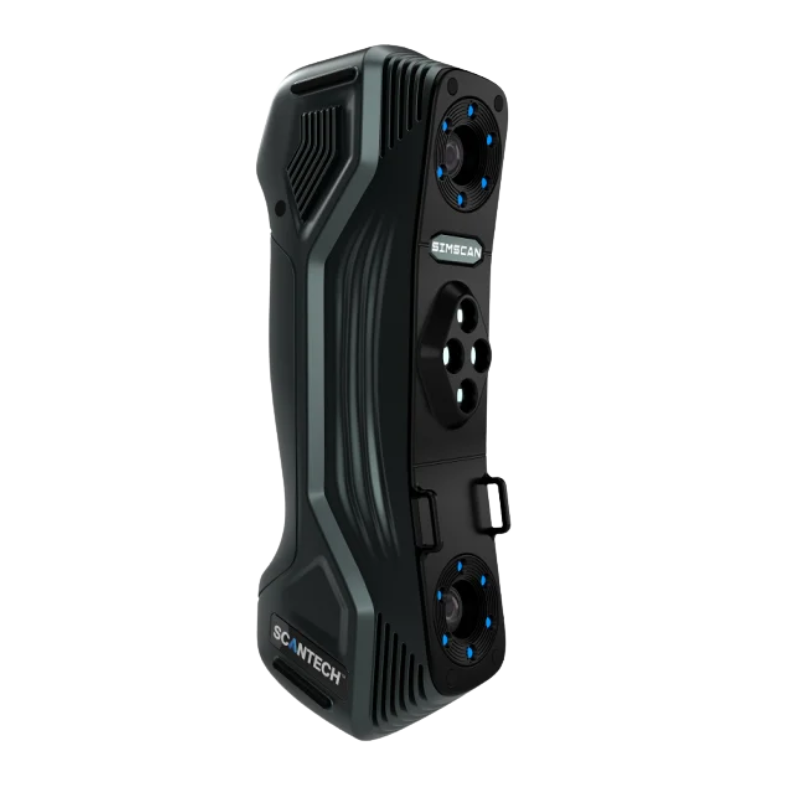

SIMSCAN 22 3D Laser Scanner
Compact Precision for Everyday Industrial Scanning
The SIMSCAN 22 is engineered for professionals who need reliable metrology-grade 3D scanning in a compact handheld design. Combining high accuracy, blue laser technology, and exceptional portability, it delivers efficient results for inspection, reverse engineering, and product development. :contentReference[oaicite:0]{index=0}
- Capture precise 3D data with accuracy up to 0.020 mm.
- Work comfortably using the lightweight, palm-sized handheld design.
- Scan efficiently with 22 blue laser lines and up to 2.02 million measurements per second.
- Inspect fine details and complex geometries with confidence.
- Support quality control, reverse engineering, and industrial manufacturing.

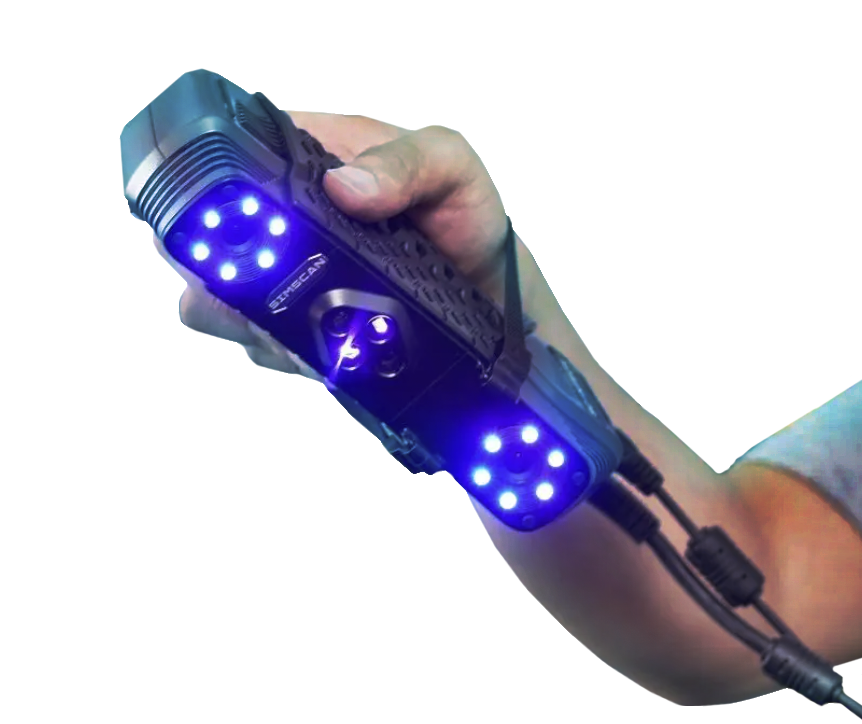

Single Handed Control
SIMSCAN’s full-metal housing provides a solid protection and ensures extraordinary durability.
Weight: 570 gramms
Size: 203 × 80 × 44 millimeters
SIMSCAN portable 3D scanner provides an unparalleled simplicity for scanning anything with one hand.

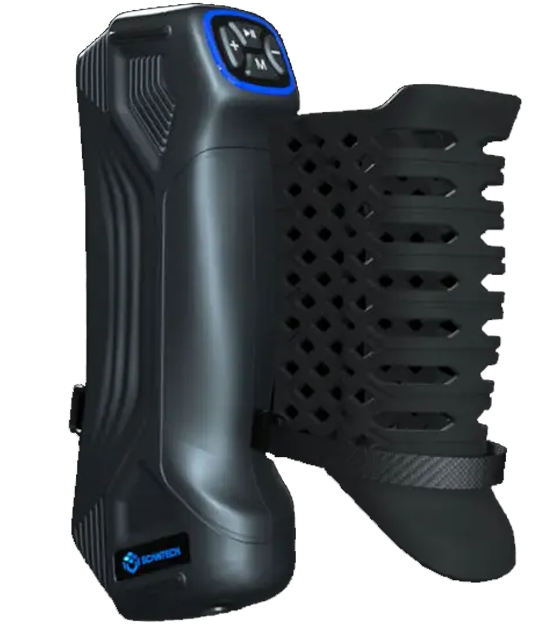

High
Low
Power
Consumption
Because of its hollow structure, it dissipates the heat more effectively.
The 3D scanner is efficient at performing measurements with low power consumption.
Thanks to it's versatility, it can perform a wide variety of 3D measurements.
Narrow-space
Measuring Booster
Compared with its competitors, SIMSCAN
has a much shorter camera distance of 130 mm,
which forms a steeper view angle to 3D scan narrow spaces,
therefore, SIMSCAN is more capable of capturing
accurate and complete data in hard-to-reach areas like
deep grooves and ensures users to capture full-field data.
SIMSCAN 22 Gen2 Technical Specifications
Ultra-fast Scanning
11 blue laser crosses
Hyperfine Scanning
7 blue parallel laser lines
Accuracy
Up to 0.020 mm
Scanning Rate
Up to 2,020,000 measurements/s
Scanning Area
Up to 650 × 550 mm
Laser Class
Class II (Eye-safe)
Resolution
Up to 0.020 mm
Volume Accuracy (Standard)
0.015 mm + 0.035 mm/m
Volume Accuracy (with MSCAN-L15)
0.015 mm + 0.012 mm/m
Stand-off Distance
300 mm
Depth of Field
550 mm
Output Formats
.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Interface Mode
USB 3.0
Dimensions
203 × 80 × 44 mm
Weight
570 g
Operating Temperature Range
-10°C ~ 40°C
Operating Humidity (Non-condensing)
10–90% RH

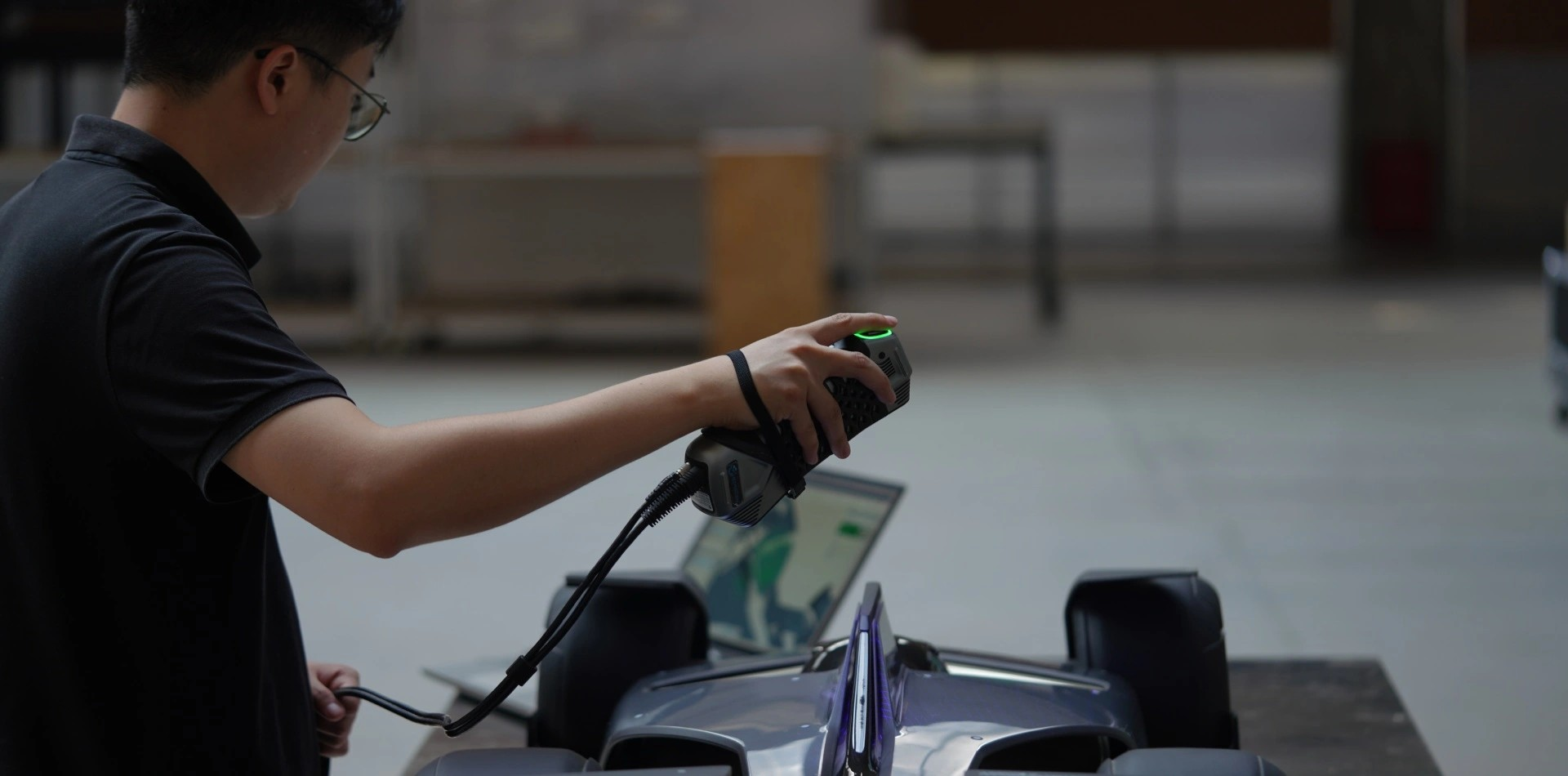

Remarkable portability
SIMSCAN boasts a compact size and excellent portability.
No matter in narrow spaces or under huge objects, SIMSCAN portable 3D scanner can conduct 3D measurements anywhere and anytime.
When paired with wireless communication link AirGO Power, it supports mobile 3D scanning and data viewing for truly flexible, reliable, and effective measurement experiences.

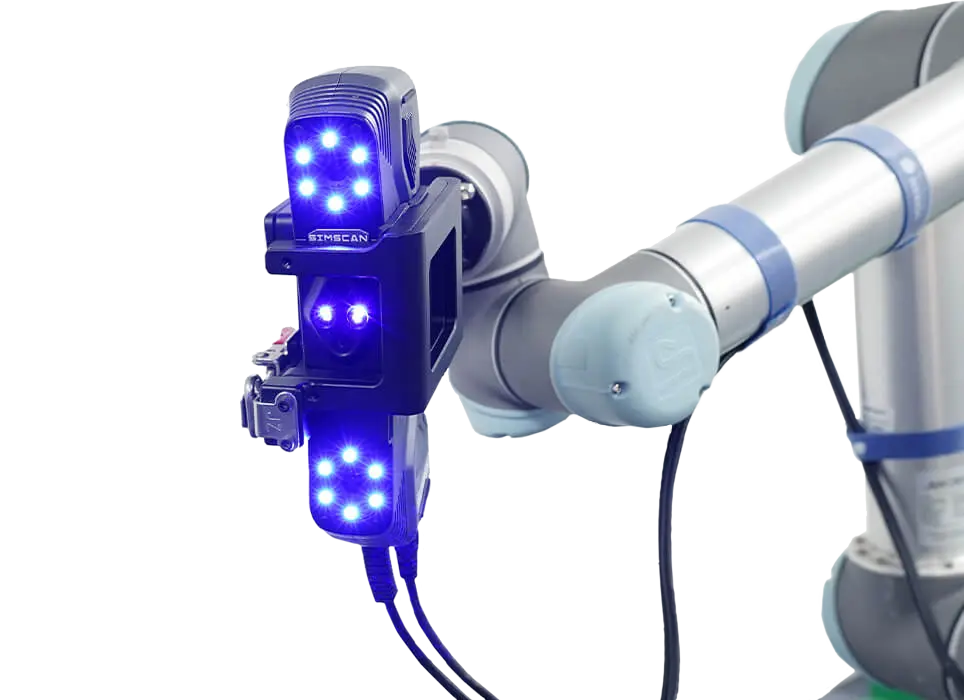

Automated 3D measurements
It can be paired with Scantech’s automated 3D measurement system to achieve non-stop measurements. Automated high-batch measurement overcomes the limitation of traditional methods and it significantly improves efficiency for all stages of manufacturing.
