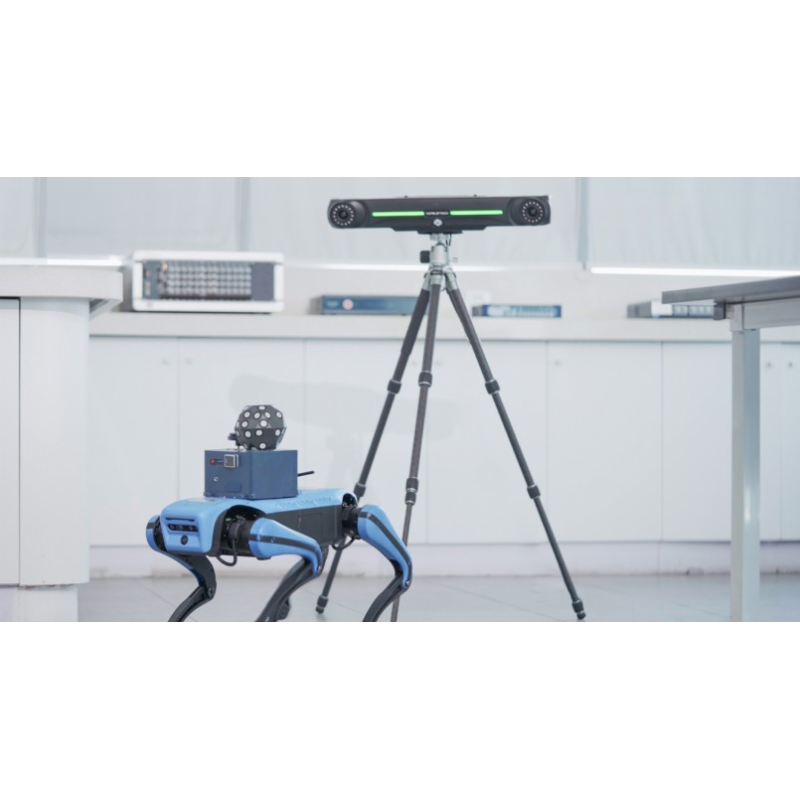

6D Pose Tracking System
Real-Time 6DoF Tracking for Industrial Automation
The 6D Pose Tracking System provides accurate real-time position and orientation tracking for industrial automation, robotics, and dynamic measurement. Advanced optical tracking technology ensures stable performance, seamless integration, and reliable results in demanding manufacturing environments.
- Track 6DoF position and orientation with high precision.
- Monitor dynamic movement in real time using optical tracking.
- Integrate easily with robots, scanners, and automation systems.
- Improve accuracy for robot calibration and motion analysis.
- Support industrial automation, aerospace, quality inspection, and research applications.
Advanced 6D Optical Pose Tracking Technology

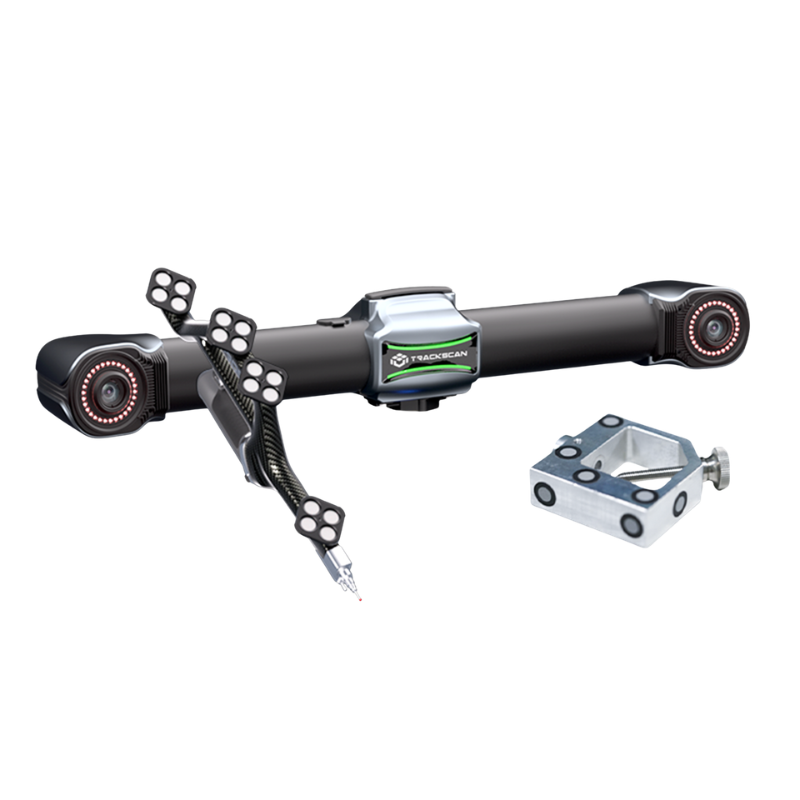

The system consists of optical trackers, customized adapters, a precision probe, and dedicated 3D software, delivering high-accuracy pose data for demanding industrial applications.
The 6D Pose Tracking System is an industrial-grade optical tracking solution designed for accurate real-time measurement of full six degrees of freedom (6DoF). It captures precise 3D position (X, Y, Z) and orientation (pitch, roll, yaw) data across the entire field of view, overcoming the limitations of traditional coordinate measurement systems.
Built on advanced stereo vision localization and optical tracking technology, it transforms static position monitoring into dynamic real-time pose tracking and control.
Real-Time 6DoF Tracking with Edge Computing
Engineered with onboard processing and intelligent Edge Computing capabilities, the system efficiently handles image processing and coordinate computation in real time.
By reducing the computational load on external computers, it ensures stable, high-speed performance while maintaining exceptional measurement reliability.
The integrated dynamic compensation algorithm detects and corrects pose deviations even in vibrating, complex, or harsh industrial environments.
Key Advantages of the 6D Pose Tracking System
-Real-time 6DoF motion tracking
-High-precision optical position measurement
-Multi-target simultaneous tracking
-Dynamic vibration and motion compensation
-Non-contact optical tracking technology
-Plug-and-play industrial integration
-Expandable multi-tracker configuration for large-scale environments
Industrial Applications
The 6D optical tracking system is ideal for:
-Automotive crash testing and vehicle dynamics analysis
-Aerospace equipment assembly and alignment
-Robot calibration and accuracy enhancement
-Absolute positioning correction
-Precision manufacturing and advanced quality control
With its combination of advanced optical tracking, robust algorithms, stereo vision technology, and industrial-ready design, the 6D Pose Tracking System delivers a new level of precision, stability, and flexibility in real-time industrial tracking and measurement workflows.
It is engineered to enhance productivity, improve measurement consistency, and support high-accuracy industrial automation processes.
NimbleTrack vs TrackScan Sharp Comparison
Technical Specifications
NimbleTrack Series and TrackScan Sharp Series
| NimbleTrack Series | TrackScan Sharp Series | |
|---|---|---|
| Tracking distance | 3.2 m | 8.5 m |
| Tracking frequency | 90 Hz | 100 Hz |
| Tracking accuracy | 0.064 mm (3.2 m) |
0.048 mm (3.5 m) 0.069 mm (5.2 m) |
| Adapter | Customized | Customized |
| Operating temperature range | -10–40 °C | -10–40 °C |
| Operating humidity (Non-condensation) | 10–90% RH | 10–90% RH |
| Connection | USB 3.0, Network Interface, WiFi | USB 3.0, Network Interface, WiFi |
| Patents |
CN211121096U, CN210567185U, CN111678459B, CN114001696B, CN114554025, CN113514008B, CN114627249B, CN112867136B, CN218103220U, CN218103238, CN113340234B, CN112964196B, CN115289974B, CN113188476B, CN218411072U, CN115325959B U, CN307756797SB, CN114205483B, CN218584004U, CN115661369B, CN218734448U, CN115493512B, CN110992393, CN113432561B, CN219834226U, CN219829788U, CN116244730B, CN116206069, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, US11493326B2, CN109000582B |
CN109000582B, CN110992393B, CN111678459B, CN111694665B, CN112802002B, CN112964196B, CN113188476B, CN113340234B, CN113432561B, CN113473034B, CN113766083B, CN114001696B, CN114205483B, CN114554025B, CN114627249B, CN115289974B, CN112867136B, CN113514008B, CN115325959B, CN115493512B, CN115511688B, CN115661369B, CN115690333B, CN116136396B, CN116206069B, CN116244730B, CN209263911U, CN210567185U, CN214149174U, CN218103220U, CN218103238U, CN218411072U, CN218584004U, CN115695763B, CN211121096U, CN218734448U, CN219829788U, CN219834226U, CN307756797S, EP3392831B1, US10309770B2, US11060853B2, US11493326B2, KR102096806B1 |
