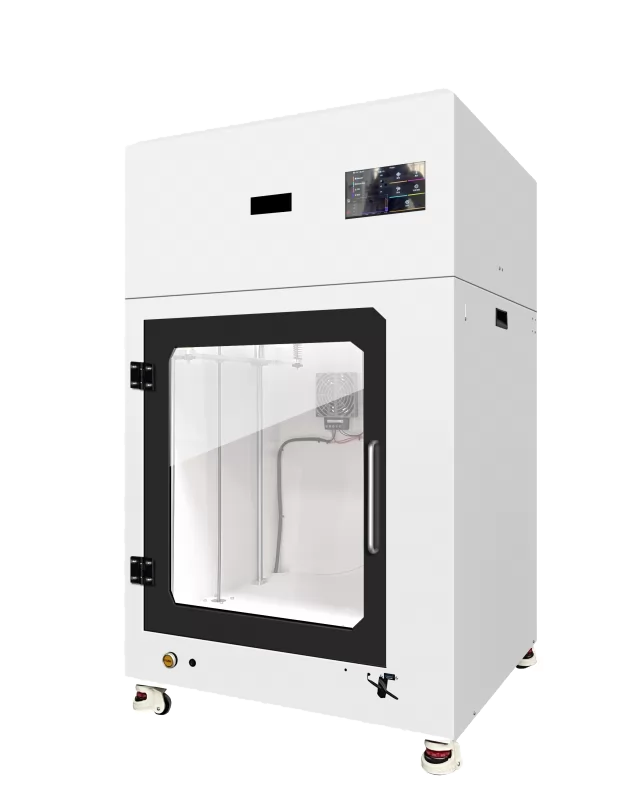

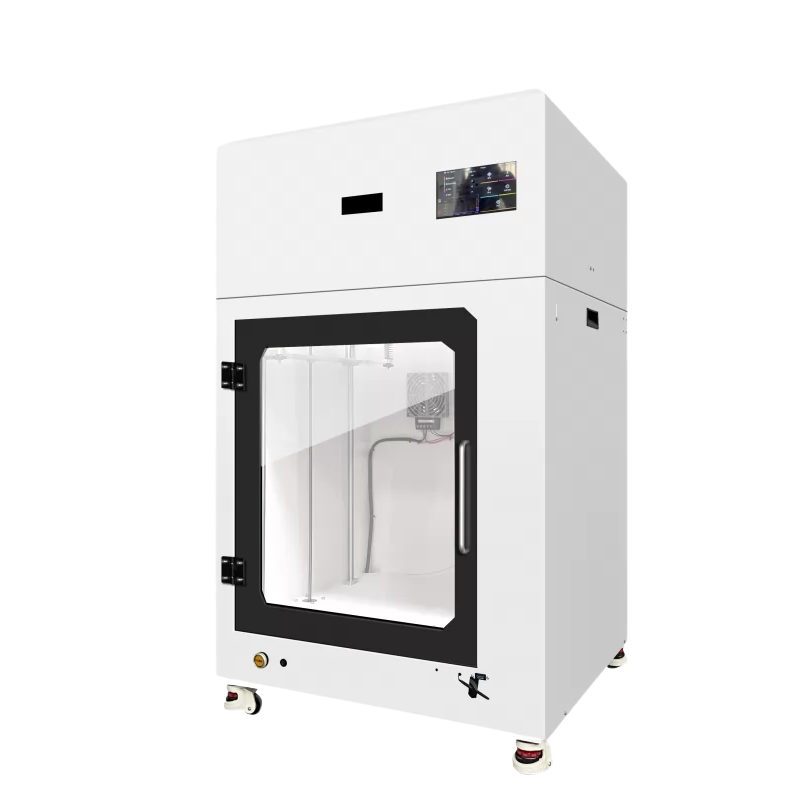

Kings 3D FDM Printer 5060

High-Precision Large-Format Printing

- Klipper high-speed system

- 7-inch HD capacitive touchscreen

- Industrial-grade linear guides for XY axis

- Leadshine high-precision servo motors for XY axis (closed-loop drive)

- Dual Z-axis synchronized integrated leadscrews

- BMG dual gears

- 70W high-power heating rod, Volcano nozzle extruder for high-speed printing

- Internal temperatures up to 60℃, easily printing high-temperature materials like ABS and PLA.

Build Size	500×500×600mm
Machine Size	680×730×1210mm
Printing Technology	Fused Deposition Modeling (FDM)
Layer Resolution	0.05-0.35mm (0.4 Nozzle)
Positioning Accuracy	XY: 0.0011mm, Z: 0.00125mm
Air Filtration System	Dual-fan Filtering
Power Loss Recovery	Yes
Filament run-out Alarm	Yes
Nozzle	1
Printing Color	Single Color
Printing Speed	30-600mm/s
Structure	Fully enclosed (double door type)
Filament Supply	Top-down
Movement	XY axis synchronous belt linear guide rail, double Z-axis mechanical integrated synchronous screw rod
Servo	XY axis Lesai closed-loop servo motor set (42cme08+CL1-507)
Lighting	LED
Nozzle Diameter	0.4/0.6/0.8/1mm
Nozzle Temperature	0-320°C
Display	7-inch Touchscreen
CPU	32-bit ARM CPU Microcontroller
Connectivity	USB Drive, LAN (Wi-Fi)
Power Supply	AC100v-AC240v 50Hz/60Hz
Operation System	Windows, Linux, MAC
File Format	STL, OBJ, GCODE
Appearance	High-temp baking paint sheet metal
Ambient Temperature	15°C-32°C（60°-90°F）
Storage Temperature	0°C-32°C（32°-90°F）
Net Weight	130kg
Printing Bed	Independent powered silicone hot bed + aluminum plate + removable magnetic steel plate
