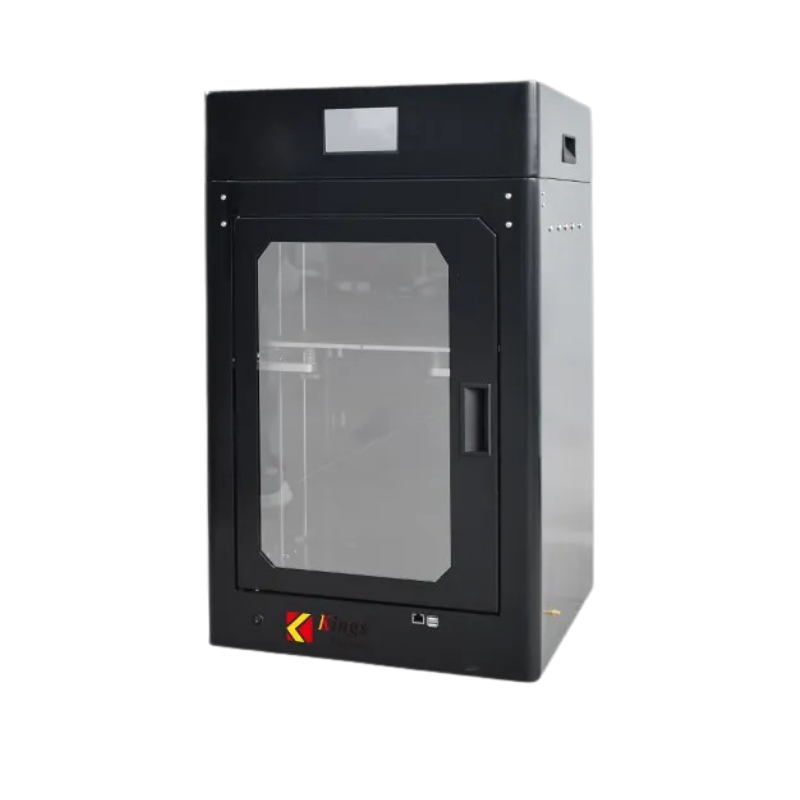

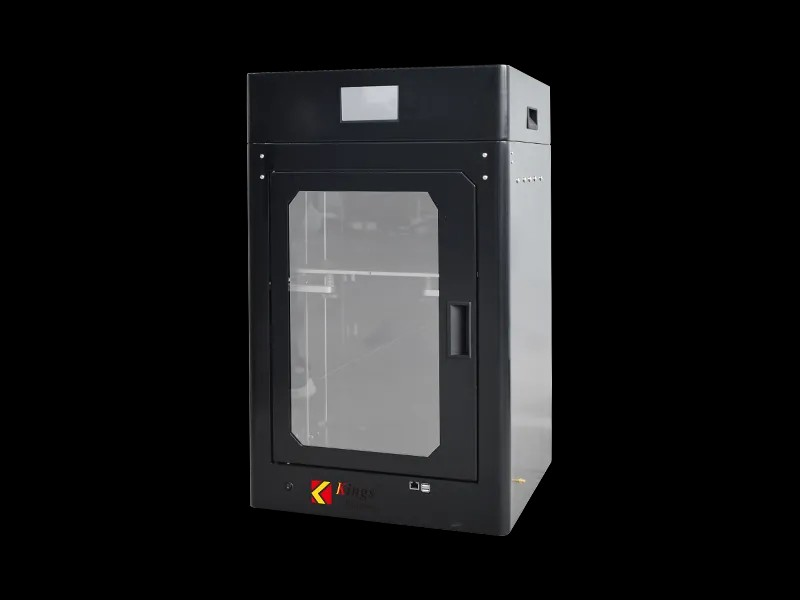

Kings FDM 334 3D Printer
High-precision large-format printing
Product Details
-Build volume: 300 × 300 × 400 mm
-Machine size: 460 × 460 × 760 mm
-Printing technology: Fused Deposition Modeling (FDM)
-Layer resolution: ≥ 0.05 mm
-Positioning accuracy: ≤ 0.0125 mm
-Printing speed: 30 – 180 mm/s
-Nozzle: standard diameter 0.4 mm (optional: 0.2 / 0.3 / 0.4 / 0.6 mm)
-Nozzle temperature: up to 260 °C
-Connectivity: SD card, USB
-Special features: Filament run-out alarm, Power loss recovery
-Gross weight: ≥ 50 kg
| Build Volume | 300×300×400 mm |
|---|---|
| Machine Size | 460×460×760 mm |
| Printing Technology | Fused Deposition Modeling (FDM) |
| Layer Resolution | ≥0.05 mm |
| Air Filtration System | Yes |
| Filament Run-out Alarm | Yes |
| Chamber | Yes |
| Leveling Method | Automatic leveling |
| Nozzle Quantity | 1 |
| Printing Speed | ≤600 mm/s |
| Motion System | CoreXY |
| Drive Motor | TMC2209 |
| Machine Structure | Fully enclosed chamber with constant temperature (double-door design) |
| Filament Storage Box | Externally mounted (hanging type) |
| Lighting Function | Built-in LED lighting |
| Default Nozzle Diameter | 0.4 mm |
| Nozzle Temperature | Max 330 °C |
| Heated Bed Temperature | Max 120 °C |
| Display | 4.5-inch touchscreen |
| Connectivity | USB drive, Wi-Fi |
| Power Requirements | AC100 V–AC240 V, 50 Hz/60 Hz |
| Compatible Operating Systems | Windows, Linux, Mac |
| File Formats | STL, GCODE, OBJ |
| Recommended Operating Temperature | 15–32 °C (60–90 °F) |
| Storage Temperature | 0–32 °C (32–90 °F) |
| Gross Weight | ≥50 kg |
