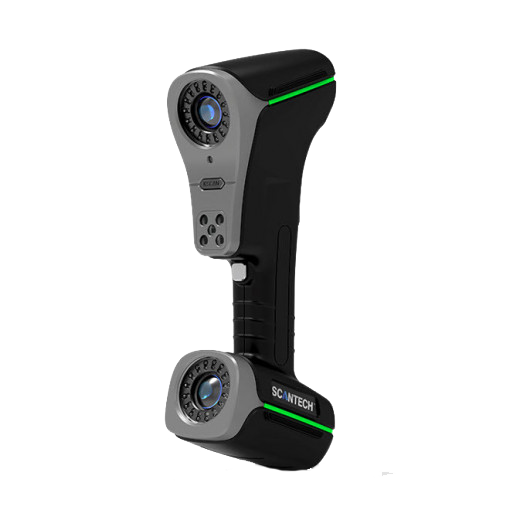

KSCAN Magic II 3D Scanner

KSCAN-Magic series 3D Laser scanners is the first system that includes infrared laser + blue laser technology with 5 operational 3D scanning modes: The infrared laser large area scanning, multiple blue laser crosses fast scanning, 5 blue parallel lasers for a high definition scanning model, plus a single blue laser deep hole access, and built-in photogrammetry system for scanning large objects..

KSCAN-Magic is a high end Metrology 3d Scanner. Its unprecidented 3D scanning speed, accuracy, detail, multiple 3d scanning areaa, and depth of field greatly optimize the 3D metrology workflows. The Kscan CMM Probe which allows you to obtain data in hard-to-reach or complex surfaces. The KSCAN-Magic series 3d Scanner is the ultimate solution for 3D scanning and CMM measurements.

Five Modes at Your Fingertips

Large area scanning

KSCAN-Magic innovatively adopts large-area scanning powered by 11 infrared parallel laser lines. Its ultimate scanning area reaches 1440 mm x 860 mm, achieveing wide-range measurement with ease.

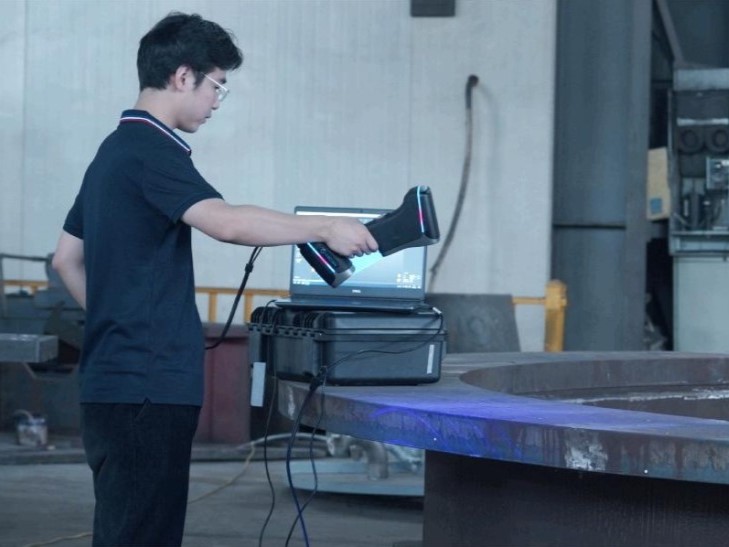

Ultra-fast scanning

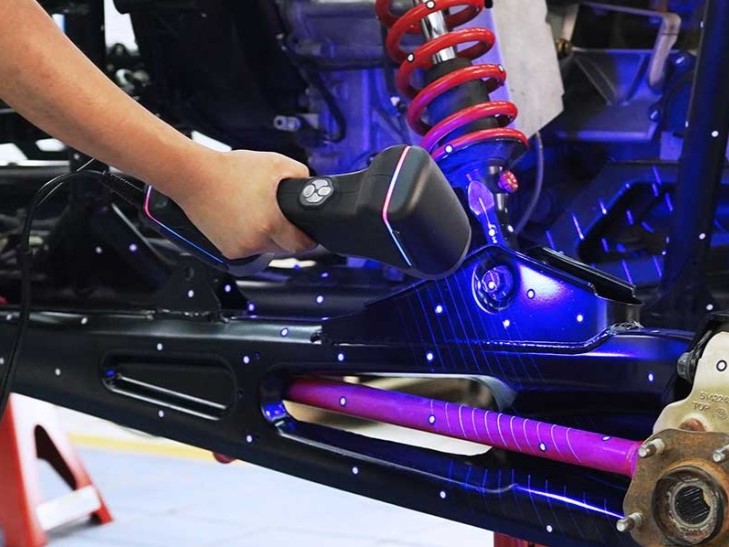

It can 3D scan with 17 blue laser crosses and capture up to 4.150.000 measurements per second, greatly improving work efficiency.

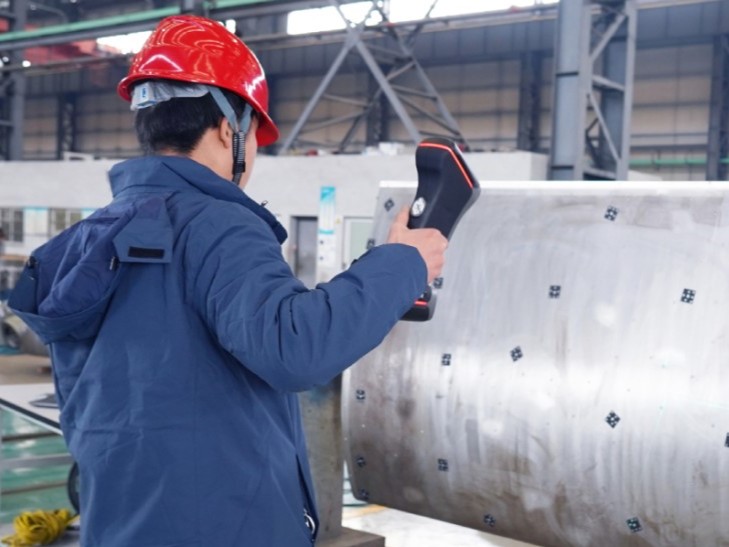

Built in Large-area Photogrammetry

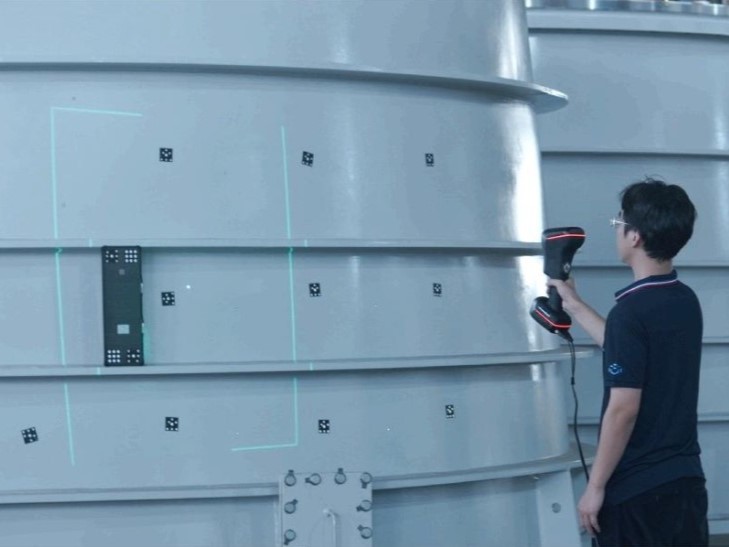

The built-in infrared photogrammetry system, with a shootingarea of 3760 mm x 3150 mm, can efficiently reduce the accumulated errors caused by large-sized measurements, ensuring volumetric accuracy. It is especially suitable for scanning large-sized objects, and measuring efficiently without compromising on accuracy.

Hyperfine scanning

With 7 parallel blue laser lines, KSCAN-Magic Upgrade Series 3D scanner can acuurately obtain complete data complex objects, easily capturing every detail with a maximum resolution of 0.010 mm.

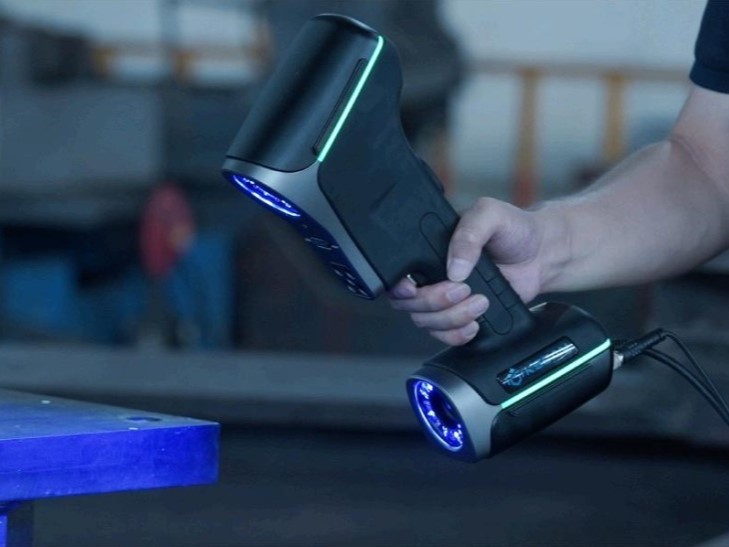

Deep hole scanning

This mode can accurately capture 3D data of deep holes and hard to reach areas.

Innovative Infrared Laser

KSCAN-Magic unique infrared 3D laser scanning technology provides the user with a large 3D scanning area reaches 1000 mm x 1150 mm, Allowing faster capture of large objects with up to 1mm point spacing.

Effortless Efficiency

With 41 laser lines, KSCAN-Magic 3D scanner provides an unprecedented 3d scanning rate of 1,300,000 points per second. While preforming your 3d scan you can change the modes on the fly to allows the capture of deep holes or definition and improving your work flow.

Extreme-clear details

Under the hyperfine parallel scanning mode, KSCAN-Magic 3D scanner can capture fine details in select areas of interest with a resolution of up to 0.010 mm.

Single laser line scanning & Metrology-grade NDT measuring

The Single laser mode accurately allows the 3d scanner to reach down into holes quickly and capture that data. With 0.020 mm of scanning accuracy and 0.03 mm/m of volume accuracy the Kscan can deliver high precision NDT measurements for any industry.

KSCAN-Magic II – Technical Specifications

Scanning Modes

Mode	Specification
Ultra-fast Scanning	17 blue laser crosses
Hyperfine Scanning	7 blue parallel laser lines
Large Area Scanning	11 parallel infrared laser lines
Deep Hole Scanning	1 extra blue laser line

Performance Specifications

Parameter	Value
Accuracy	Up to 0.020 mm (0.0008 in)
Scanning Rate	4,150,000 measurements/s
Scanning Area	1440 mm × 860 mm (57.0 in × 33.9 in)
Laser Class	CLASS II (eye-safe)
Resolution	0.010 mm (0.0004 in)

Photogrammetry System

Parameter	Value
Scanning Area	3760 mm × 3150 mm (148.0 in × 124.0 in)
Depth of Field	2500 mm (98.4 in)

Volumetric Accuracy

Method	Accuracy
Work Alone	0.015 mm + 0.030 mm/m (0.0006 in + 0.00036 in/ft)
Work with 1m Reference Bar	0.015 mm + 0.020 mm/m (0.0006 in + 0.00024 in/ft)
Work with MSCAN-L15	0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft)

Additional Specifications

Parameter	Value
Stand-off Distance	300 mm (11.8 in)
Depth of Field	925 mm (36.4 in)
Output Formats	.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating Temperature Range	-10°C ~ 40°C (14°F ~ 104°F)
Interface Mode	USB 3.0
