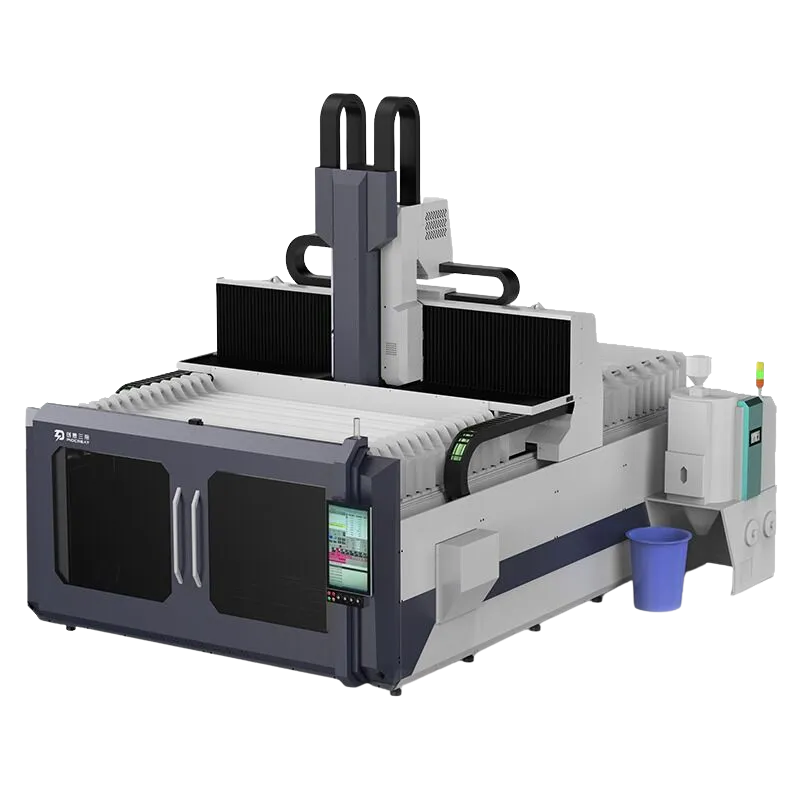

G40
Large-Scale Precision Manufacturing with Additive and Subtractive Technology
Key features
Nozzle Temperature up to 450℃
High Fow Screw Extrusion
Large Working Space
CNC Five-axis Head
Nozzle Temperature Up to 450℃
With its ability to heat up to 450℃, the G40 enables the processing of a vast array of thermoplastics and composites, including PLA, PETG, ABS, PC, PA and other composite materials. This flexibility ensures that users can select the ideal material for each project, tailoring their approach to leverage specific material properties for better outcomes.
High Flow Screw Extrusion
The G40 advances extrusion efficiency with its high-flow, 3-8mm screw nozzles, achieving high flow rates (up to 25kg/hr) and maintaining quality. Its gantry precision is ±0.02mm/1000mm. The printer impressively runs at 10m/min and processes at 15m/min, ideal for additive and subtractive manufacturing, highlighting its rapid and reliable production capabilities.
Large Working Space
The G40 Pellet 3D Printer boasts an impressive large working space of 3725×2500×1330mm, providing ample room for the production of various large-scale components. This spacious build area is ideal for the creation of expansive patterns, full-scale molds, and substantial functional prototypes.
CNC Five-axis Head
The G40 boasts an 8.5KW/24000 hvct and advanced CNC five-axis head for high precision. Its A axis offers +120° and the C axis +320° rotation, ensuring flexibility and top performance. The machine excels in processing thermoplastics, carbon fiber, and engineering-grade polymers with outstanding accuracy and ease.
Why Choose FGF Pellet 3D Printer?
Reduce Costs
Pellet extrusion 3D printing offers significant savings, cutting costs up to 10X compared to traditional filament-based methods.
Shorten Lead Times
Enjoy speeds up to 10X faster than conventional filament extrusion 3D printing, drastically reducing project lead times.
Excellent Material Properties
Use original materials for optimal material properties, ensuring enhanced performance of printed components through superior quality.
Eco-Friendly
Our 3D printing innovation uses pellets and shredded recycled plastic for sustainable, eco-friendly additive manufacturing alternatives.
Application
Previous
Next
| Molding Technology | FGF Fused Granulate Fabrication |
|---|---|
| Build Volume | 3725 × 2500 × 1330 mm |
| Machine Size | 5962 × 4220 × 4800 mm |
| Discharge Structure | Screw Extrusion |
| Nozzle Number | Single Nozzle |
| Nozzle Temperature | ≤450°C |
| Heating Bed Temperature | ≤200°C |
| Particle Diameter | 2–5 mm |
| Precision and Repeatability | 0.018 / 1000 mm |
| Print Layer Thickness | 0.2–1.0 mm |
| Nozzle Diameter | 3–8 mm |
| Flow Rate | 25 kg/h |
| Rated Power | 65 KW |
| File Format | STL / OBJ / AMF |
| Transfer Method | U Disk / WiFi Printing |
| Slicing Software | Piocreat Slicer / Cura / Simplify3D |
| Warranty | 12 months manufacturer’s warranty |
| Technical Support | Unlimited lifetime technical support |
