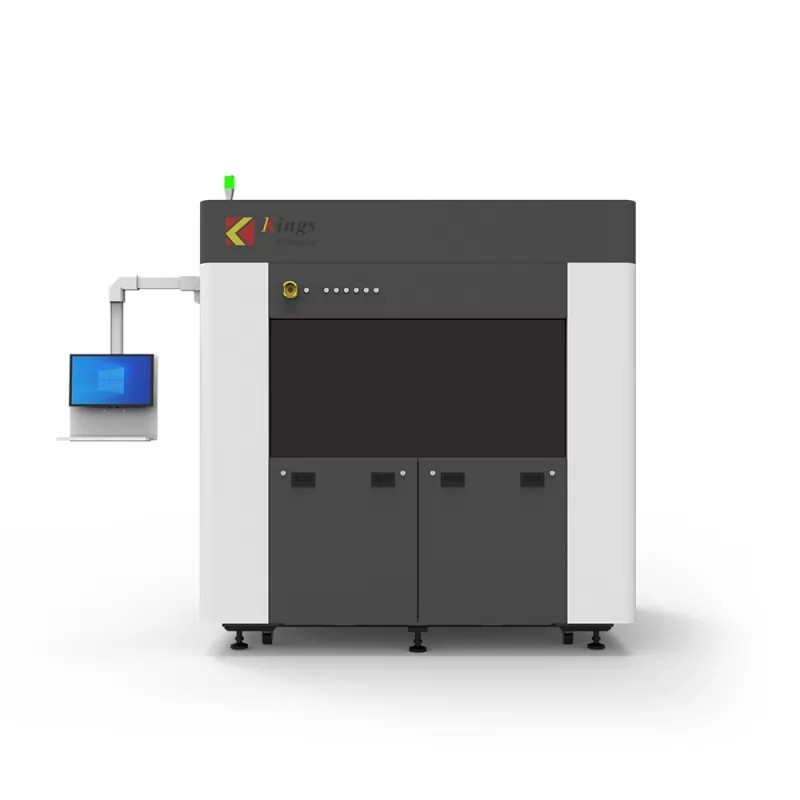

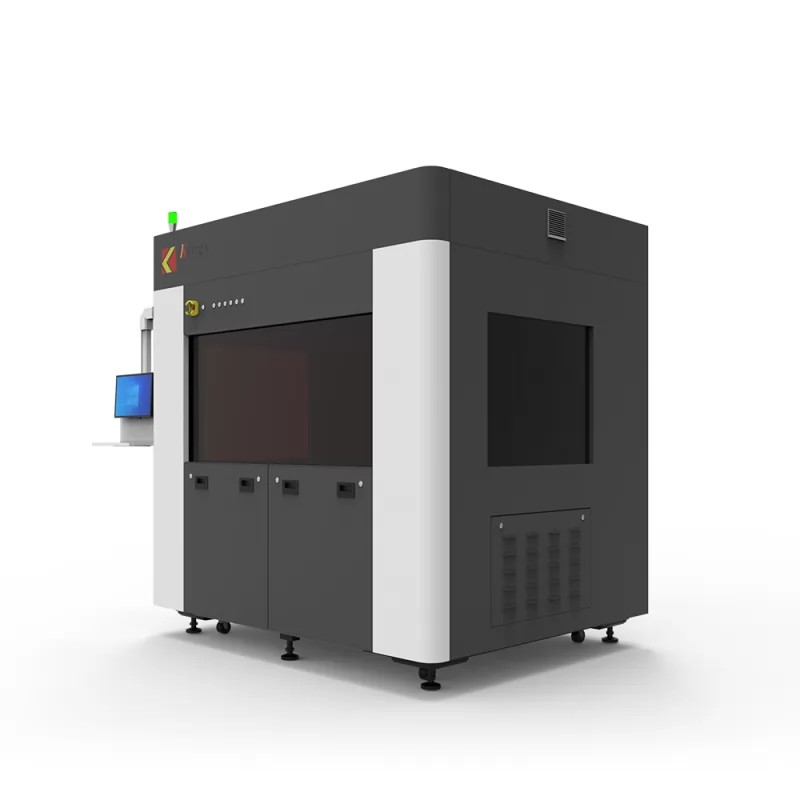

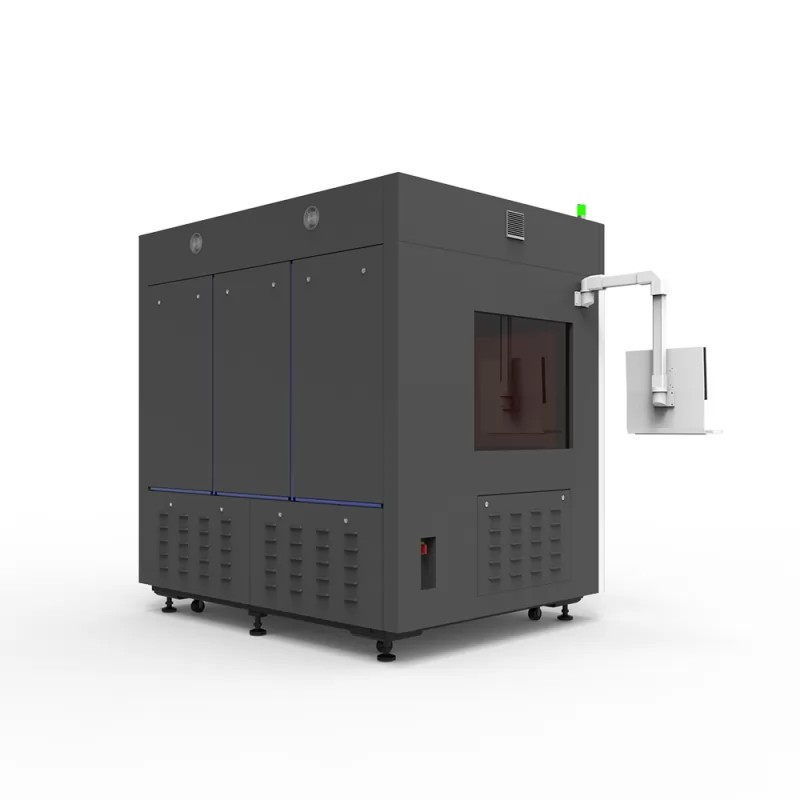

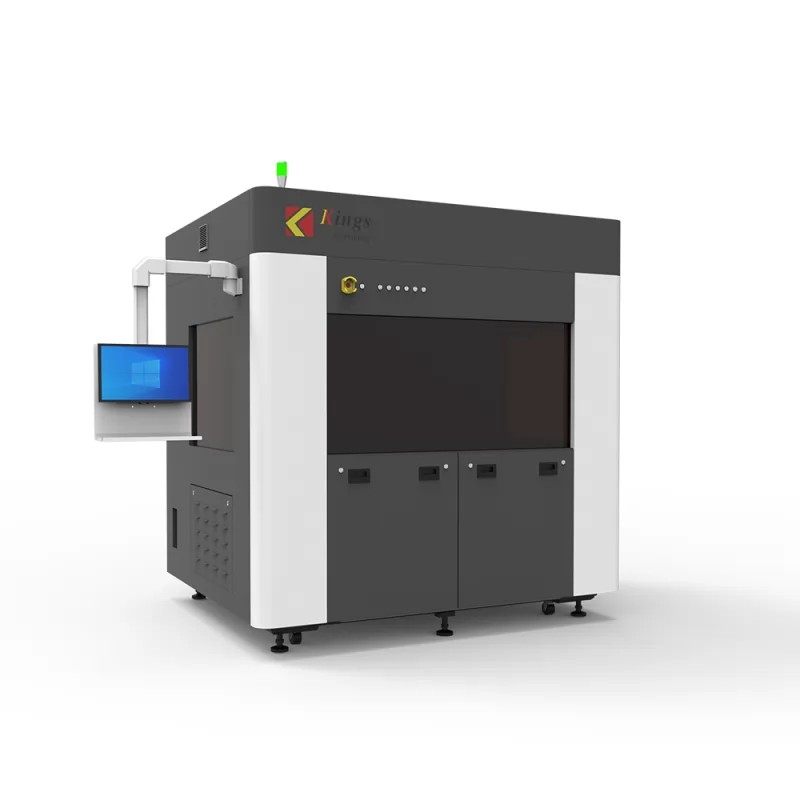

KINGS 1450Pro – Industrial SLA 3D Printer for Large Prototypes and Extended Mold Production
KINGS 1450Pro – Industrial SLA 3D Printer with Ultra-Large Volume and High Precision
The KINGS 1450Pro is designed for industries that require very large prototypes, complex architectural models, and extended molds. With an impressive build volume of 1450 × 800 × 650 mm, this machine combines speed, precision, and reliability to meet the most demanding industrial needs.
KINGS 1450Pro – Industrial SLA Performance with Extended Volume and Precision
Fast scanning: up to 15 m/s
Nd:YVO4 laser (355 nm, ≥300 mW), with a variable spot size of 0.08–0.8 mm
Vertical resolution: 0.0005 mm
Positioning accuracy: ±0.01 mm
Layer thickness: 0.05–0.2 mm
Robust marble frame with intelligent vacuum recoating for long-term stability
Machine weight: 2550 kg, rated power consumption 2.2 kVA, resin tank capacity ~1090 kg
KINGS 1450Pro – Industrial Versatility from Automotive to Art
Automotive & aerospace – large structural models and functional test prototypes
Architecture & design – full-scale mock-ups and customized prototypes
Footwear industry – molds for soles and large shoe-related components
Education & research – advanced large-scale prototyping
Art & creative industries – oversized sculptures and highly detailed display models
Why Choose KINGS 1450Pro?
Industrial-grade capacity – massive build volume of 1450 × 800 × 650 mm
Guaranteed precision and consistency – 0.05–0.2 mm layers, ±0.01 mm positioning
Robust reliability – marble frame and premium OEM components
High productivity – scanning speed up to 15 m/s and ~1090 kg resin tank
Reduced cost per part – optimized resin usage and 2.2 kVA energy consumption
Advanced Kings 3D software – intuitive interface and closed-loop control
Dedicated technical support – 2-year warranty and full assistance
Technical Specifications – KINGS 1450 Pro
Basic Information
| Maximum Build Size | 1450 × 800 × 650 mm |
|---|---|
| Machine Dimensions | 222 × 177 × 230 cm (L × W × H) |
| Power Consumption | 2.2 KVA |
| Machine Weight | 2550 kg |
Laser System
| Laser Type | Solid-state frequency tripled Nd:YVO4 |
|---|---|
| Wavelength | 355 nm |
| Power | ≥ 300 mW on resin surface |
Optical and Scanning System
| Variable Beam System | Galvo / Closed-loop |
|---|---|
| Beam Diameter | 0.08 – 0.8 mm (variable) |
| Maximum Scanning Speed | 15.0 m/s |
Recoating System
| Main Structure | Marble recoater frame, marble elevator support, marble scanning system base |
|---|---|
| Layer Application Method | Vacuum recoating, intelligent positioning |
| Vertical Resolution | 0.0005 mm |
| Repeated Positioning Accuracy | ±0.01 mm |
| Layer Thickness | 0.05 – 0.2 mm |
| Accuracy |
|
Control Software
| Motion Control System | Closed-loop |
|---|---|
| Machine Control Software | KINGS 3D |
| Input File Format | STL / SLC |
| Operating System | Windows 10 |
| Network and Protocol | Ethernet, TCP/IP |
Installation Conditions
| Power Supply | 200 – 240 VAC, 50/60 Hz, single-phase, 10A |
|---|---|
| Ambient Temperature | 20 – 26 ºC (72 – 79 ℉) |
| Relative Humidity | < 40%, non-condensing |
| Initial Resin Tank | 1090 kg |
Warranty
| Machine | 2 years |
|---|---|
| Laser | 2 years |
