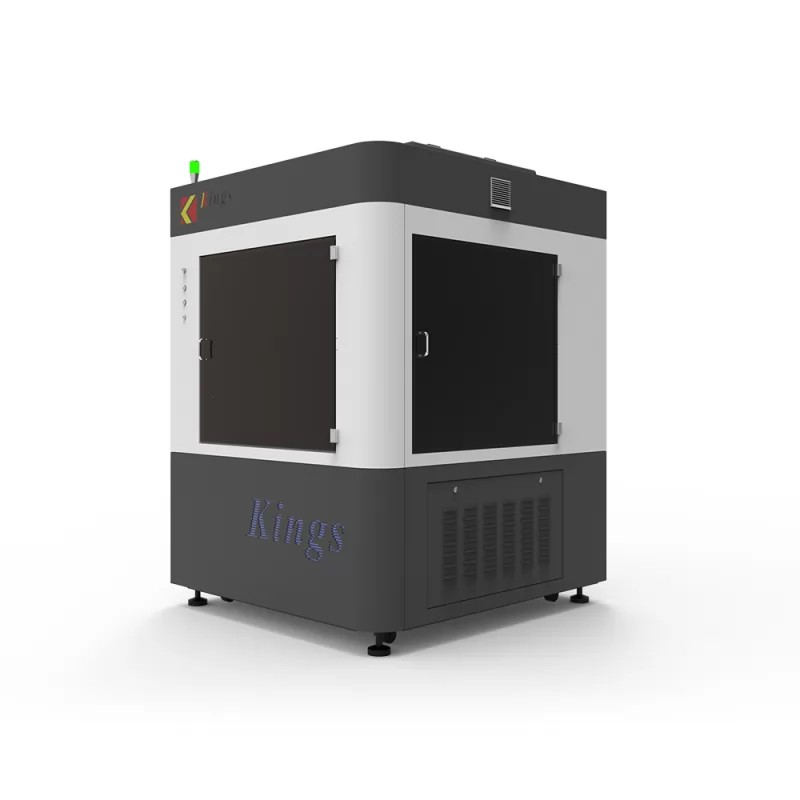

KINGS 1200Pro – Industrial SLA 3D Printer
lei0.00
Tax included
Share on
KINGS 1200Pro – Industrial SLA 3D Printer for Extra-Large Volume Production
KINGS 1200Pro – Large-Format Industrial SLA 3D Printer
The KINGS 1200Pro is a high-performance solution for large-scale prototyping, architectural development, and industrial mold production. With its massive build volume of 1200 × 800 × 650 mm, this SLA 3D printer integrates a powerful Nd:YVO4 laser, scanning speeds up to 15 m/s, and a robust marble frame, ensuring outstanding stability and accuracy over long-term use.
KINGS 1200Pro – Industrial SLA 3D Printer with Extended Build Volume and High-Precision Specifications
Extra-large build volume: 1200 × 800 × 650 mm – ideal for oversized industrial parts
High scanning speed: up to 15 m/s for faster prototyping
Nd:YVO4 laser, 355 nm, ≥300 mW, with variable spot size 0.075–0.8 mm
Intelligent vacuum recoating system with marble frame
Vertical resolution: 0.0005 mm
Mechanical accuracy: ±0.01 mm positioning
Layer thickness: 0.05–0.25 mm
Large resin tank capacity: ~940 kg for continuous production
Rated power consumption: 2.2 kVA for energy efficiency
Kings 3D software: closed-loop control with open parameters
Automotive & aerospace – large functional parts, test prototypes, and complex structural components
Architecture & design – large-scale models, detailed mock-ups, and customized elements
Footwear industry – molds and prototypes for soles, rapid small-batch production
Education & research – experimental prototyping and material testing
Art & creative industries – large sculptures, installations, and design objects
Why Choose KINGS 1200Pro?
Fast and scalable production
Industrial stability and precision
Increased productivity thanks to the large resin tank
Intuitive software and energy efficiency
Technical Specifications – KINGS 1200 Pro
Basic Information
| Maximum build volume | 1200 × 800 × 650 mm |
|---|---|
| Machine dimensions | 198 × 177 × 230 cm (W × D × H) |
| Power consumption | 2.2 KVA |
| Machine weight | 2350 kg |
Laser System
| Laser type | Solid-state frequency tripled Nd:YVO4 |
|---|---|
| Wavelength | 355 nm |
| Power | ≥ 300 mW at resin surface |
Optical & Scanning System
| Variable beam system | Galvo / Closed-loop |
|---|---|
| Beam diameter | 0.075 – 0.8 mm (variable) |
| Maximum scanning speed | 15.0 m/s |
Recoating System
| Main structure | Marble recoater frame, marble elevator support, marble scanning system base |
|---|---|
| Layer application mode | Vacuum recoating, intelligent positioning |
| Vertical resolution | 0.0005 mm |
| Repeat positioning accuracy | ±0.01 mm |
| Layer thickness | 0.05 – 0.2 mm |
| Accuracy |
|
Control Software
| Motion control system | Closed-loop |
|---|---|
| Machine control software | KINGS 3D |
| Input file format | STL / SLC |
| Operating system | Windows 10 |
| Network & protocol | Ethernet, TCP/IP |
Installation Conditions
| Power supply | 200 – 240 VAC, 50/60 Hz, single-phase, 10A |
|---|---|
| Ambient temperature | 20 – 26 ºC (72 – 79 ℉) |
| Relative humidity | < 40%, non-condensing |
| Initial resin tank | 940 kg |
Warranty
| Machine | 2 years |
|---|---|
| Laser | 2 years |
