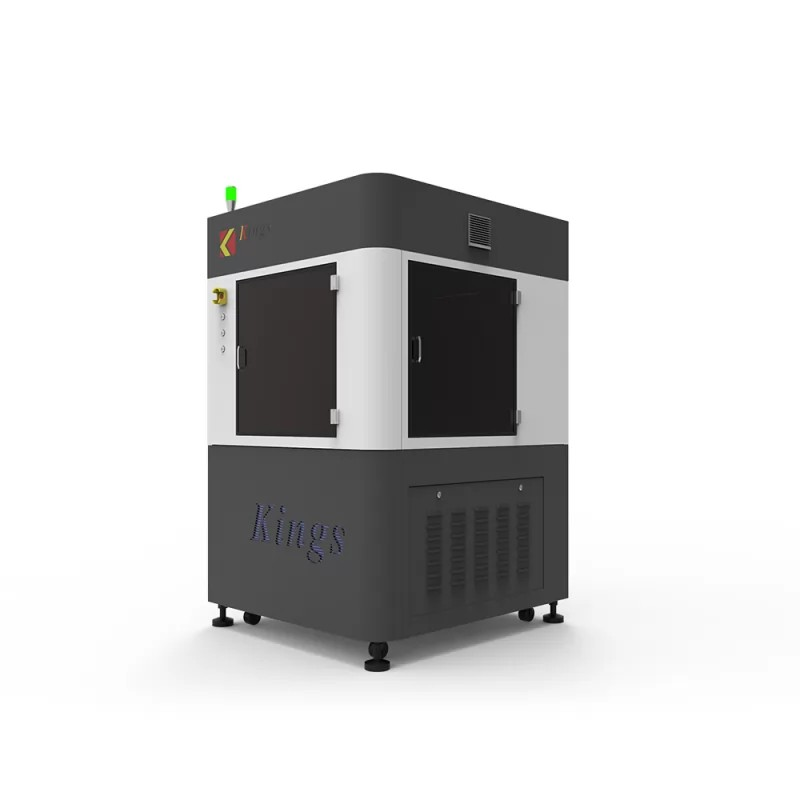

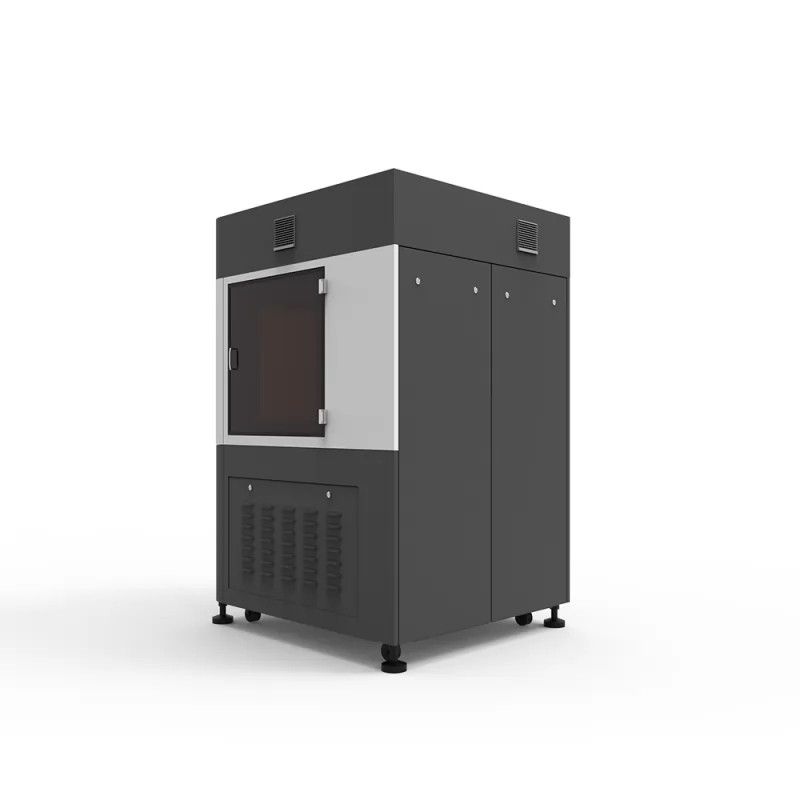

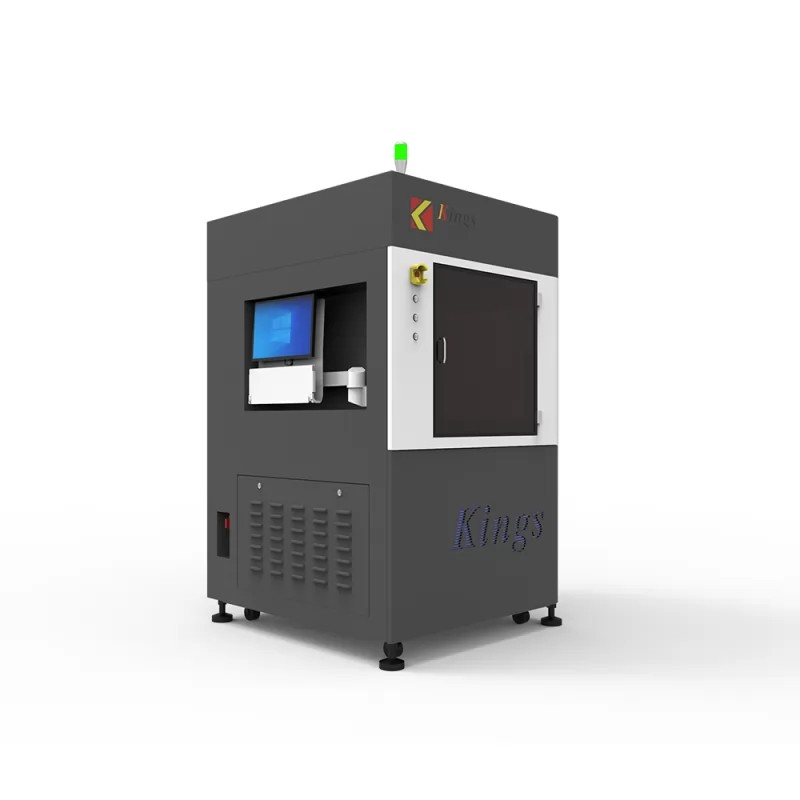

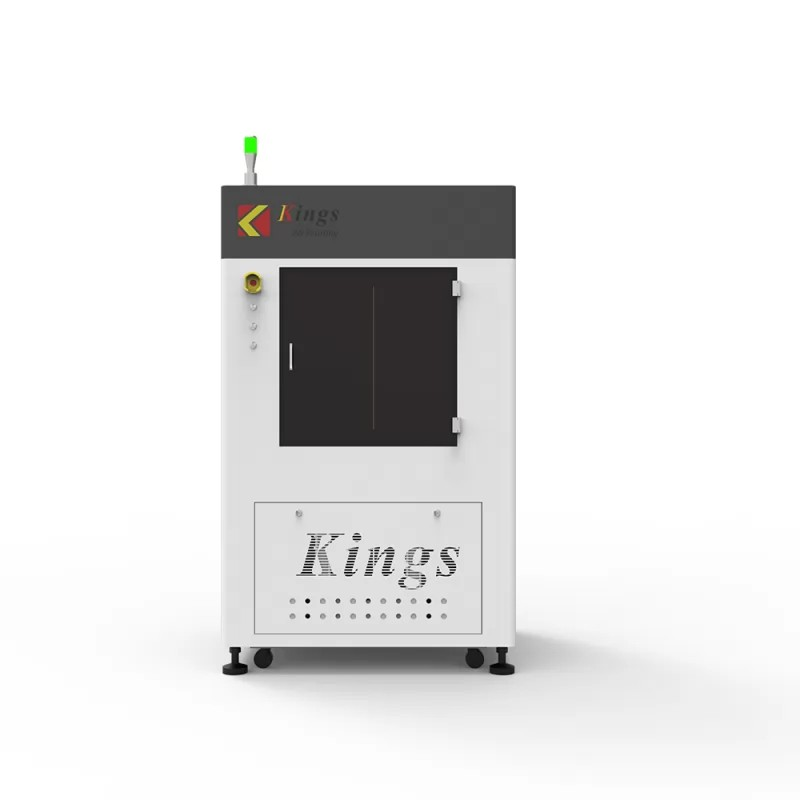

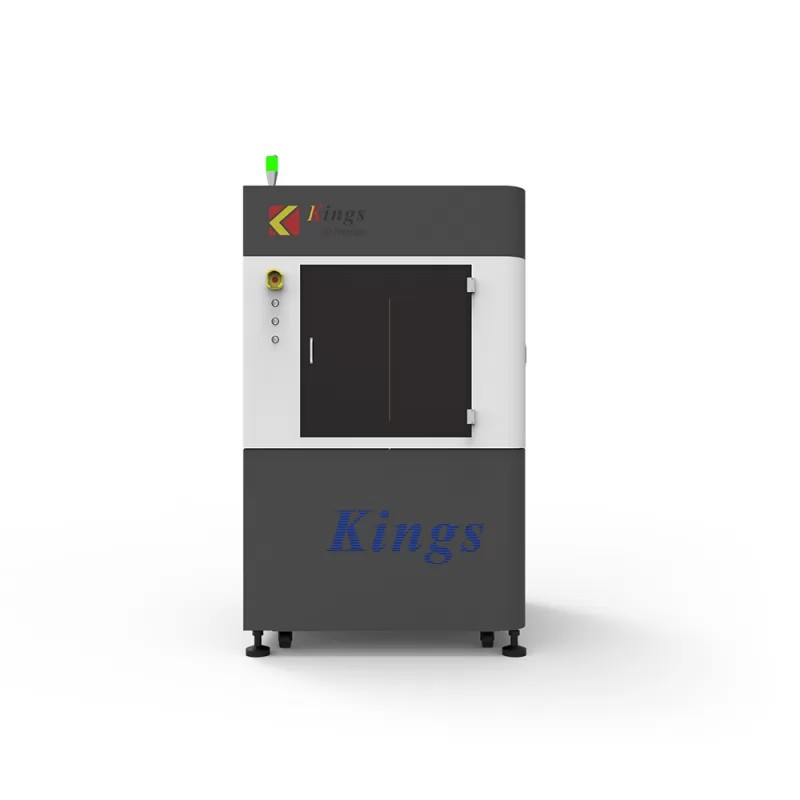

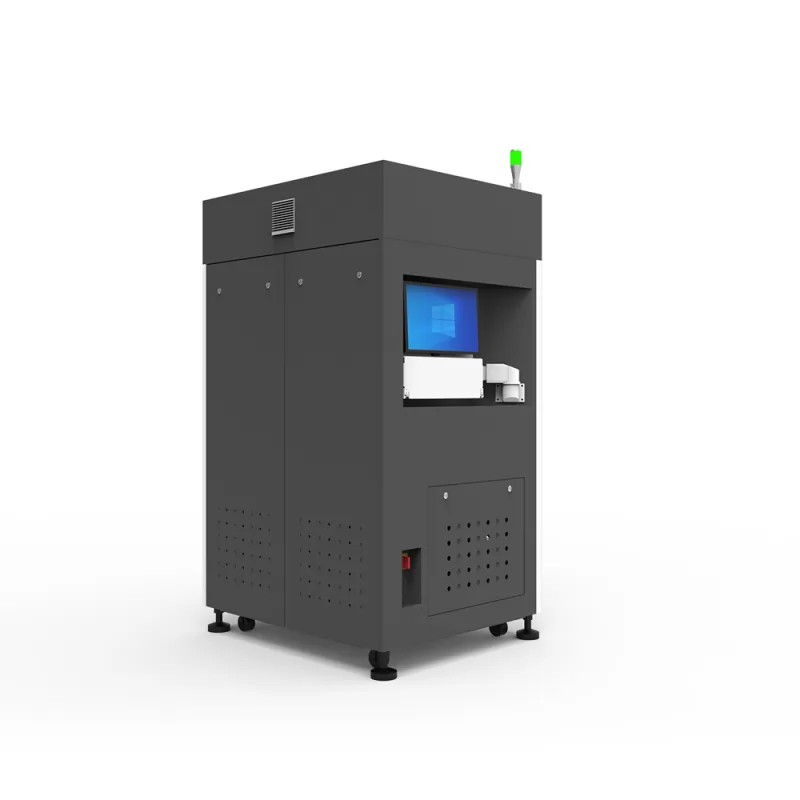

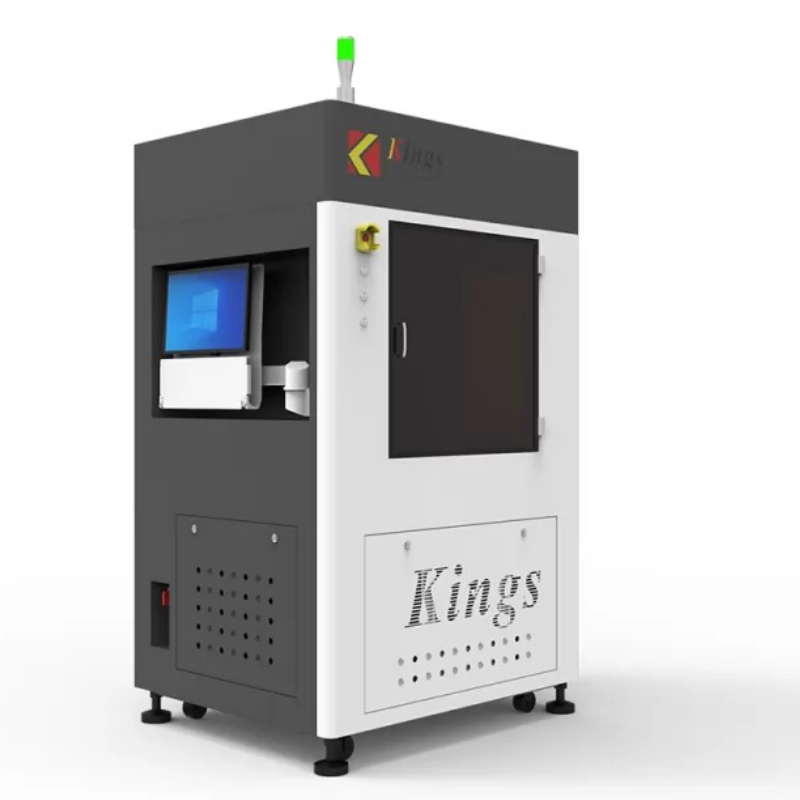

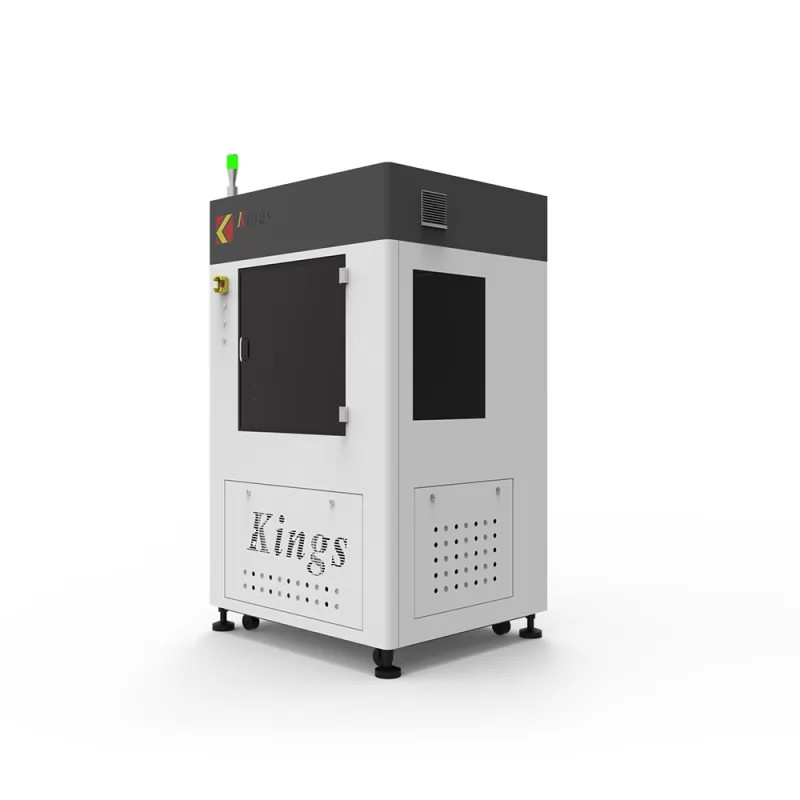

KINGS 600Pro – Medium-Large Format Industrial SLA 3D Printer
Kings 600Pro – The SLA Solution for Companies Requiring Large Prototypes and Precise Molds
The KINGS 600Pro is a professional SLA solution for companies that require precise prototypes, architectural models, molds, and functional parts. With a build volume of 600×600×400 mm, this printer combines the performance of the Nd:YVO4 laser, scanning speeds up to 15 m/s, and the stability of a marble frame, ensuring long-term reliability.
Kings 600Pro 3D Printer – Speed, Stability, and Fine Details for Industrial Production
Large build volume: 600×600×400 mm
Scanning speed: up to 15 m/s
Nd:YVO4 Solid-State Laser, 355 nm, ≥300 mW
Variable beam: 0.08–0.8 mm
Initial resin tank: 225 kg
Accuracy: up to ±0.1 mm (L ≤100 mm)
Marble frame for rigidity and durability
Kings 3D software with closed-loop control
Recommended Applications
Industrial prototyping – large and functional parts
Architecture – detailed models and complex structures
Mold production – footwear, automotive, aerospace
Design & Art – custom prototypes, complex details
Why Choose KINGS 600Pro?
Large capacity in a compact frame
Reduced cost per part thanks to energy efficiency (1.5 kVA)
Top-class accuracy and stability
Dedicated technical support and robust software
Technical Specifications
Basic Information
| Max Printing Size | 600×600×400 mm |
|---|---|
| Machine Size | 118×129×217 cm (W×D×H) |
| Power Consumption | 1.5 KVA |
| Machine Weight | 990 kg |
Laser System
| Laser Type | Solid-state frequency tripled Nd:YVO4 |
|---|---|
| Wavelength | 355 nm |
| Power | Resin surface power ≥ 300 mW |
Optical & Scanning System
| Variable Beam System | Galvo / Closed-loop |
|---|---|
| Beam Diameter | 0.08–0.8 mm (variable) |
| Max Scanning Speed | 15.0 m/s |
Recoating System
| Main Structure | Marble recoater frame, marble elevator support, marble scan system base |
|---|---|
| Recoating Method | Vacuum recoating with intelligent positioning |
| Vertical Resolution | 0.0005 mm |
| Repeat Positioning Accuracy | ±0.01 mm |
| Layer Thickness | 0.05 mm ~ 0.25 mm |
| Accuracy | L ≤ 100 mm: ±0.1 mm; L > 100 mm: ±0.1% × L |
Control Software
| Motion Control System | Closed-loop |
|---|---|
| Machine Control Software | KINGS 3D control software |
| Input File Format | STL / SLC |
| Operating System | Windows 10 |
| Network & Protocol | Ethernet, TCP/IP |
Installation Conditions
| Power Supply | 200–240 VAC, 50/60 Hz, single-phase, 10 A |
|---|---|
| Ambient Temperature | 20–26 °C (72–79 ℉) |
| Relative Humidity | < 40%, non-condensing |
| First Resin Tank | 225 kg |
Warranty
| Machine | 2 years |
|---|---|
| Laser | 2 years |
