Pinpoint Precision
High Precision
Platform positioning accuracy is 8um
Resin level 0.03mm
Recoater rim error is <0.02mm
Rapid Printing Speed
Faster speed 30%-50% than traditional
SLA printing technology
Variable laser beam enable to change
the beam size during printing process,
0.5-0.6mm large beam and scanning
the support and border with
0.15-0.2mm small beam.
Excellent Compatibility
Open-Source Design
Allow 355nm resin from all brands without wasting

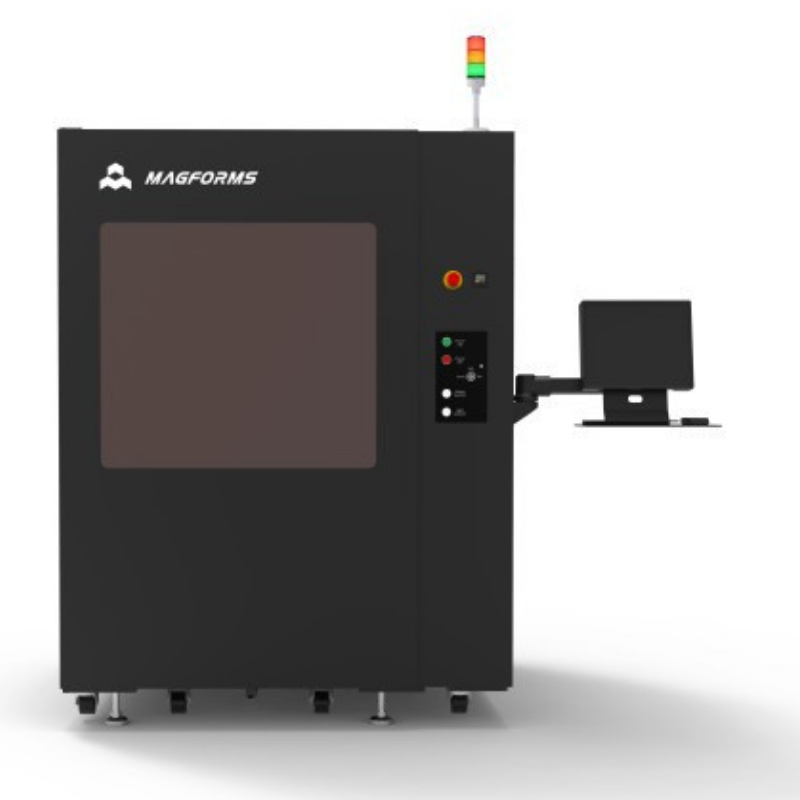

◆ 3D Printer Technical Specifications – Magforms Helios P600
| 3D Printer Size Crated (WxDxH) | 1800 × 1700 × 2200 mm |
| 3D Printer Weight Crated | 1428 kg |
| Electrical Requirements | 220–240 VAC; Single Phase; 2.5 kW |
| Operating Temperature Range | 22–26 °C |
| Humidity Range | 35–45 % RH; Non-condensing |
| Laser | Solid-state frequency-tripled Nd:YVO₄ |
| Recoater Rim | Marble |
| Accessories | UPS, Drain Device, PCA600 Post Curing Apparatus |
| Max Build Volume (xyz) | Flexible build volume options with customized resin vat |
| Full | 600 × 600 × 500 mm; 297 L |
| Custom | The height of the resin vat is customized |
| Resin Vat Capacity | ~350 kg |
| Accuracy | L ≤ 100 mm: ± 0.1 mm; L > 100 mm: ± 0.1 % × L |
| Slicing Thickness | 0.05 – 0.15 mm |
| Intelligent Scanning Strategy | Viable Laser Beam |
| XY Resolution | 0.025 mm |
| Fine Feature / Outer Surface Scanning | 0.15 – 0.2 mm |
| Larger Feature / Internal Surface Scanning | 0.5 – 0.6 mm |
| 3D Printer Software | Magforms iBuild 2.0 |
| Printer Operating System | Windows 10® |
