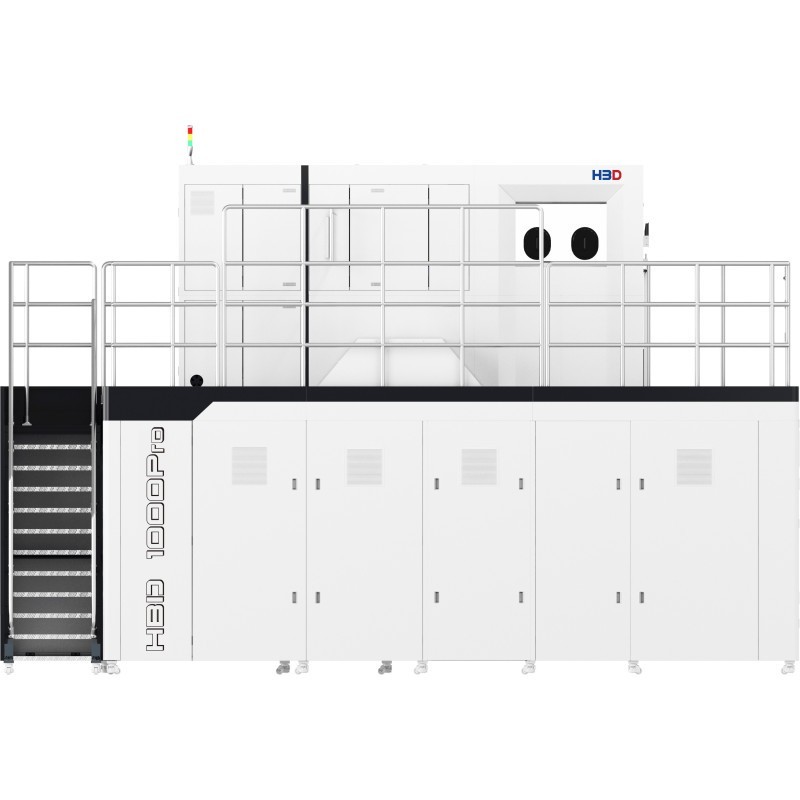

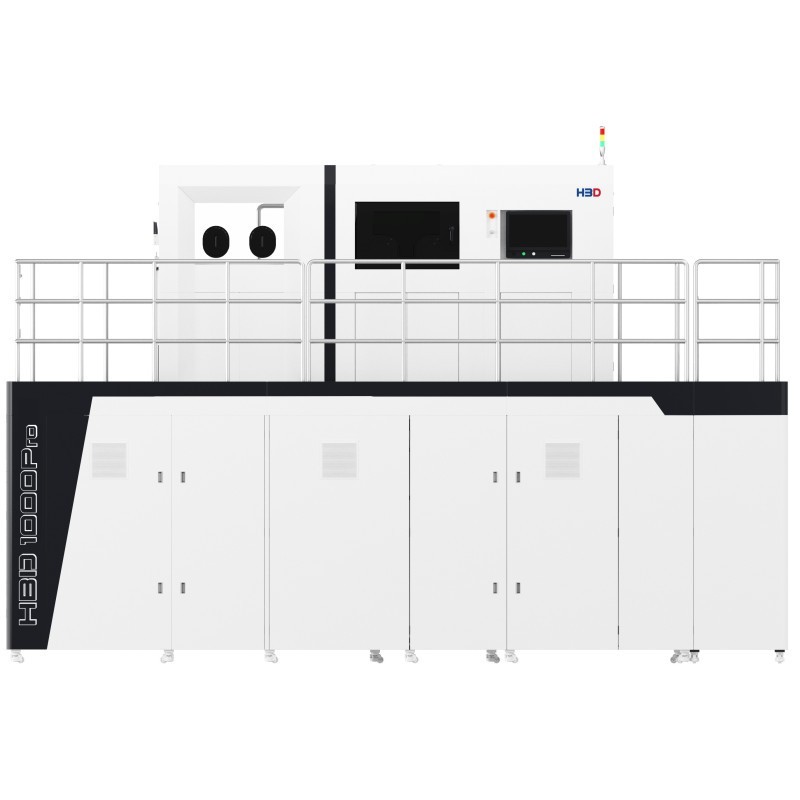

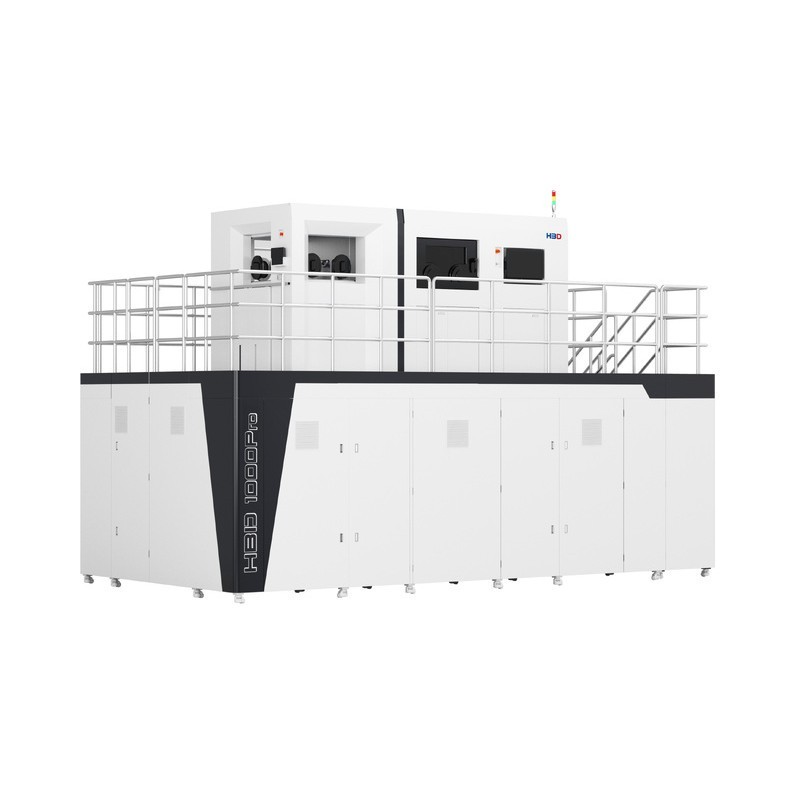

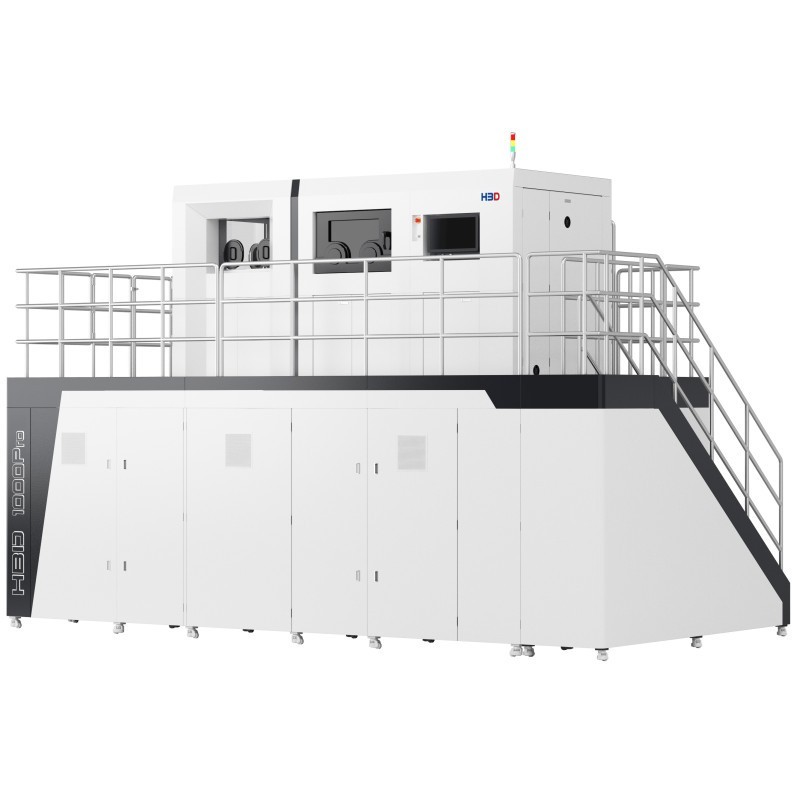

HBD 1000 – Metal 3D Printer Multi Laser 8×500W SLM
The Ultimate Solution for Large-Scale Metal 3D Printing
WHY HBD 1000Pro?
Enhanced Production Capacity
With high production capacity and equipped with eight lasers, the HBD 1000 Multi Laser 8×500W provides a build size of 660×660×1250 mm and a forming volume exceeding 500L. The system supports layer thicknesses between 20 and 120 μm, significantly enhancing printing efficiency and overall productivity.
Cost-Effective & Efficient Operations
Our standard permanent filtration purification system minimizes filter replacement frequency, significantly reducing operating costs - perfect for long-term printing needs. The closed-loop intelligent powder handling system under inert gas protection enhances powder utilization rates and production safety
Superior Quality Printing
\Our advanced gas flow structure effectively eliminates smoke and splatter, ensuring uniform consistency in large-format printed parts. The high-quality beam (M2≤1.1) and seamless alignment guarantees forming accuracy and mechanical performance of printed parts
Intelligent Management System
The built-in industrial-grade camera can monitor powder coating quality and intelligently handle various abnormal situations. The optional thermal imaging online monitoring module can detect temperatures in real-time at different positions of the printing slot, helping optimize printing process parameters. The HBD AMES intelligent management system integrates the HBD System equipment control system and HBD Build expert path planning software, offering parameter openness and customized services.
3D Print Cases
Material : Aluminum Alloy
Size : 600×600×710mm
Weight : 32kg
Industry : Aerospace
Time : 132h
Valve Body
The large sealed impeller structure is composed of 15 complex
thin-walled curved blades, which can be printed in an integrated unit
by metal 3D printing to shorten the manufacturing cycle, reduce the
production process, and ensure the accuracy and consistency.
| Parameter | Specification |
|---|---|
| Build Volume | 660mm × 660mm × 1250mm (height incl. build plate) |
| Laser Power | 8 Lasers, 500W / 1000W |
| Layer Thickness | 20μm – 120μm |
| Scanning Track Width | 70μm – 200μm |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Integral sealed system with automatic monitoring of oxygen content, recycling, cleaning and collection efficiency ≥ 99% |
| Typical Accuracy | 0.05 – 0.2mm |
| Metal Powder | Stainless steel, cobalt-chrome alloy, Hastelloy, titanium alloy, nickel-based alloy, tool steel, aluminum alloy, and some refractory metals such as tungsten and tantalum, etc. |
| Relative Density | 99.9%+ |
| Process Parameter Configuration | Tailored parameter set for specific applications, user-modifiable |
| Weight | Approx. 16000kg |
| External Dimensions | 7050mm × 3630mm × 4480mm |
| Power Supply |
500W: AC380V, 50/60Hz, peak power ≤35kW, average power ≤25kW 1000W: AC380V, 50/60Hz, peak power ≤40kW, average power ≤30kW |
