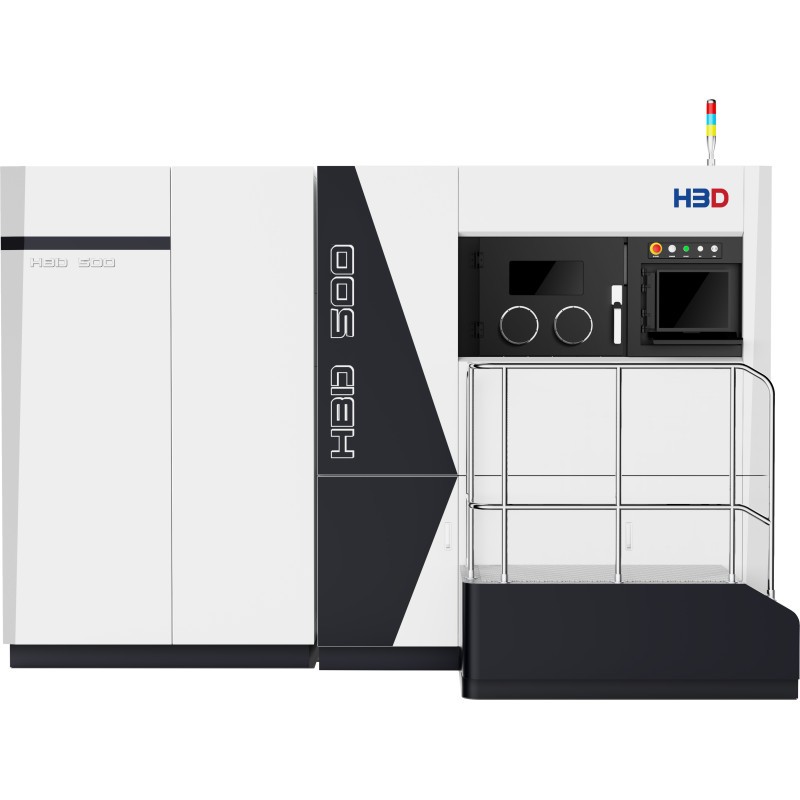

HBD 500 – Metal 3D Printer Quad Laser 4×1kW SLM
- Powered by four 1kW fiber lasers for exceptional printing speed and productivity.
- Large build chamber enables efficient production of complex and medium-to-large metal parts.
- LPBF technology delivers outstanding accuracy, density, and surface quality.
- Compatible with stainless steel, titanium, aluminum alloys, tool steels, and other engineering materials.
- Intelligent monitoring and automated process control ensure reliable manufacturing results.
Share on

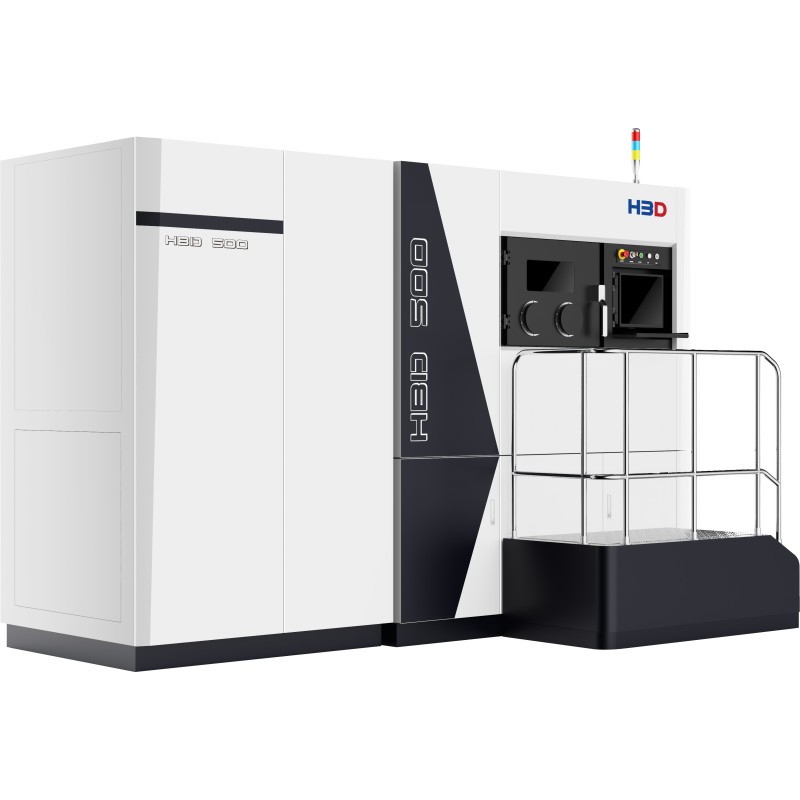

HBD 500 – Metal 3D Printer Quad Laser 4×1kW SLM
High-Performance Metal 3D Printing for Large-Scale Production
WHY HBD 500?
Intelligent Powder Recoating Monitoring System
Featuring front and rear access doors, the HBD 500 Quad Laser 4×1kW allows quick part removal and easy cleaning, ensuring excellent user comfort, ergonomics, and operational efficiency.
Spacious Build Volume
Benefit from a generous build volume, allowing for the production of larger metal components with high precision.
Convenient Front and Rear Hatches
Featuring front and rear access doors, the HBD 500 Quad Laser 4×1kW allows fast part removal and easy cleaning, providing high levels of comfort, ergonomics, and operational efficiency.
Marble Structure for Enhanced Stability and Accuracy
Designed with a solid marble structure, the HBD 500 Quad Laser 4×1kW provides exceptional long-term stability and high printing precision in metal additive manufacturing processes.
3D Print Cases
The metal 3D printing technology is used to re-optimize the design of the cooling channels to speed up the
flow paths, and the cooling flow paths are uniform, which ensures even flow and high heat dissipation
efficiency
Valve Body
Industry: Aerospace
Material: Ni718
Size: 380*419*185mm
Weight: 17982g
Time: 104h 15min
| Parameter | Specification |
|---|---|
| Build Volume | 430mm × 520mm × 520mm (height incl. build plate) |
| Laser Power | 2 Lasers, 500W / 1000W | 4 Lasers, 500W / 1000W | 6 Lasers, 500W / 1000W |
| Layer Thickness | 20μm – 120μm |
| Scanning Track Width | 70μm – 200μm |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection efficiency ≥ 99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05 – 0.2mm |
| Metal Powder | Titanium alloy, aluminium alloy, high temperature alloy, stainless steel, mold steel, etc. |
| Process Parameter Configuration | Tailored parameter set for the specific application, user-modifiable |
| Weight | Est. 4500kg |
| External Dimensions | 2280mm × 1560mm × 2570mm |
| Power Supply |
500W: AC380V, 50/60Hz, peak power ≤16–16.5kW, average power ≤6.5–7kW 1000W: AC380V, 50/60Hz, peak power ≤17–18kW, average power ≤7.5–8.5kW |
