HBD 500 – Metal 3D Printer Quad Laser 4×500W SLM

High-Performance Metal 3D Printing for Large-Scale Production

WHY HBD 500?

Spacious Build Volume

Benefit from a generous build volume, allowing for the production of larger metal components with high precision.

Intelligent Powder Recoating Monitoring System

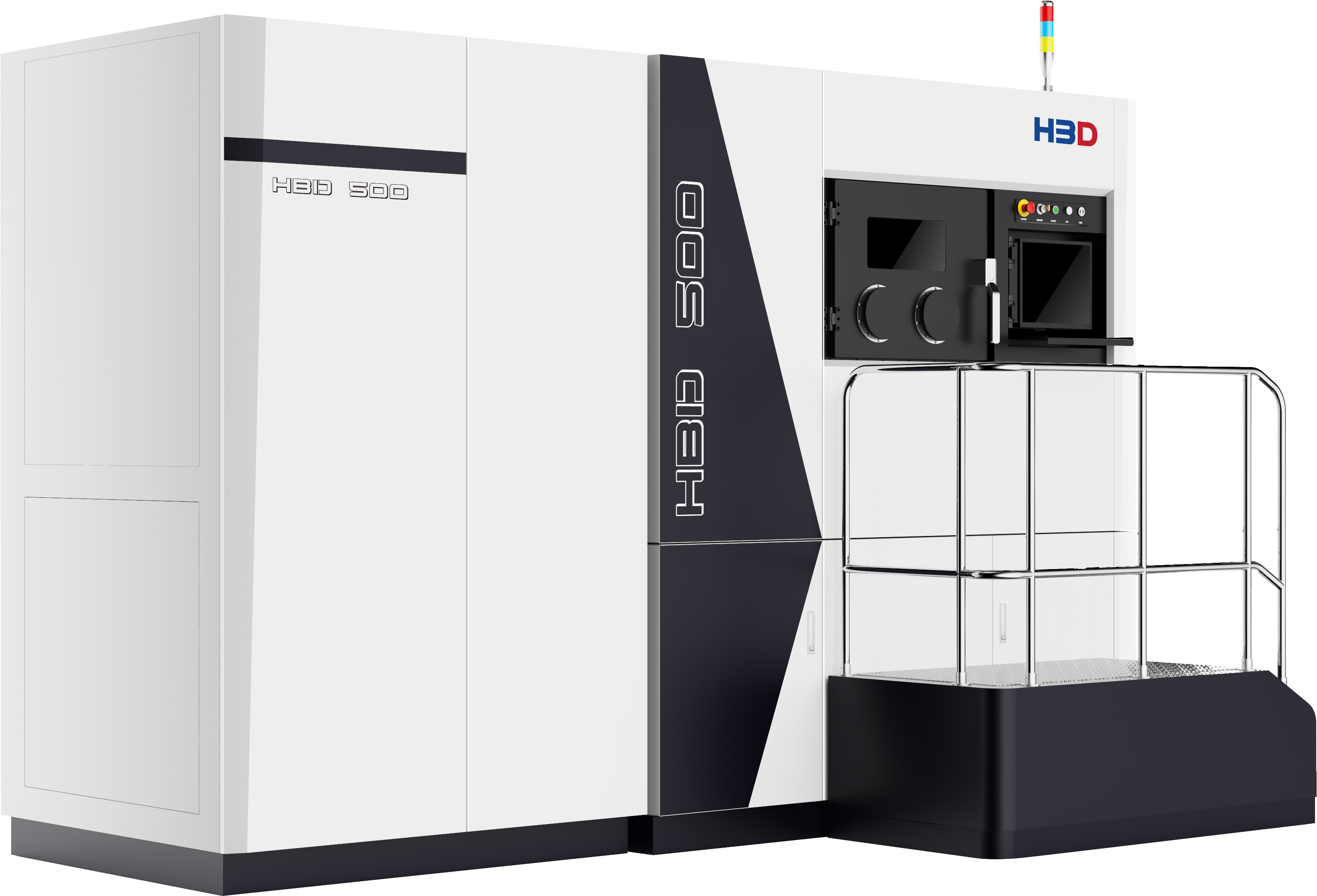

The HBD 500 Quad Laser 4×500W is equipped with an advanced monitoring system that ensures efficient and uniform powder coating, optimizing 3D printing quality and overall production stability.

Marble Structure for Enhanced Stability and Accuracy

Designed with a rigid marble structure, the HBD 500 Quad Laser 4×500W provides enhanced long-term stability and high printing precision in metal additive manufacturing operations.

Convenient Front and Rear Hatches

Featuring front and rear access doors, the HBD 500 Quad Laser 4×500W allows easy part removal and quick cleaning, providing enhanced user comfort and operational convenience.

3D Print Cases

The metal 3D printing technology is used to re-optimize the design of the cooling channels to speed up the

flow paths, and the cooling flow paths are uniform, which ensures even flow and high heat dissipation

efficiency

Valve Body

Industry: Aerospace

Material: Ni718

Size: 380*419*185mm

Weight: 17982g

Time: 104h 15min

Parameter	Specification
Build Volume	430mm × 520mm × 520mm (height incl. build plate)
Laser Power	2 Lasers, 500W / 1000W \| 4 Lasers, 500W / 1000W \| 6 Lasers, 500W / 1000W
Layer Thickness	20μm – 120μm
Scanning Track Width	70μm – 200μm
Scanning Speed	≤ 10m/s
Oxygen Content	≤ 100ppm
Protective Atmosphere	Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection efficiency ≥ 99%
Relative Density	99.9%+
Typical Accuracy	0.05 – 0.2mm
Metal Powder	Titanium alloy, aluminium alloy, high temperature alloy, stainless steel, mold steel, etc.
Process Parameter Configuration	Tailored parameter set for the specific application, user-modifiable
Weight	Est. 4500kg
External Dimensions	2280mm × 1560mm × 2570mm
Power Supply	500W: AC380V, 50/60Hz, peak power ≤16–16.5kW, average power ≤6.5–7kW 1000W: AC380V, 50/60Hz, peak power ≤17–18kW, average power ≤7.5–8.5kW
