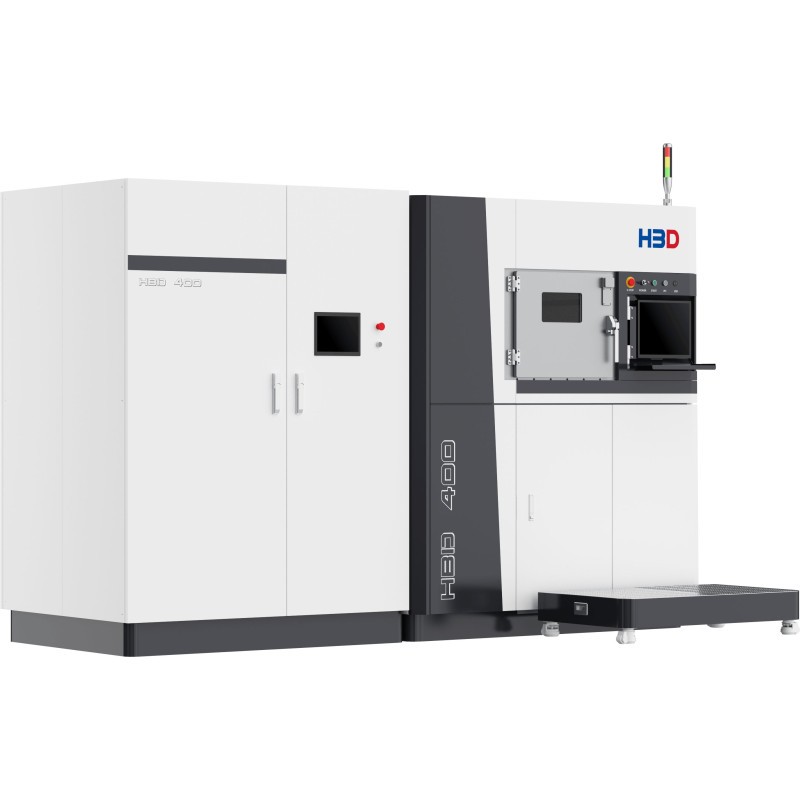

HBD 400 metal 3D printer with quad 1kW lasers SLM

Precision Redefined in Metal 3D Printing

WHY HBD 400?

High Productivity Configuration

Equipped with four 1 kW fiber lasers, the HBD 400 Quad Laser ensures fast and uniform coverage of the printing surface. Its smart variable-speed design and bidirectional recoating system complete each layer within seconds, maximizing productivity. With a generous 325×325×400 mm build volume, the printer delivers a powerful and reliable solution for large-scale metal production using SLM (Selective Laser Melting) technology.

Long-lasting Filtration System

The filtration system utilizes next-generation PTFE-coated filter elements, meeting H13 standards with a capture efficiency of up to 99.9%, capable of trapping particles as small as 0.3μm. The filter includes self-cleaning features, providing a filter element lifetime of over 5 years. Optimized gas-flow configuration enables secure and efficient waste reclamation in inert gas environments, ensuring optimal printing conditions.

Precision Laser Calibration System

Seamless multi-beam laser stitching, the HBD 400 automatic laser calibration system enables an

automatic scanning strategy tailored to the process conditions, with a calibration accuracy up to

0.05 mm, enhancing process stability and part quality.

3D Print Cases

The production of high-precision metal components with the HBD 400 Quad Laser 4×1kW enables the simultaneous formation of multiple complex parts using four precisely synchronized lasers.
The system delivers high productivity and consistent surface quality, ideal for demanding industrial applications.
SLM (Selective Laser Melting) technology speeds up prototyping, shortens production cycles, and reduces tooling costs, providing a cost-effective solution for small and medium batch manufacturing.

Hydraulic Manifold

Industry: 3C Electronics

Material: 316L

Size: 24×23×15mm

Weight: 4.8g

Quantity: 444

Time: 23h 54min

Parameter	Specification
Build Volume	350mm × 400mm × 400mm (height incl. build plate)
Laser Power	4 Lasers, 500W / 1000W \| 6 Lasers, 500W / 1000W \| 8 Lasers, 1000W
Layer Thickness	20μm – 120μm
Spot Diameter	70μm – 80μm, 140μm – 160μm (Optional: Guangchi II)
Scanning Speed	≤ 10m/s
Oxygen Content	≤ 100ppm
Protective Atmosphere	Integral sealed system with automatic oxygen monitoring, recycling, cleaning and collection efficiency ≥ 99%
Relative Density	99.9%+
Typical Accuracy	0.05 – 0.2mm
Metal Powder	Titanium alloys, Aluminum alloys, Superalloys, Stainless steel, Mould steel, etc.
Process Parameter Configuration	Tailored parameter set for specific applications, user-modifiable
Weight	Approx. 3300kg
External Dimensions	1900mm × 1650mm × 2300mm
Power Supply	500W: AC380V, 50/60Hz, peak power ≤14–16kW, average power ≤5.5–8.5kW 1000W: AC380V, 50/60Hz, peak power ≤15–19kW, average power ≤6.5–11.5kW
