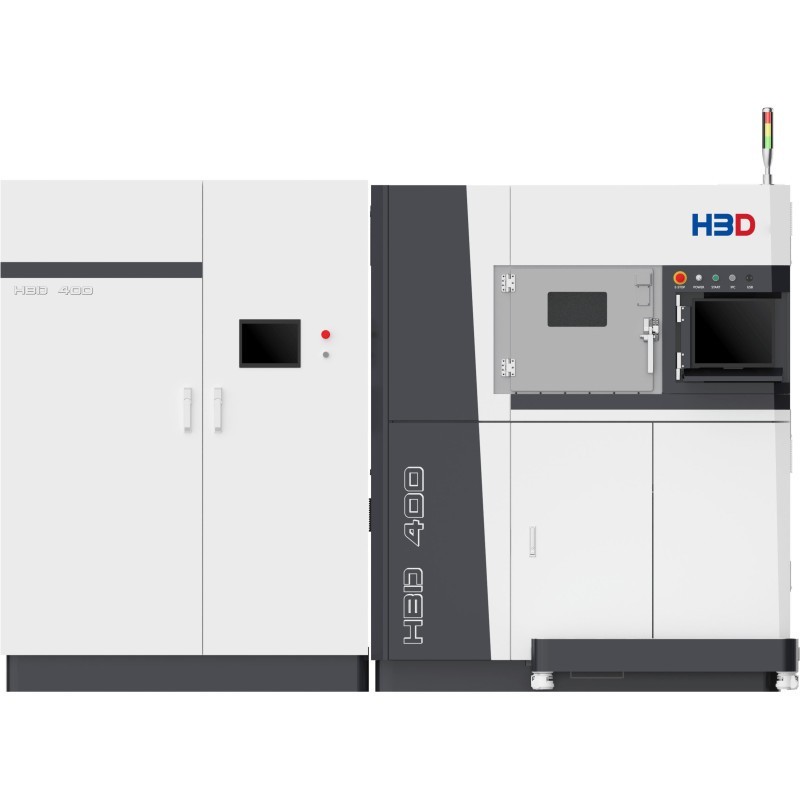

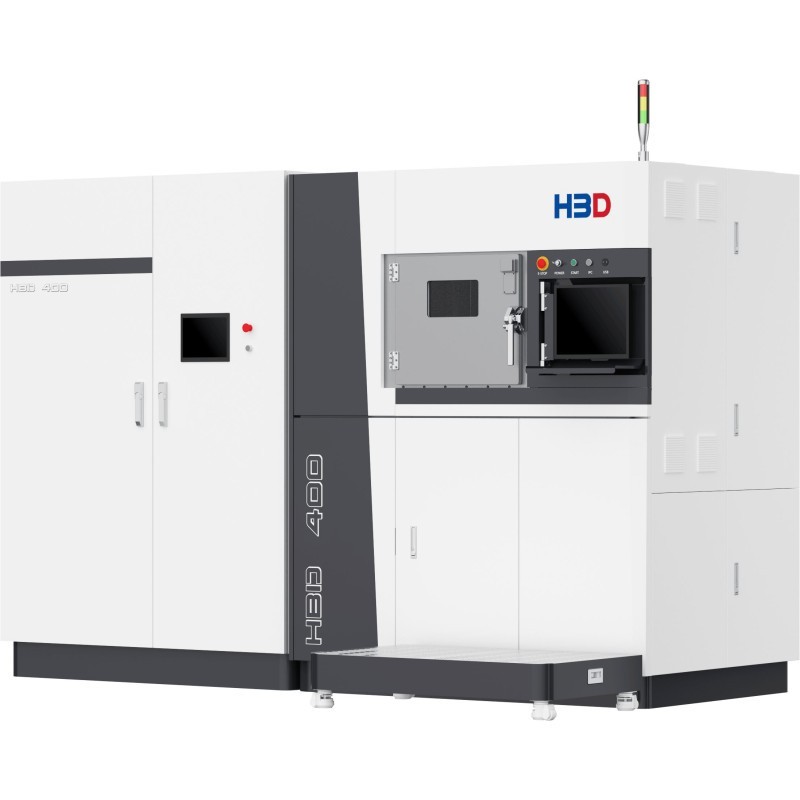

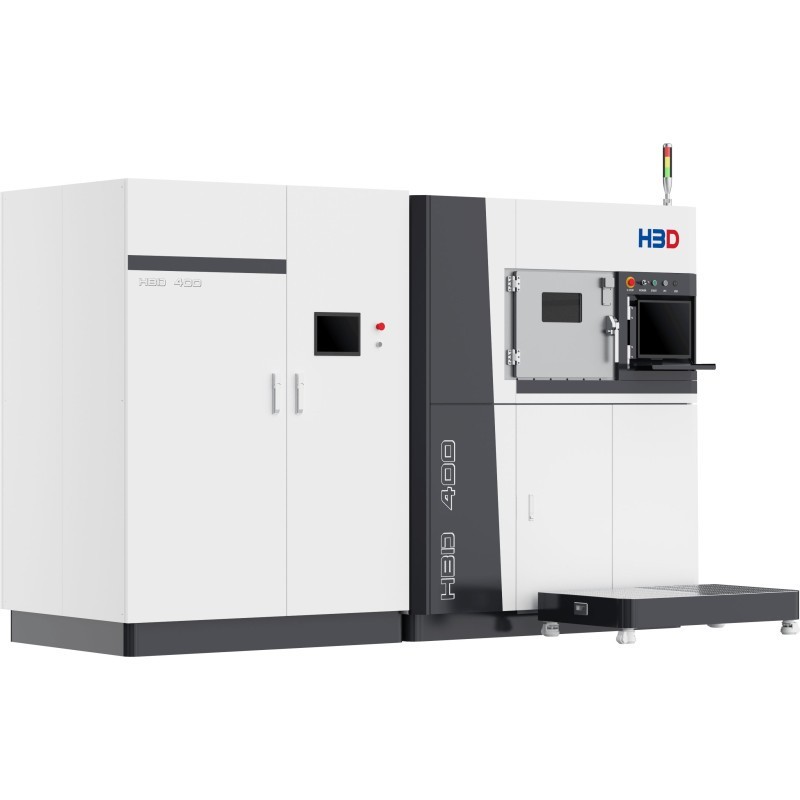

HBD 400 Hexa Laser 6×500W – High-power SLM metal 3D printer
lei0.00
Tax included
Share on
HBD 400 Hexa Laser 6×500W
Precision Redefined in Metal 3D Printing
WHY HBD 400?
High Productivity Configuration
Equipped with six 500W fiber lasers, the HBD 400 Hexa Laser provides fast and uniform printing coverage. Its intelligent variable-speed design and bidirectional recoating system complete each layer in just 3 seconds, maximizing process efficiency. With a large 350×400×400 mm build volume, it offers a powerful and reliable solution for large-scale industrial metal production.
Long-lasting Filtration System
The filtration system utilizes next-generation PTFE-coated filter elements, meeting H13 standards with a capture efficiency of up to 99.9%, capable of trapping particles as small as 0.3μm. The filter includes self-cleaning features, providing a filter element lifetime of over 5 years. Optimized gas-flow configuration enables secure and efficient waste reclamation in inert gas environments, ensuring optimal printing conditions.
Precision Laser Calibration System
Seamless multi-beam laser stitching, the HBD 400 automatic laser calibration system enables an
automatic scanning strategy tailored to the process conditions, with a calibration accuracy up to
0.05 mm, enhancing process stability and part quality.
3D Print Cases
The production of charging connector terminals using the HBD 400 Hexa Laser 6×500W system enables integrated forming of multiple stacked components through six synchronized lasers.
Productivity reaches up to 28.8 parts per hour, making it over four times more efficient than dual-laser systems.
Metal 3D printing accelerates prototyping, shortens production cycles, and reduces tooling costs, providing a cost-effective solution for small and medium-batch manufacturing.
Hydraulic Manifold
Industry: 3C Electronics
Material: 316L
Size: 24×23×15mm
Weight: 4.8g
Quantity: 444
Time: 23h 54min
| Parameter | Specification |
|---|---|
| Build Volume | 350mm × 400mm × 400mm (height incl. build plate) |
| Laser Power | 4 Lasers, 500W / 1000W | 6 Lasers, 500W / 1000W | 8 Lasers, 1000W |
| Layer Thickness | 20μm – 120μm |
| Spot Diameter | 70μm – 80μm, 140μm – 160μm (Optional: Guangchi II) |
| Scanning Speed | ≤ 10m/s |
| Oxygen Content | ≤ 100ppm |
| Protective Atmosphere | Integral sealed system with automatic oxygen monitoring, recycling, cleaning and collection efficiency ≥ 99% |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05 – 0.2mm |
| Metal Powder | Titanium alloys, Aluminum alloys, Superalloys, Stainless steel, Mould steel, etc. |
| Process Parameter Configuration | Tailored parameter set for specific applications, user-modifiable |
| Weight | Approx. 3300kg |
| External Dimensions | 1900mm × 1650mm × 2300mm |
| Power Supply |
500W: AC380V, 50/60Hz, peak power ≤14–16kW, average power ≤5.5–8.5kW 1000W: AC380V, 50/60Hz, peak power ≤15–19kW, average power ≤6.5–11.5kW |
