AM-CELL C13X Automated Robotic 3D Inspection Cell
- Fully automated robotic 3D inspection cell
- High-precision, non-contact measurement
- Fast, repeatable scanning for industrial production
- Ideal for complex part geometries and metrology tasks
- Seamless integration into automated quality control lines
Share on

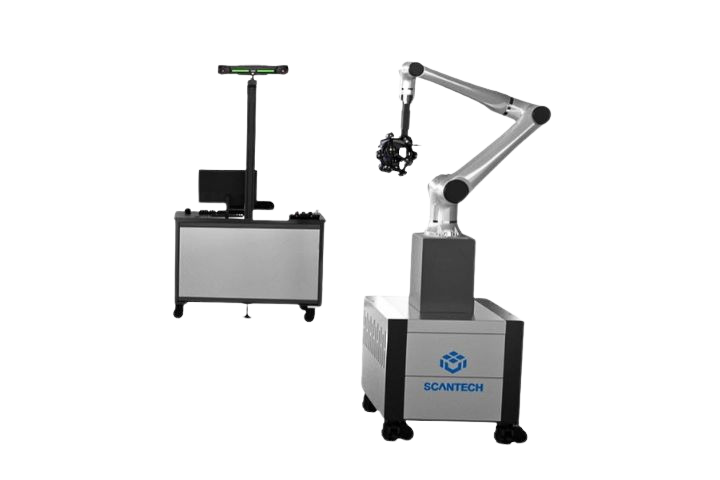

AM-CELL C13X
Optical automated 3D measurement system
The AM-CELL C series optical automated 3D measurement system, consisting of a robot, positioner, and a tracking station, is developed for efficient and automated inspection of medium-to-large-sized parts such as stamping, injection-molded, machined sheet metal, and cast parts. Designed with innovative modular units, it enables various layouts, flexible deployment, and multiple-positioner operations.
Its standard interfaces can be connected to different external devices, allowing it to seamlessly integrate into production lines. Paired with the newly upgraded software DefinSight-AM, AM-CELL C supports efficient operations in various production environments, serving as an efficiency booster for intelligent manufacturing.
Various payloads
Precise control
Quick response
Safe and reliable
Large operating area
Ergonomic structure design
Modular Unit Design, Inspection at Fingertips
Been designed with an innovative modular unit concept, AM-CELL C series features flexible layouts to meet different needs of batch inspections in various industrial settings. The system can be assembled and tested easily within 2 days and it supports manual robot teaching for quick path planning. This efficient solution frees users from complex set-ups and operations, which lowers the threshold for professional operations and enhances inspection efficiency.
Metrology-grade 3D Measurement
The AM-CELL C Series, compatible with Scantech’s full range of target-free and optical 3D measurement systems, can measure hundreds of parts automatically and stably 24 hours a day. The system delivers ultra-high measurement rate of up to 2,600,000 MPS and metrology-grade accuracy of 0.025 mm, and provides you with precise measurement results to visualize GD&T deviations.
Thanks to its sophisticated gray value measurement, the AM-CELL C Series enables automatic edge inspections and ensures precise results. Users can obtain accurate 3D data of closed features such as holes, slots, and rectangles of stamping parts and machined parts on the site.
AM-CELL C is aimed to empower the manufacturing process analysis to increase output from the source, reduce production costs, and achieve standardized quality control processes.

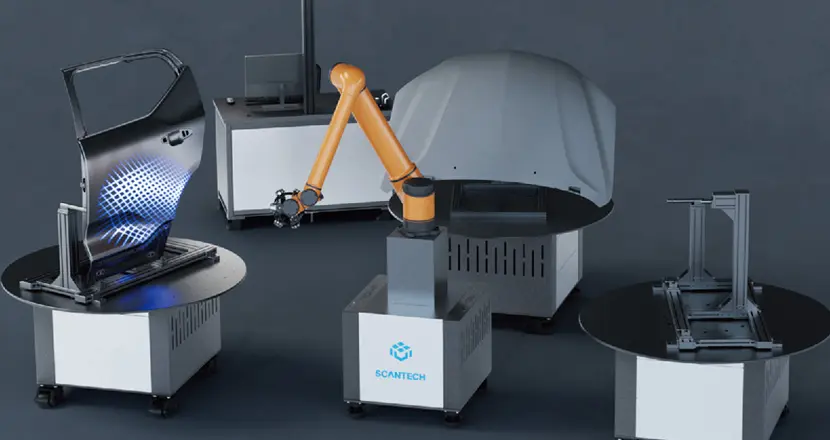

Flexible Deployment for High Throughputs
Users can choose different solutions with multiple positioners according to their measurement requirements, cycle time, and product categories, achieving efficient measurement with zero downtime. Thanks to the powerful software, multiple tasks can be processed at the same time. This advanced automated measurement solution enables continuous measurements, eliminating waiting or interruptions, and delivering a measurement rate 5 times faster than that of traditional CMM. Therefore, it is capable of significantly shortening production cycle and improving overall production efficiency.
Diverse Choices
AM-CELL C series is highly compatible with a wide range of long-reach cobots that come in different brands and types, especially for those with an arm span exceeding 1300 mm. The system supports plug-and-play operations without requiring additional hardware configuration, making it ideal for various industrial uses to decrease operating costs and preparation time.
Furthermore, the system offers intelligent turntables with various dimensions and payloads ranging from 200KG to 1000KG. Users can choose suitable options when inspecting parts of various weights and sizes, enjoying highly effective and adaptable automated inspection system.
Safe and Stable
The robots and positioners are both equipped with advanced servo-mechanists with precise force feedback to reduce the need for special safety precautions and ensure safe operation. Therefore, human operators and the measurement system can share the workplace without compromising safety for both. Additionally, the system opts for various protective measures such as safety fences, safety light curtains, and safety door locks, catering to users with elevated safety needs.
Automated Software DefinSight-AM
AM-CELL C is powered by in-house developed automated measurement software DefinSight-AM, which boasts advanced data capturing and highly intelligent robot control. It is compatible with the whole range of Scantech’s 3D scanners and various measurement solutions to enable precise data capturing and reliable measurement results. The software can work with mainstream industrial and cooperative robots. It can enable direct connection with robots while adhering to safety requirements by opening its control script, thus reducing the skill level needed for robot operation.
Engineer Mode: This mode supports off-line programming of automated measurement procedures or templates, making it convenient for engineers to maintain multiple sets of automated 3D measurement systems. Additionally, it enables engineers to trace measurement results over time and analyze statistics enhancing quality control processes for manufacturing.
Operator Mode: In Operator Mode, the software provides one-click startup, automatically invoking templates, calculations, and generating inspection reports. The operator’s access to the software is limited to only operating and reading, which ensures the safe running of programs and equipment, lowers the skill requirements, and diminishes the risks of operator errors.
Furthermore, the software supports various industrial communication protocols and device extensions, such as code reading, visual safety protection, and environmental status monitoring, which allows the entire system to be fully integrated into the industrial Internet of Things (IoT), facilitating efficient operation in lights-out factories and unmanned production environments. It allows manufacturers to monitor the evolution of batches, forecast the trend of defective products, and ensure the stability of manufacturing.
Vast Applications Deliver New Experiences
Shop Floor
AM-CELL C Series allows for on-site measurement on the shop floor regardless of lighting and temperature variations. It can measure parts precisely under harsh conditions on the shop floor.
CMM Room
The system can safely and steadily run without special safety requirements. Physical fencer is optional depending on the requirements of the users.
Educational Settings
With multiple programming methods, teachers and even students without much expertise can learn how to operate the measurement system safely in a short timeframe. It shows our commitment to creating a talent cultivation ecosystem in the way of industry-university-research integration.
Technical Specifications AM-CELL C13X
System & Robot Specifications
| Parameter / Feature | AM-CELL C13X Value |
|---|---|
| Space Size | 4.0 m × 3.0 m |
| Robot Type | Cobot, reaching 1300 mm |
| 3D Scanner Supported | Full series of SCANOLOGY's Optical 3D Measurement System |
| Communication Protocol | TCP/IP, USB 3.0, OPC UA |
| Expanded Communication | Socket, Modbus-TCP |
| Safety Mode | Active Emergency Stop + Safety with Force Feedback |
| Input Voltage | AC ~ 220 V / 50-60 Hz |
| Equipment Power | 1.5 kW |
Space Size
4.0 m × 3.0 m
Robot Type
Cobot, reaching 1300 mm
3D Scanner Supported
Full series of SCANOLOGY's Optical 3D Measurement System
Communication Protocol
TCP/IP, USB 3.0, OPC UA
Expanded Communication
Socket, Modbus-TCP
Safety Mode
Active Emergency Stop + Safety with Force Feedback
Input Voltage
AC ~ 220 V / 50-60 Hz
Equipment Power
1.5 kW
Turntable Options Specifications
| Turntable Type | TT200 | TT500 (Standard for C13X) | TT800 | TT1100 |
|---|---|---|---|---|
| Payload | 200 kg | 500 kg | 800 kg | 1000 kg |
| Maximum Object Size | Ø ≤ 1200 mm; H ≤ 1000 mm | Ø ≤ 1500 mm; H ≤ 1200 mm | Ø ≤ 1800 mm; H ≤ 1500 mm | Ø ≤ 2200 mm; H ≤ 1800 mm |
| Turntable Power | 0.75 kW | 1.0 kW | 1.5 kW | 2.0 kW |
| Motor Type | Absolute Servo Motor | |||
Turntable TT200
Payload
200 kg
Maximum Object Size
Ø ≤ 1200 mm; H ≤ 1000 mm
Turntable Power
0.75 kW
Motor Type
Absolute Servo Motor
Turntable TT500 (Standard)
Payload
500 kg
Maximum Object Size
Ø ≤ 1500 mm; H ≤ 1200 mm
Turntable Power
1.0 kW
Motor Type
Absolute Servo Motor
Turntable TT800
Payload
800 kg
Maximum Object Size
Ø ≤ 1800 mm; H ≤ 1500 mm
Turntable Power
1.5 kW
Motor Type
Absolute Servo Motor
Turntable TT1100
Payload
1000 kg
Maximum Object Size
Ø ≤ 2200 mm; H ≤ 1800 mm
Turntable Power
2.0 kW
Motor Type
Absolute Servo Motor
