AutoScan-KM II Automated Multi-Axis 3D Inspection System
- Upgraded multi-axis automated 3D scanning
- Ultra-precise, contact-free measurement
- High-speed data acquisition for efficient workflows
- Supports complex geometries and advanced metrology tasks
- Reliable performance with intelligent system control
Share on

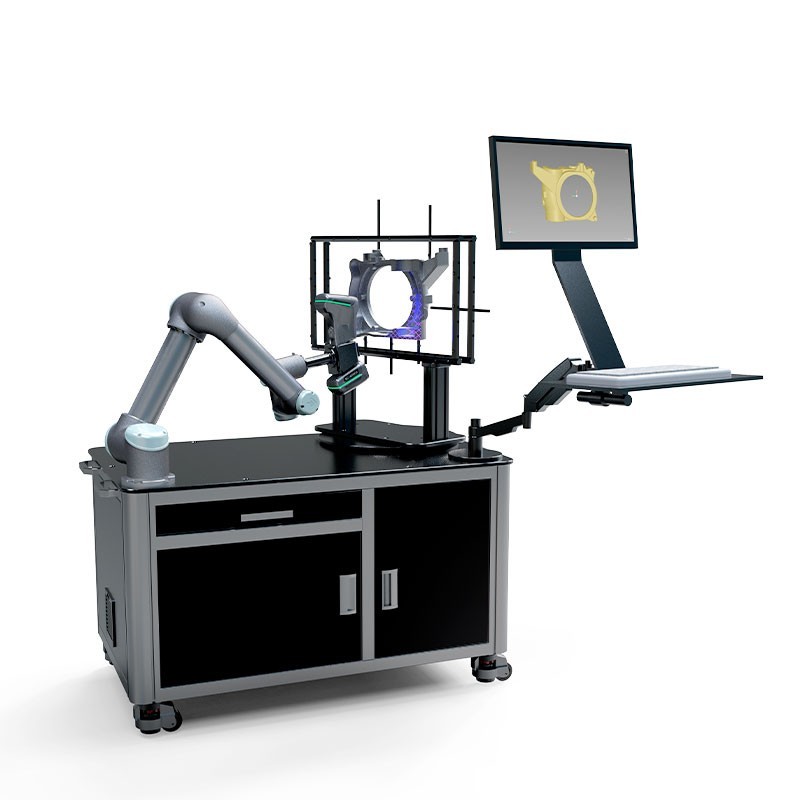

Autoscan-KM II 3D System
AutoScan-K series, an automatic 3D inspection system, can realize non-contact and non-destructive inspection using machine vision technology.
While ensuring extra-high accuracy, it can effectively carry out online batch scanning and inspection. Featuring 24-hour constant operation, the AutoScan-K 3D system helps enterprises reduce manufacturing costs, accelerate product time-to-market and increase return on investment.
.png)
Equipped with multiple working modes, the AutoScan-K 3D system can adapt to the measurement in various industrial scenarios.
Meanwhile, based on cutting-edge machine vision algorithms, it can precisely control the movements of the robot, thus realizing efficient and automatic batch inspection.
Automatic Whole-process Inspection
Without human involvement, AutoScan-K is an automated 3d scanner that can automatically conduct batch 3D scanning and inspection for data comparison, and generate inspection reports, after scanning routes and measurement process are set for different products.
Multiple measurement modes are offered depending on the characteristics of different workpieces. To meet different inspection requirements, the workpieces can be clamped from multiple angles to set inspection routes.

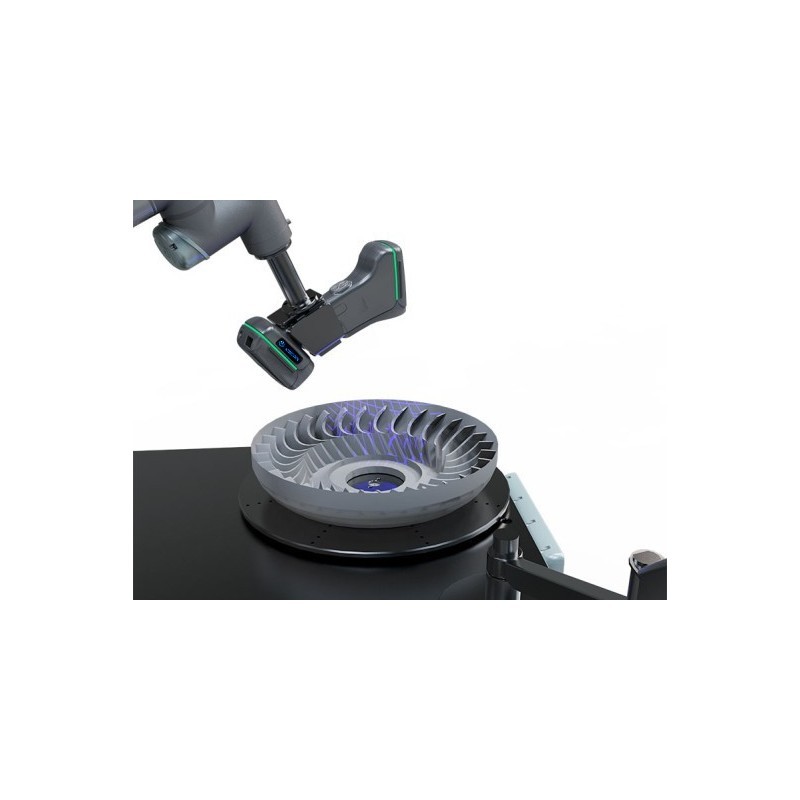

Based on automated optical measurement technology, the AutoScan-K automated 3d system truly achieves non-contact and non-destructive intelligent testing, which is safe, reliable, and applicable in different workshop environment. Its industrial intelligent rotary tables make efficient and blind-angle-free inspection possible.
@0-5x.png)
.png)
Precise and Effective Measurement
AutoScan-K can inspect workpieces with different sizes, weights and pieces made from different materials.
It can generate as much as 45 laser lines for high density data scanning, with the speed of up to 1,650,000 per second.
It enables precise 3D inspection in harsh industrial environment with resolution up to 0.010 mm and volume accuracy up to 0.030 mm/m.
The secondary development allows operators to control the system by calling the SDK interface.
Precise and Effective Measurement
AutoScan-K can inspect workpieces with different sizes, weights and pieces made from different materials.
It can generate as much as 45 laser lines for high density data scanning, with the speed of up to 1,650,000 per second.
It enables precise 3D inspection in harsh industrial environment with resolution up to 0.010 mm and volume accuracy up to 0.030 mm/m.
The secondary development allows operators to control the system by calling the SDK interface.
Personalized Operation
Multiple measurement modes are offered depending on the characteristics of different workpieces. To meet different inspection requirements, the workpieces can be clamped from multiple angles to set inspection routes.
Safe and Reliable NDT
Based on automated optical measurement technology, the AutoScan-K automated 3d system truly achieves non-contact and non-destructive intelligent testing, which is safe, reliable, and applicable in different workshop environment. Its industrial intelligent rotary tables make efficient and blind-angle-free inspection possible.
Technical Specifications AutoScan-KM II
| Type / Parameter | AutoScan-KM II Value | |
|---|---|---|
| Scan mode | Ultra-fast scanning | 17 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines | |
| Large area scanning | 11 parallel infrared laser lines | |
| Deep hole scanning | 1 extra blue laser line | |
| Accuracy (1) | Up to 0.020 mm (0.0008 in) | |
| Scanning rate up to | 4,150,000 measurements/s | |
| Scanning area up to | 1440 mm × 860 mm (57.0 in × 33.9 in) | |
| Laser class | CLASS II (eye-safe) | |
| Resolution up to | 0.010 mm (0.0004 in) | |
| Photogrammetry system | Scanning area | 3760 mm × 3150mm (148.0 in × 124.0 in) |
| Depth of field | 2500 mm (98.4 in) | |
| Volumetric accuracy (2) | Work alone | 0.015 mm + 0.030 mm/m (0.0006 in + 0.00036 in/ft) |
| Work with 1 m reference bar | 0.015 mm + 0.020 mm/m (0.0006 in + 0.00024 in/ft) | |
| Work with MSCAN-L15 | 0.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft) | |
| Stand-off distance | 300 mm (11.8 in) | |
| Depth of field | 925 mm (36.4 in) | |
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc. | |
| Operating temperature range | -10°C–40°C (14°F-104°F) | |
| Interface mode | USB 3.0 | |
| Patents | CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2 | |
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
Scan Modes
Ultra-fast scanning
17 blue laser crosses
Hyperfine scanning
7 blue parallel laser lines
Large area scanning
11 parallel infrared laser lines
Deep hole scanning
1 extra blue laser line
General Performance
Accuracy
Up to 0.020 mm (0.0008 in)
Scanning rate up to
4,150,000 measurements/s
Scanning area up to
1440 mm × 860 mm (57.0 in × 33.9 in)
Laser class
CLASS II (eye-safe)
Resolution up to
0.010 mm (0.0004 in)
Photogrammetry & Volume
Photogrammetry Area
3760 mm × 3150mm (148.0 in × 124.0 in)
Photogrammetry Depth of field
2500 mm (98.4 in)
Volumetric accuracy (Work alone)
0.015 mm + 0.030 mm/m
Volumetric accuracy (1 m reference bar)
0.015 mm + 0.020 mm/m
Volumetric accuracy (MSCAN-L15)
0.015 mm + 0.012 mm/m
Operating Specs
Stand-off distance
300 mm (11.8 in)
Depth of field
925 mm (36.4 in)
Output formats
.stl, .obj, .ply, .asc, .igs, .txt etc.
Operating temperature range
-10°C–40°C (14°F-104°F)
Interface mode
USB 3.0
