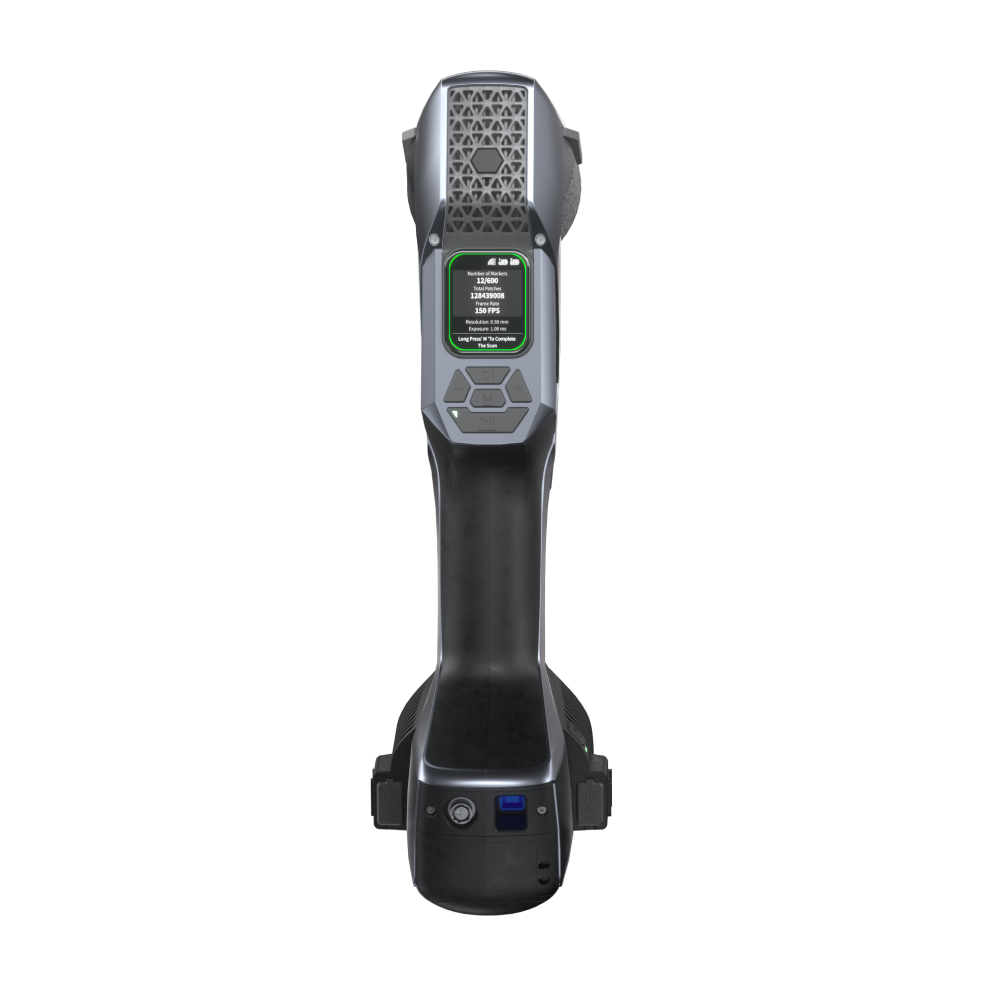

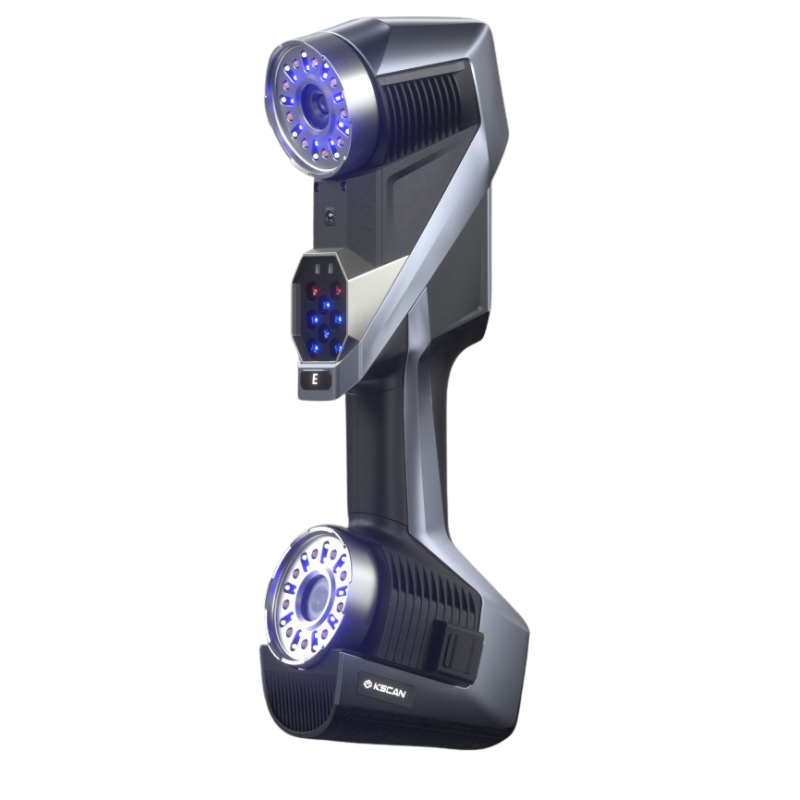

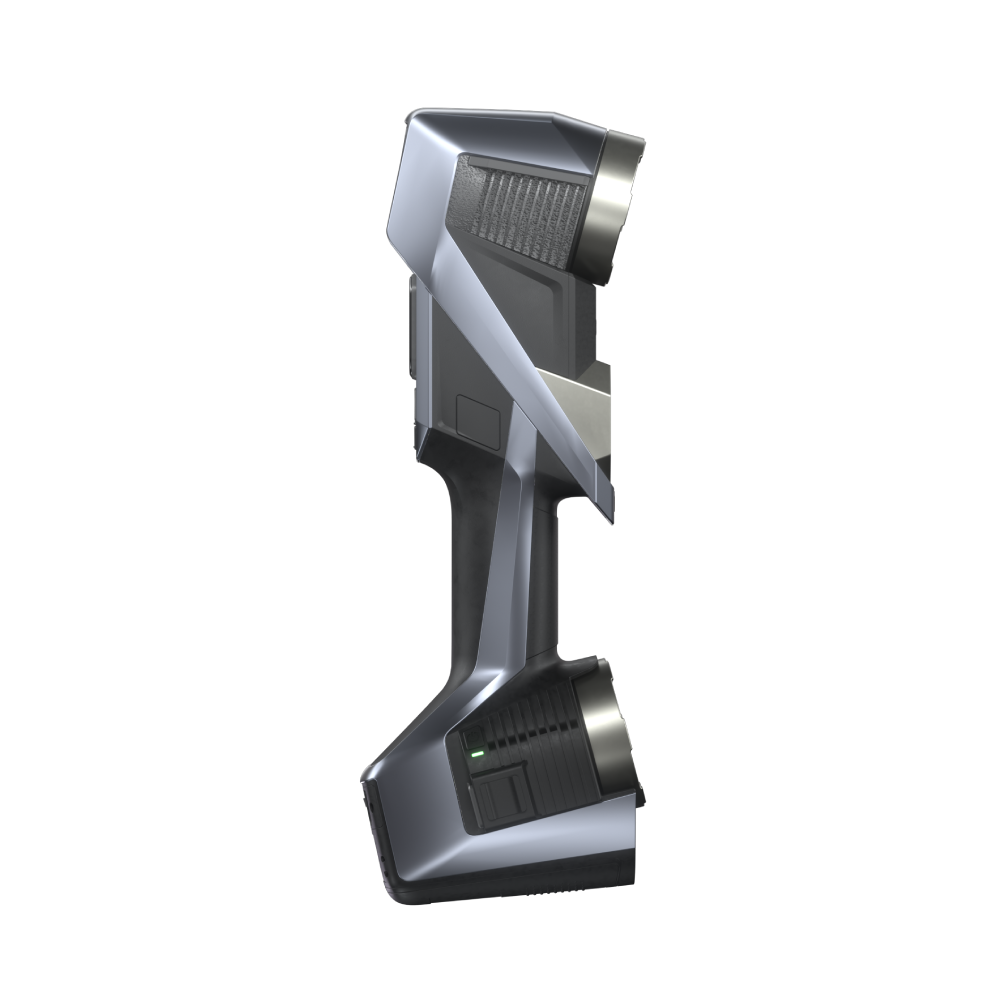

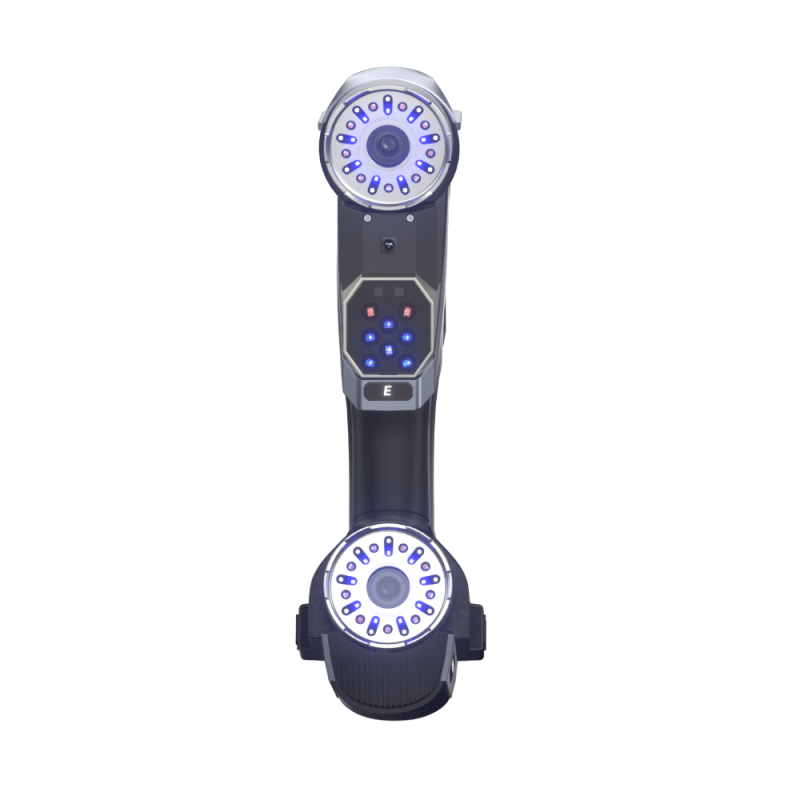

SCANTECH KSCAN-E – Intelligent & Wireless All-in-One 3D Scanner
Scantech KSCAN-E is a next-generation all-in-one wireless 3D scanner designed for industrial precision and unmatched mobility. Featuring an integrated computing system and dual replaceable batteries, it delivers continuous high-speed 3D scanning without cables, in any environment. Built for professionals, the KSCAN-E ensures accuracy, efficiency, and complete freedom of movement, making it the ultimate solution for industrial 3D measurement and inspection.

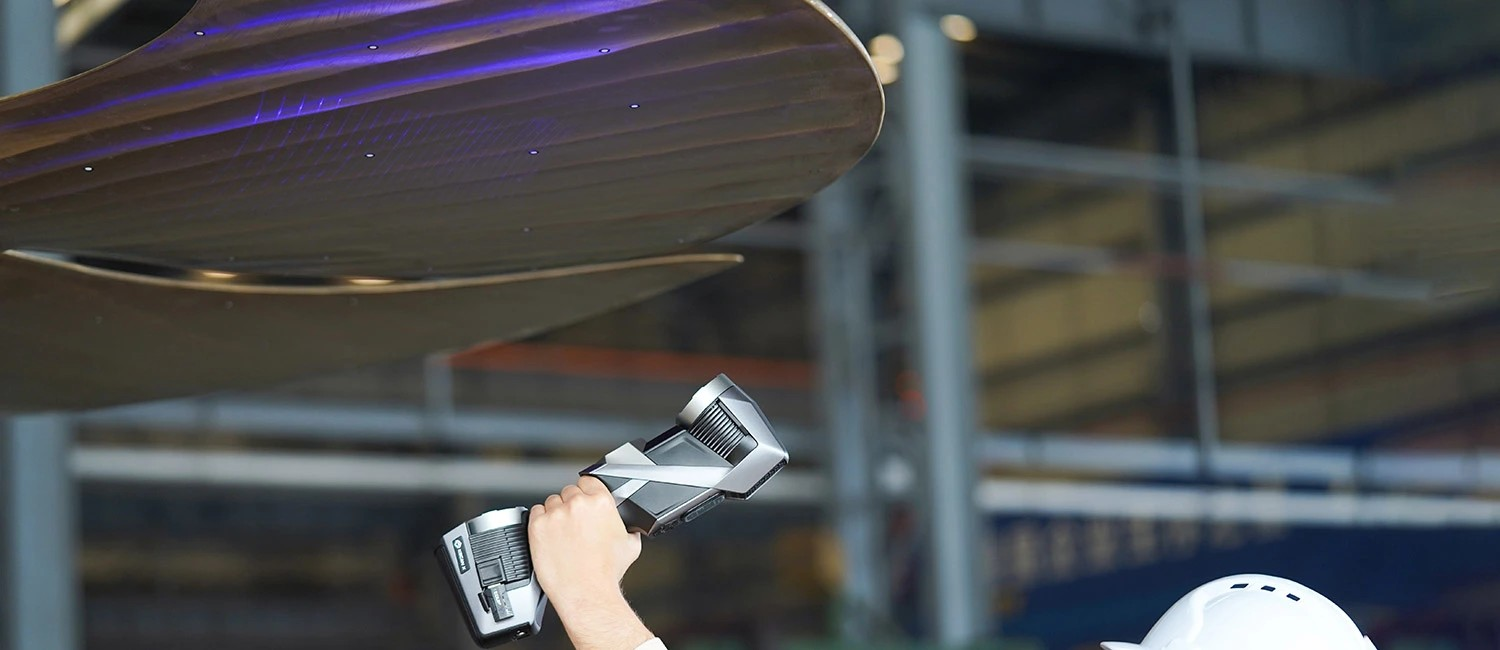

Lightweight and fully wireless, the KSCAN-E allows engineers to scan large parts with high accuracy anytime, anywhere.
Wireless & Portability
Work Anywhere, Cable-Free

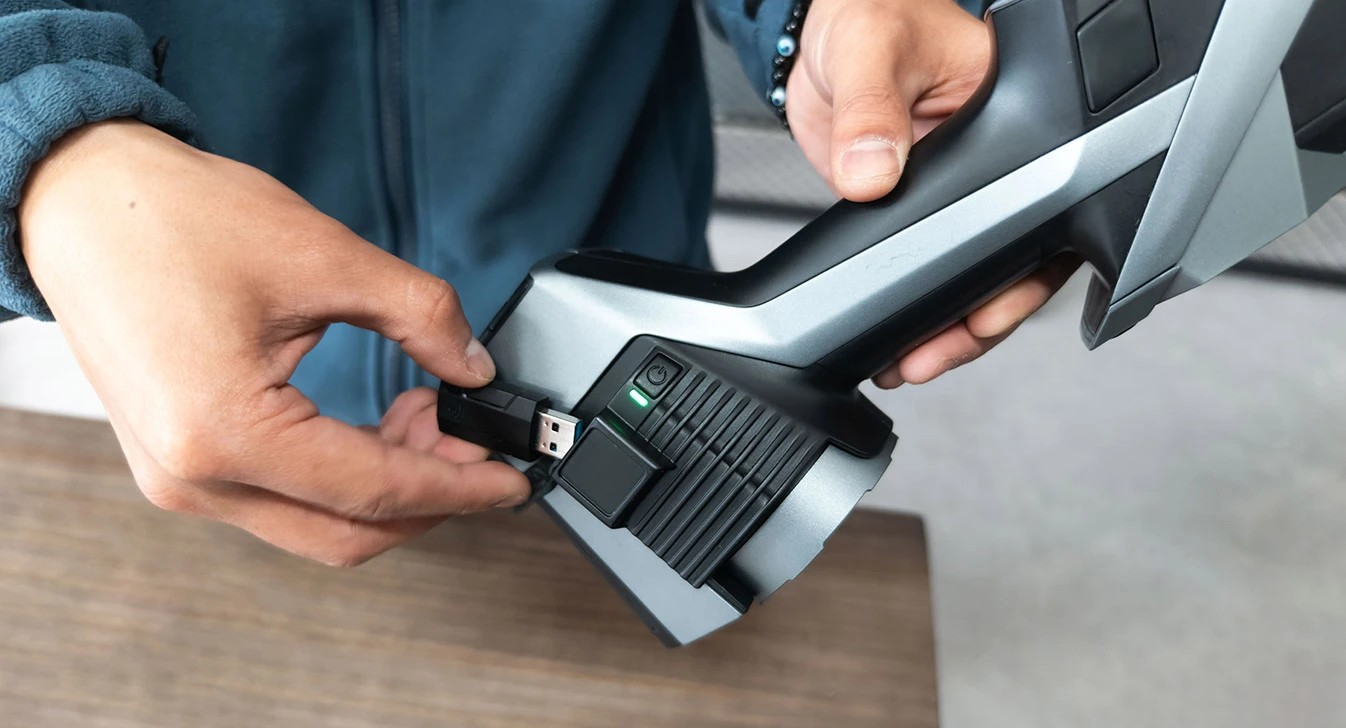

The KSCAN-E is equipped with a dual battery system and an onboard computing module, enabling engineers to perform high-precision 3D scanning without the need for a PC or external cables. Compact, lightweight, and designed for mobility, it’s the perfect solution for on-site measurements.
Accuracy & Efficiency
Metrology-Grade Precision

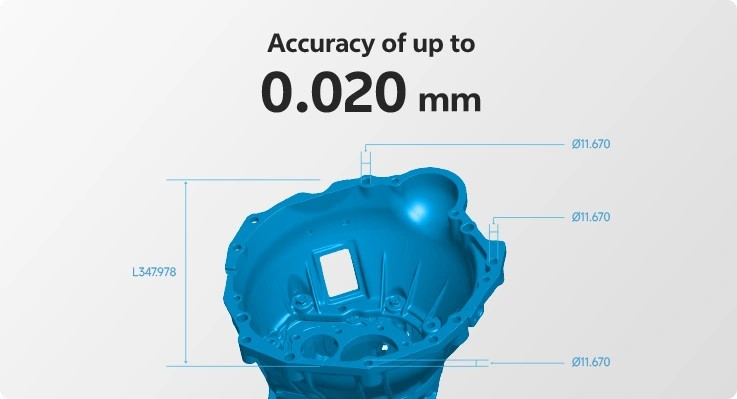

With single-shot accuracy up to 0.020 mm and volumetric accuracy of 0.015 mm + 0.012 mm/m (with MSCAN-L15), the KSCAN-E ensures reliable results even for large-scale parts. Its quad-cross laser technology captures 8.29 million points per second at 180 fps, boosting inspection efficiency.
Versatile Scanning Modes
Adaptable to Every Task
From large parts to fine details, holes, edges, and deep grooves, the KSCAN-E offers six versatile scanning modes. Infrared large-area scanning, hyperfine blue lasers, and adaptive photogrammetry deliver the flexibility needed for industrial applications of any size or complexity.
Lightning-Fast Scanning Powered by quad-cross blue laser technology (4×27 lines) and operating at 180 fps, the KSCAN-E captures up to 8.29 million measurements per second.
Versatile Scanning Modes
“Scan Anything, Anytime”—the KSCAN-E boasts six adaptable modes to handle everything from large-scale to fine-detail scanning:
Large-Area (Infrared + Photogrammetry): Up to 1.5 m distance, 1440×1000 mm area
Fine Detail (Hyperfine): Capture micro-features with unparalleled clarity
Hole & Edge Inspection: Laser + grayscale detection for precise profiling
Deep-Hole Mode: Single-line laser for hard-to-access grooves
Ultra-Fast & Photogrammetry: Speed and volumetric accuracy on large parts
Ideal Applications
- Aerospace & Aviation – precise inspection of turbine blades, fuselages, and aircraft components
Automotive & Transportation – quality control, reverse engineering, and prototype validation
Energy & Power Generation – scanning turbines, pipes, and complex energy infrastructure
Mold & Tooling – capture fine details on molds, dies, and high-precision parts
Marine & Shipbuilding – large-scale scanning of propellers, hulls, and structural parts
Rail & Heavy Industry – accurate measurement of oversized or complex machinery
Manufacturing & Industry 4.0 – inline inspection, robotic integration, and digital twin creation
Previous
Next
Previous
Next
Why Choose KSCAN-E?
Fully wireless operation—no cable clutter or setup delays
Superior precision and volumetric accuracy, even on large parts
Lightning-fast data capture without compromising detail
Exceptionally adaptable—handles everything from fine details to deep grooves
Engineered for real-world industrial environments and workflows
Technical Specifications – KSCAN-E
Scan Modes
| Ultra-fast scanning | 108 blue laser lines (Quad Cross Technology) |
|---|---|
| Hyperfine scanning | 17 blue parallel laser lines |
| Large area scanning | 19 infrared laser crosses |
| Deep hole scanning | 1 extra blue laser line |
| Hole & edge scanning | Smart edge inspection |
| Photogrammetry | Adaptive photogrammetry |
Accuracy & Performance
| Accuracy (¹) | 0.020 mm |
|---|---|
| Volumetric accuracy (¹) – Standard | 0.015 mm + 0.030 mm/m |
| Volumetric accuracy (¹) – Integrated photogrammetry (²) | 0.015 mm + 0.015 mm/m |
| Volumetric accuracy (¹) – With MSCAN-L15 | 0.015 mm + 0.012 mm/m |
| Shape error – Sphericity | 0.030 mm |
| Shape error – Flatness | 0.050 mm |
| Scanning rate | Up to 8,290,000 measurements/s |
| Scanning area | Up to 1440 mm × 1000 mm |
Working Distance
| Large area scanning | 600 mm – 1500 mm (Stand-off distance 900 mm) |
|---|---|
| Ultra-fast scanning | 200 mm – 700 mm (Stand-off distance 320 mm) |
| Hyperfine scanning | 150 mm – 300 mm (Stand-off distance 220 mm) |
General
| Object size | 0.05 m – 8 m |
|---|---|
| Laser class | Class Ⅱ (eye-safe) |
| Resolution | Up to 0.010 mm |
| Dimensions | 344 mm × 124 mm × 99 mm |
Connection
| Interface | USB 3.0 Type-B |
|---|---|
| Wireless standard | Wi-Fi 6, 802.11a/b/g/n/ac |
| Wireless connection | Support Dual WNIC |
| Intelligent & wireless mode | Supported |
| Uninterrupted power supply | Supported |
Environment Adaptability
| Operating environment | Fanless, suitable for workshop environments |
|---|---|
| Operating temperature | -10°C – 40°C |
| Operating humidity | 10–90% RH |
| Protection rating | IP50 |
Patents
| CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B |
(1) ISO 17025 accredited: Performance is evaluated based on ISO 10360-13 standard, VDI/VDE 2634 Part 3, and JJF1951 specification.
(2) Paired with 800-mm high-precision scale bar.
