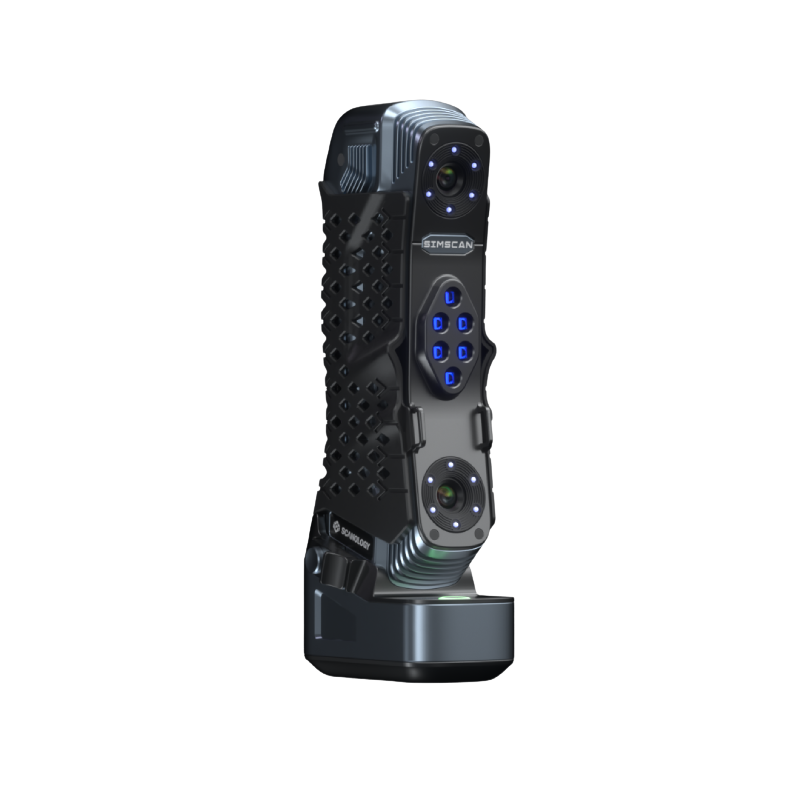

SIMSCAN E Gen2 3D Scanner

Category Home
lei0.00
Tax included
  • Accuracy up to 0.020 mm
  • Lightweight, palm-sized design
  • Fast scanning up to 5.8M measurements/sec
  • Blue laser technology for fine details
  • Perfect for inspection and reverse engineering
Add to Cart
Share on
Facebook Twitter Pinterest

SIMSCAN E Gen2 3D Scanner – Compact Power for Industrial Precision

The SIMSCAN E Gen2 is a next-generation handheld 3D scanner that combines ultra-high accuracy with an incredibly compact, palm-sized design. Engineered for demanding industrial environments, it delivers professional-grade results while remaining lightweight, portable, and easy to operate.

Designed to fit comfortably in one hand, the scanner provides excellent maneuverability, making it ideal for scanning in tight or hard-to-reach spaces where larger systems cannot perform efficiently.

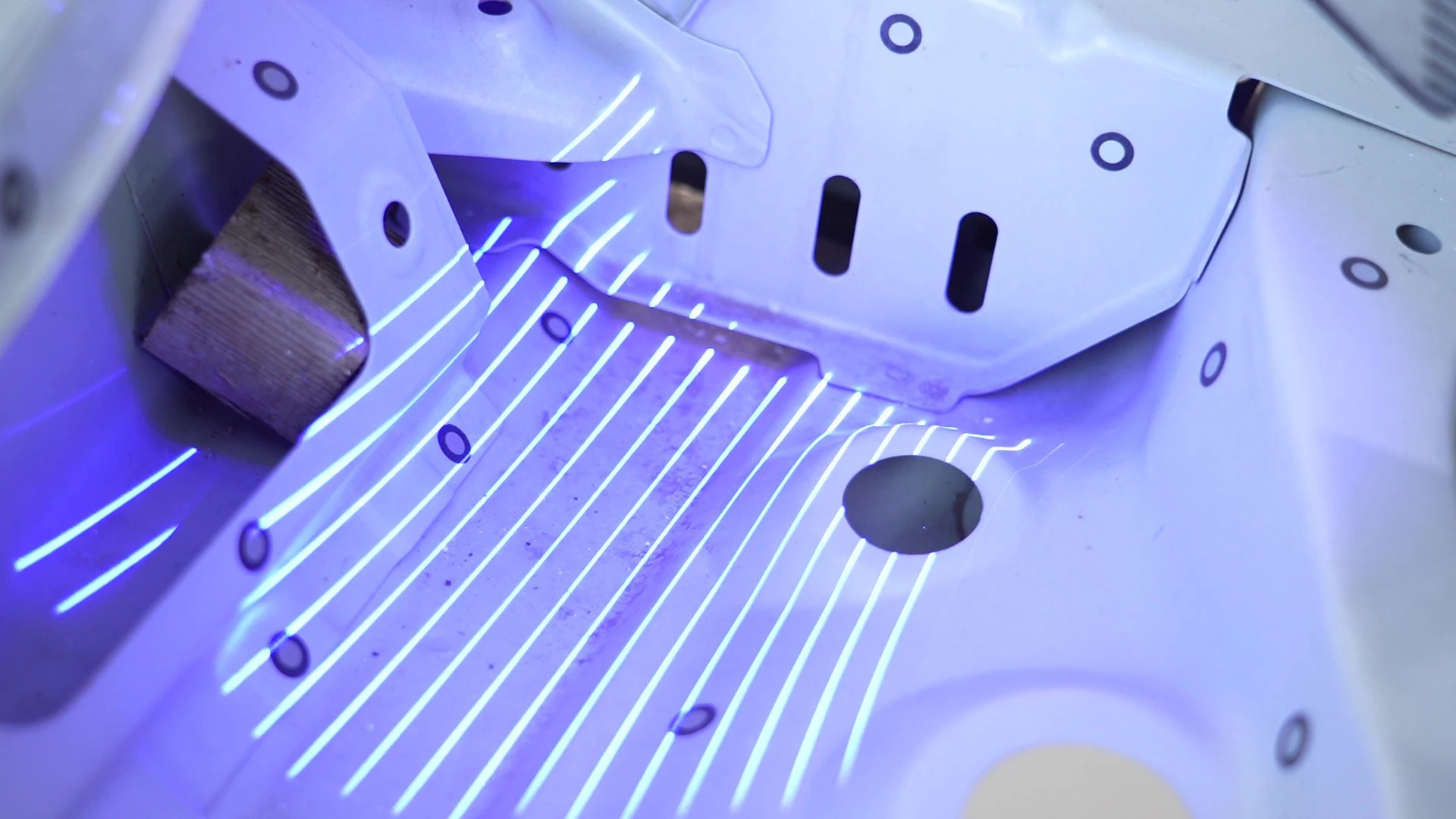

Advanced Scanning Technology

Powered by advanced blue laser technology, the SIMSCAN S Gen2 captures fine details with exceptional clarity, even on complex or challenging surfaces. Its ability to maintain precision across intricate geometries ensures reliable data acquisition in a wide range of applications.

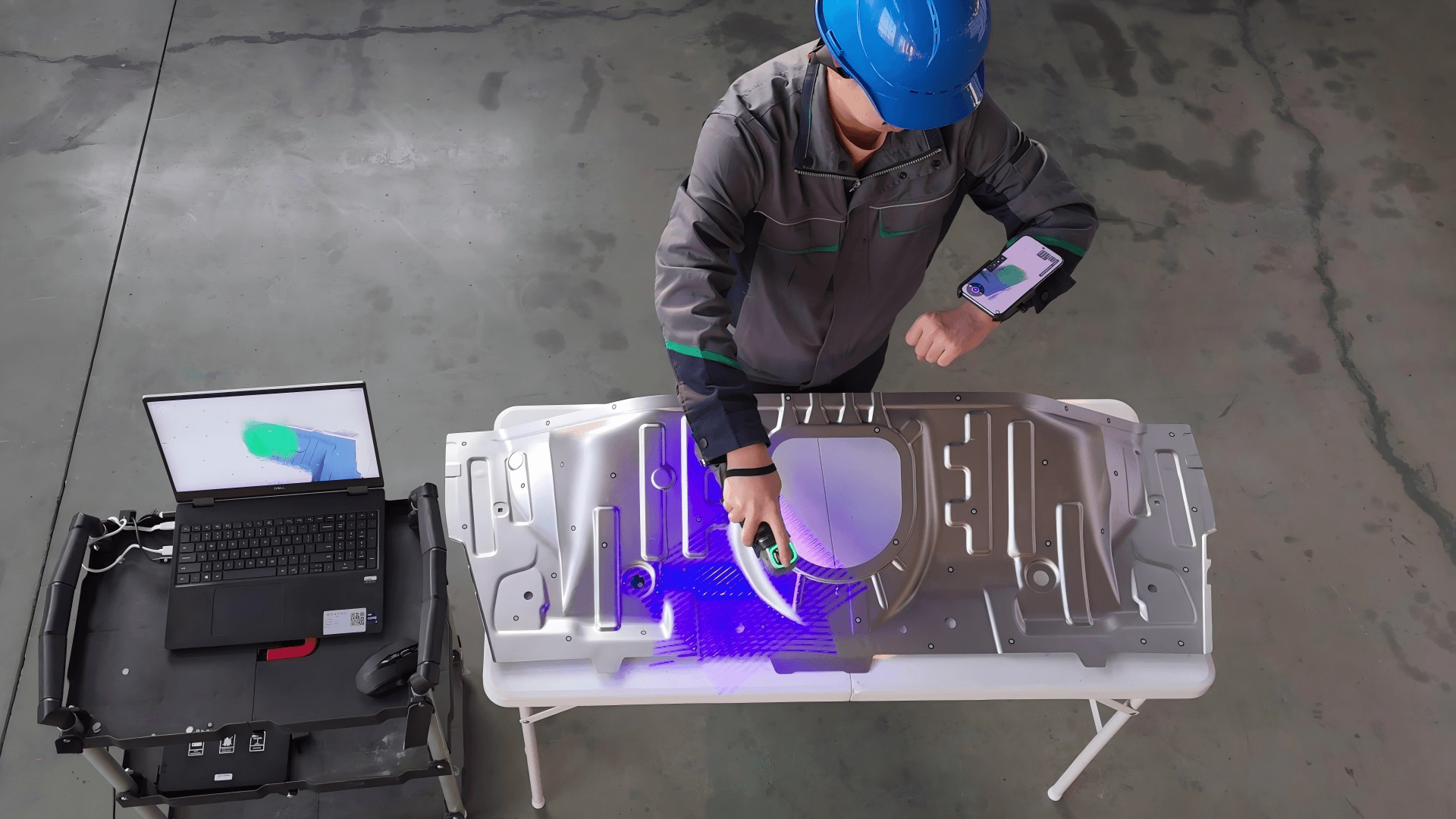

In addition, the high-speed scanning capability allows users to complete projects faster, significantly improving productivity without sacrificing accuracy or detail.

Handle complex parts with ease using 108 quad-crossed blue laser lines, a measurement rate of up to 8,100,000 measurements/s, and a frame rate up to 180 FPS. Capture massive amounts of 3D data instantly, enjoy smooth, lag-free scanning, and stay productive—even when working with demanding geometries.

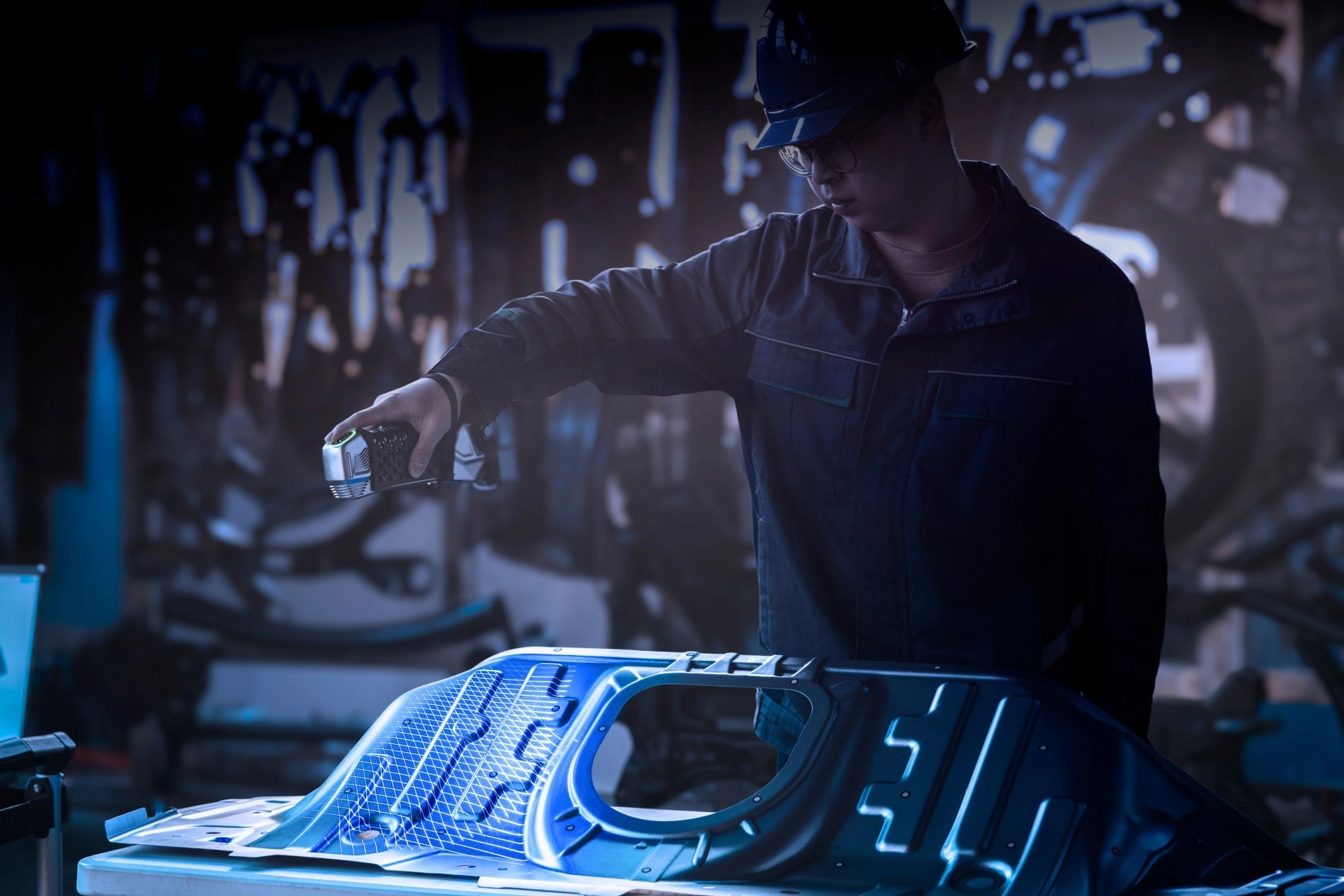

Versatile Industrial Applications

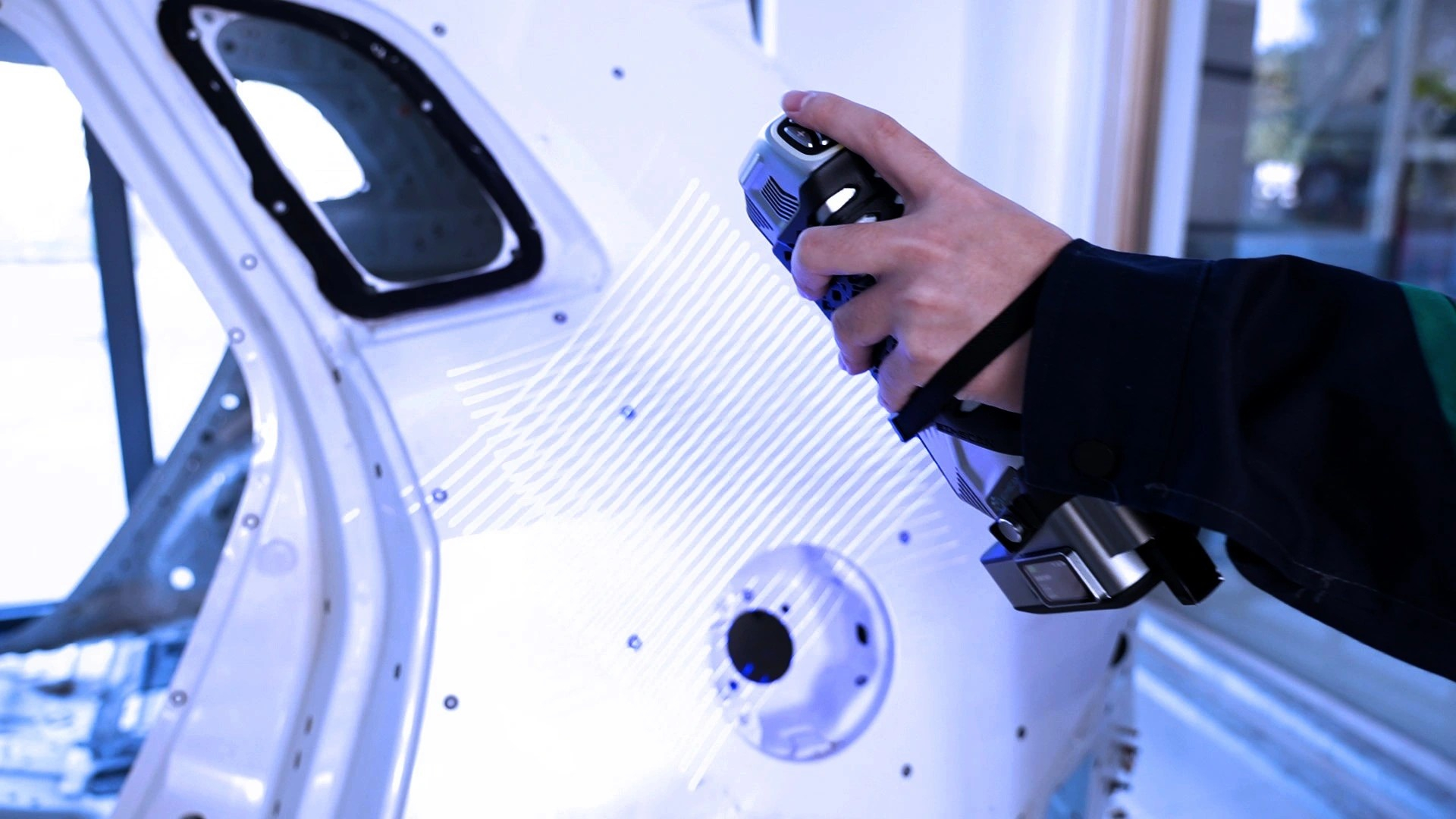

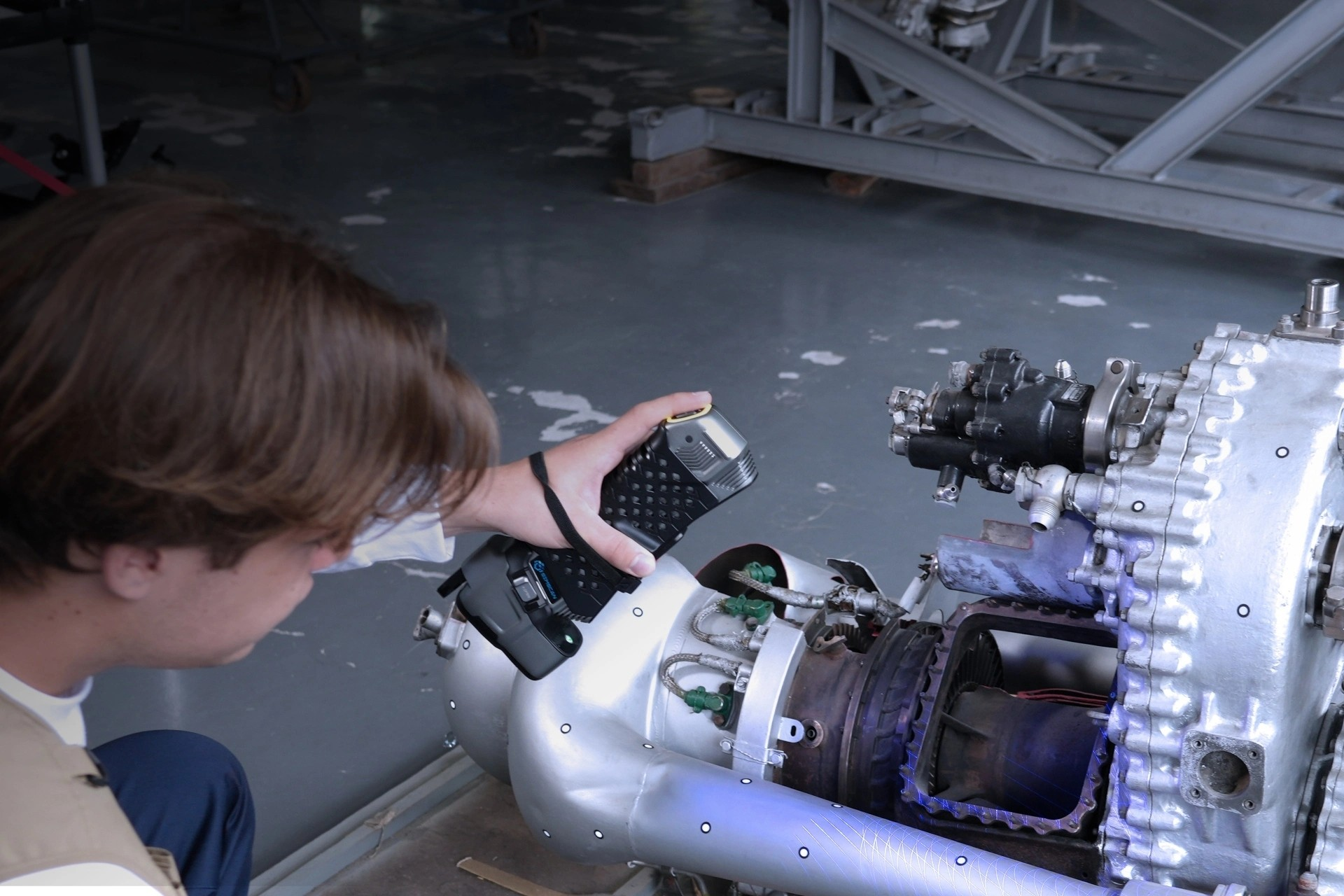

The SIMSCAN E Gen2 is perfectly suited for a variety of industrial tasks, including quality inspection, reverse engineering, product development, and maintenance. It adapts easily to different workflows, making it a valuable tool across multiple industries.

From automotive and aerospace to manufacturing and tooling, the scanner provides consistent, repeatable results that meet strict industrial standards.

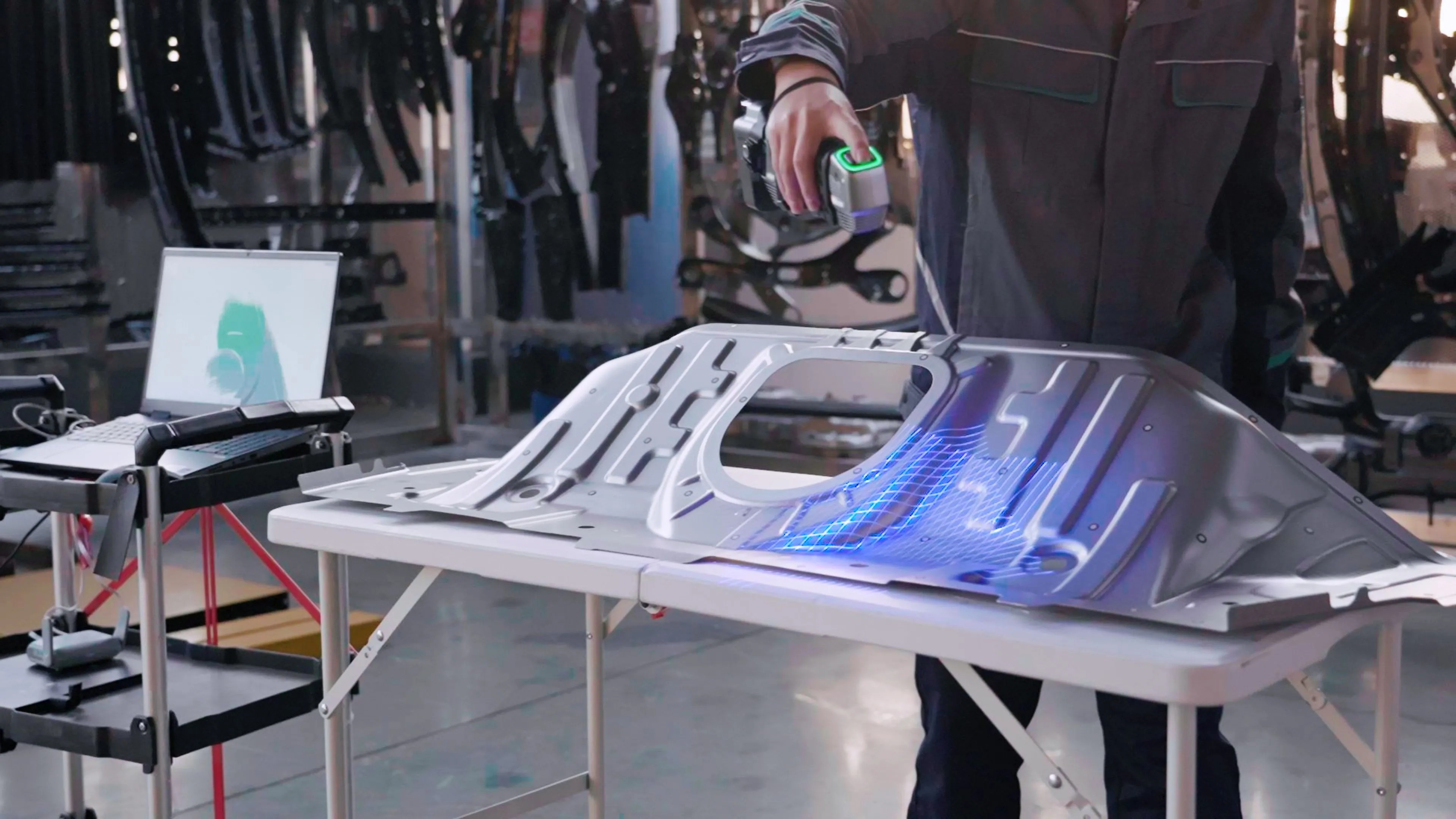

User-Friendly Operation

Despite its advanced capabilities, the SIMSCAN E Gen2 is designed with ease of use in mind. Its intuitive workflow and seamless software integration enable both experienced professionals and new users to achieve accurate results with minimal setup time.

This balance of performance and usability makes it an efficient solution for teams looking to streamline their scanning processes.

0.015-mm Accuracy
ISO 10360 Standard
0.035-mm Flatness
0.025-mm Sphericity

Key Benefits

  • Ultra-compact, palm-sized design for maximum portability

  • High precision suitable for industrial measurement tasks

  • Fast and efficient scanning performance

  • Excellent detail capture on complex surfaces

  • Ideal for inspection, reverse engineering, and design workflows

Type SIMSCAN-E Gen2
Scan mode Ultra-fast scanning: 108 blue laser lines (Quad Cross Technology)
Hyperfine scanning: 17 blue parallel laser lines
Deep hole scanning: 1 extra blue laser line
Accuracy(1) Up to 0.020 mm
Scanning rate up to 8,100,000 measurements/s
Scanning area up to 700 mm × 600 mm
Laser class CLASS II (eye-safe)
Resolution up to 0.020 mm
Volume accuracy(1) Standard: 0.015 mm + 0.035 mm/m
Adaptive Photogrammetry(2): 0.015 mm + 0.015 mm/m
Sphericity —
Flatness —
Stand-off distance 300 mm
Depth of field 550 mm
Output formats .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Interface mode USB 3.0
Dimensions 203 mm × 80 mm × 44 mm
Weight 560 g
Operating temperature range -10–40°C
Operating humidity (non-condensing) 10–90% RH
Wireless standard Wi-Fi 6, 802.11a/b/g/n/ac
Patent US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, EP3907702B1, CN204329903U,
CN104501740B, CN204854633U, CN204944431U, CN204902788U,
CN105068384B, CN105049664B, CN204902784U, CN204902785U,
CN106403845B, CN110030946B, CN212300269U, CN211904059U,
CN211696268U, CN306053019S, CN212606697U, CN306321502S,
CN214149177U, CN214747767U, CN216115893U, CN114001671B,
CN113470180B, CN113218417B, CN111833392B, CN115682981B,
CN113593015B, CN119919604B, CN223472293U, CN119359964B,
CN223527609U, CN116045843B, CN223596816U, CN223829356U,
CN309777650S, CN309793071S

(1) ISO 17025 accredited: Performance is evaluated based on ISO 10360-13 standard, VDI/VDE 2634 Part 3 and JJF1951 specification.
(2) Paired with high-precision scale bar.
