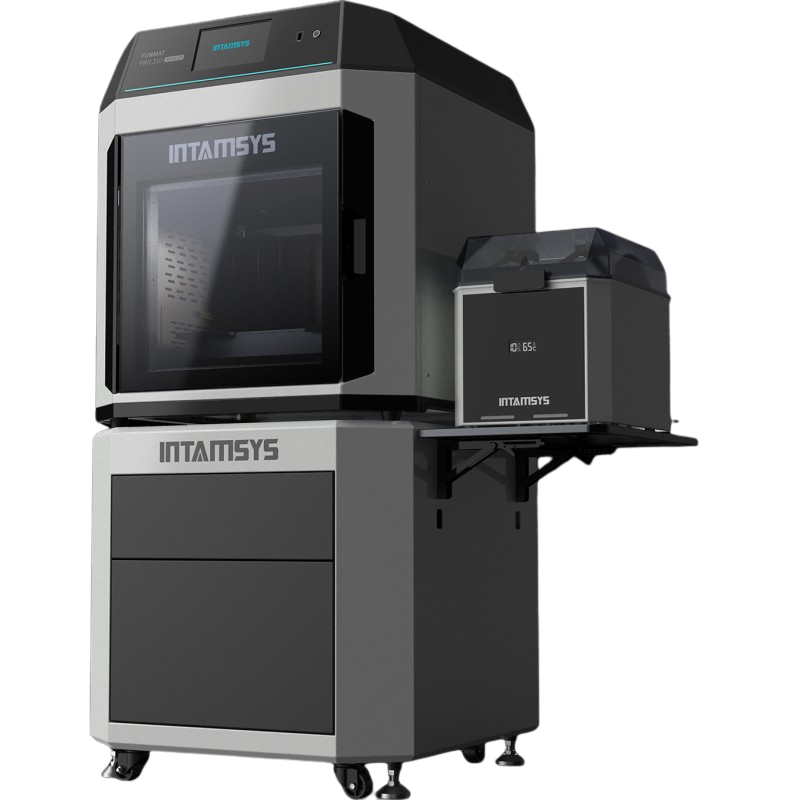

INTAMSYS FUNMAT PRO 310 APOLLO – industrial PEEK / PEKK 3D printer for PAEK production
lei0.00
Tax included
Share on
Industrial 3D printing system for continuous production with PAEK materials
INTAMSYS FUNMAT PRO 310 APOLLO redefines the standards of industrial 3D printing by transforming a conventional machine into a fully integrated continuous production system. Designed for PAEK-class materials (PEEK, PEKK), this printer is optimized for critical applications where mechanical performance, thermal stability, and repeatability are essential.
Unlike traditional 3D printers, APOLLO is not just a prototyping tool — it is an industrial platform capable of producing end-use parts in a continuous workflow, without compromise.
Advanced architecture for high-performance materials

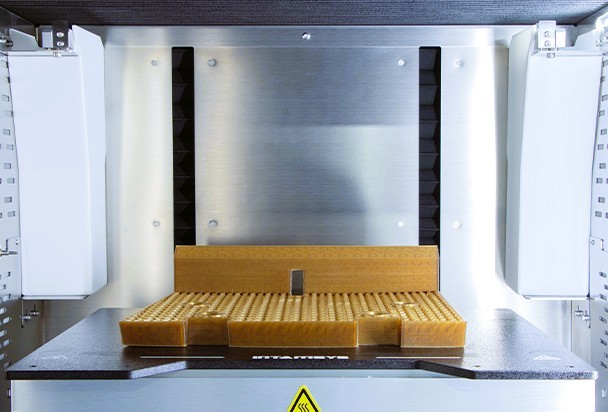

FUNMAT PRO 310 APOLLO integrates an IDEX (Independent Dual Extruder) system capable of reaching nozzle temperatures of up to 450°C, supported by a heated build plate up to 160°C and a thermally controlled chamber up to 100°C.
This architecture enables stable processing of some of the most demanding materials in the industry, including:
PEEK and PEKK
PEEK-CF / PEEK-GF (reinforced composites)
PPS, PPA, PC and other engineering polymers
Advanced thermal control reduces warping, improves interlayer adhesion, and enables the production of parts with high dimensional stability and excellent mechanical properties.

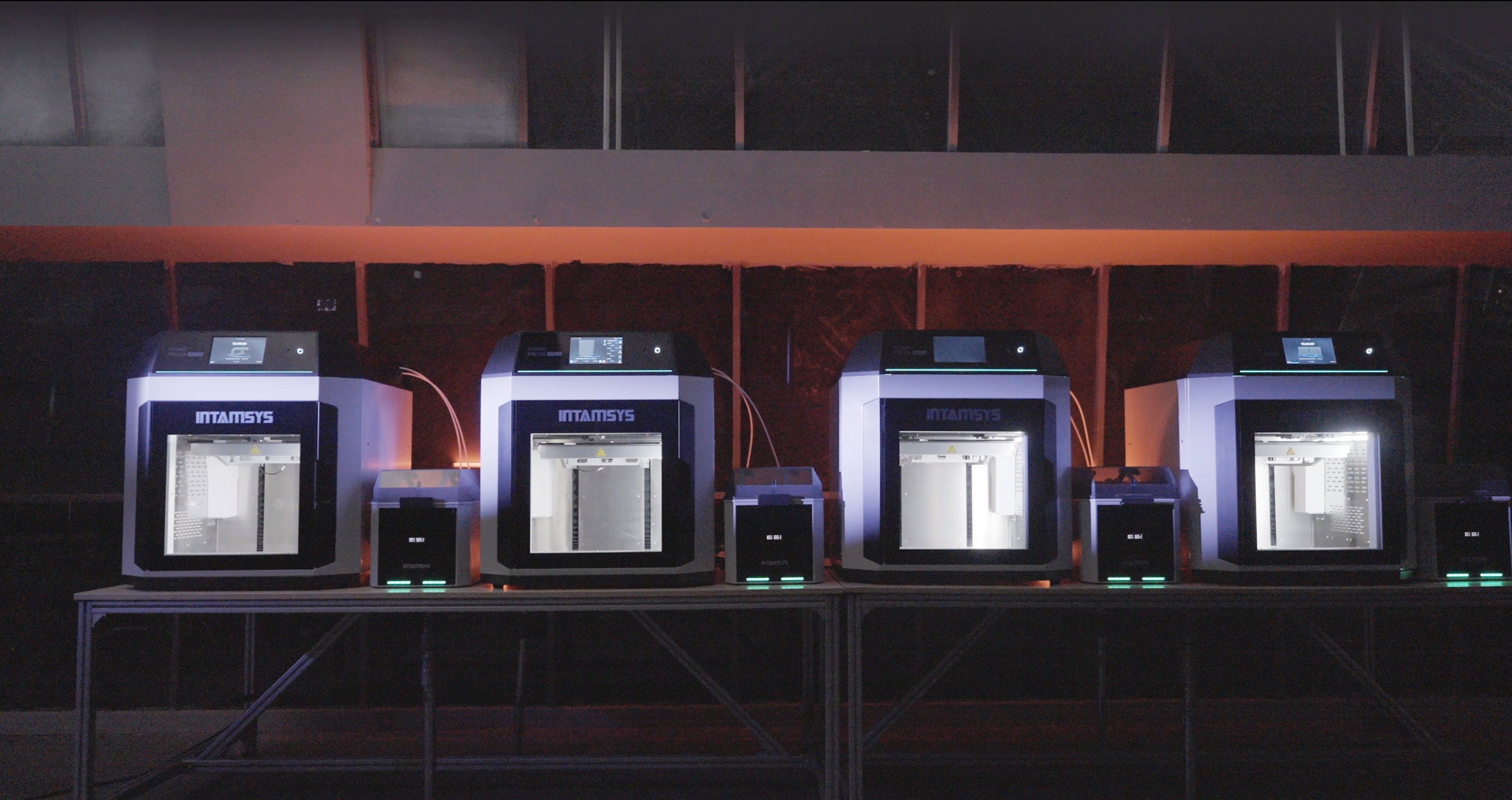

Continuous production without interruptions
One of the key advantages of the APOLLO system is its ability to deliver long-term continuous printing without human intervention.
The system is equipped with:
two active 3 kg filament units
temperature and humidity control up to 65°C
automatic material switching and continuous feeding
This setup enables print jobs to run for up to a full week without interruption, completely eliminating production downtime.
The result:
true industrial efficiency
reduced cost per part
scalability for serial production
High speed and superior structural strength
Through multi-physics control technology and advanced process optimization, APOLLO delivers:
printing speeds of up to 200 mm/s
up to 4× faster than standard PEEK 3D printers
Z-axis strength exceeding 40 MPa (more than twice as high)
This combination of speed and strength enables the production of functional parts capable of replacing metal components in certain applications.
Full traceability and complete process control

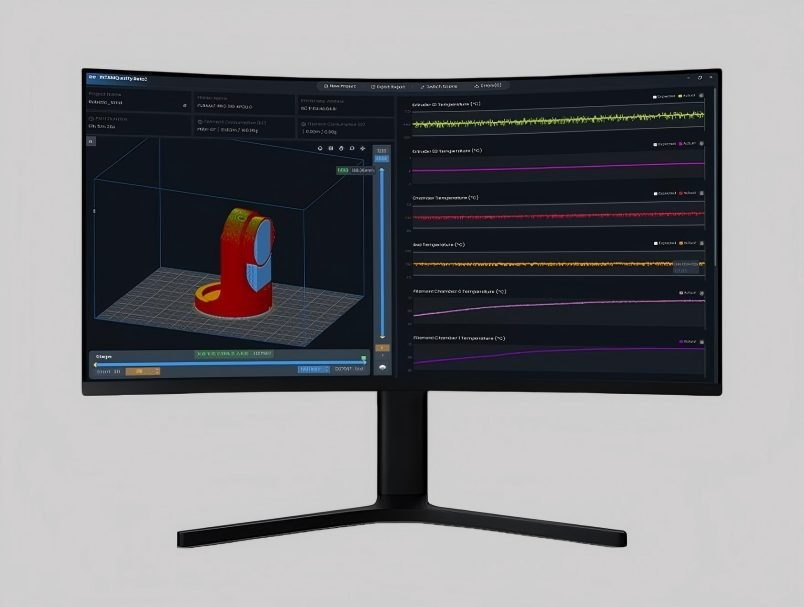

The integrated INTAMQuality™ system transforms the printer into an intelligent industrial platform, providing:
real-time monitoring of process parameters
full recording of production data
automatic material identification via RFID
quality validation for every part
This level of full traceability is essential in industries such as aerospace and medical, where strict process control is mandatory.
Automation and operational efficiency
FUNMAT PRO 310 APOLLO introduces a range of intelligent features that minimize operator intervention:
self-cleaning nozzles (no prime tower required)
automatic filament management
industrial HMI interface with full preview
automatic optimization of speed and material flow
These features help reduce errors, save material, and increase overall print success rates.

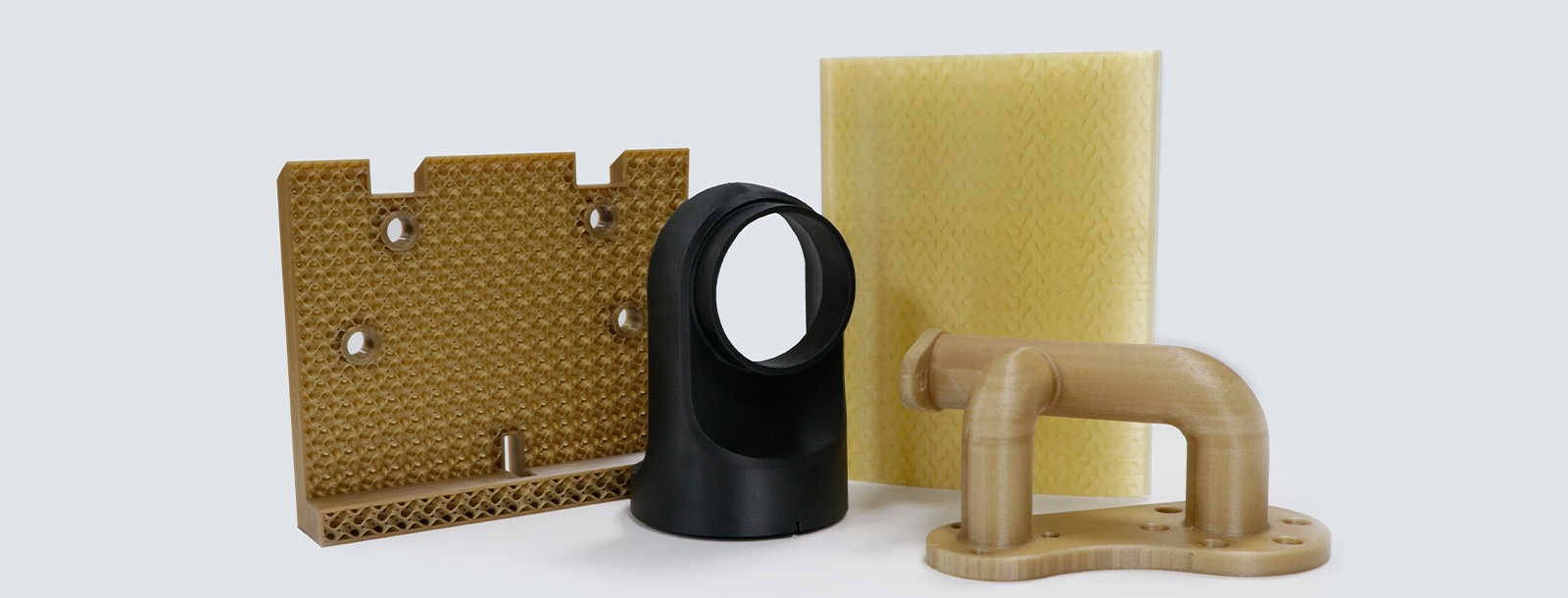

Real industrial applications
Thanks to its performance, APOLLO is used in industries with extreme requirements, such as:

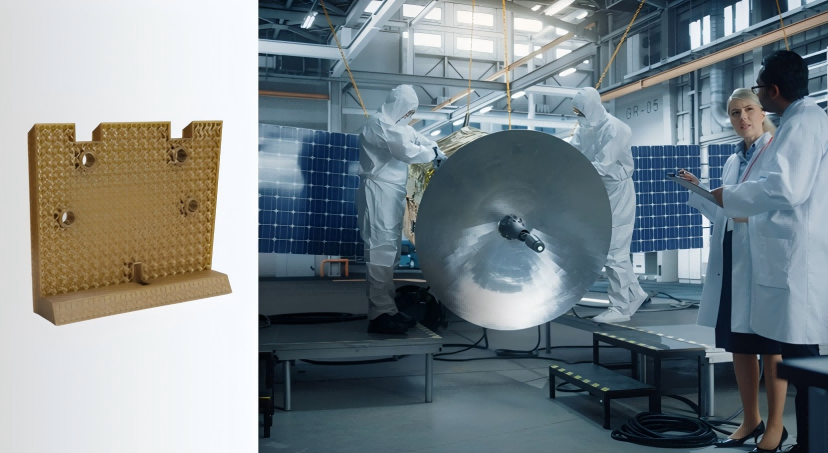

Aerospace
lightweight components resistant to high temperatures
parts with resistance to radiation and mechanical stress
Automotive
industrial jigs and fixtures
temperature-resistant functional components
Robotics
PEEK-CF parts with high rigidity
weight-optimized structures

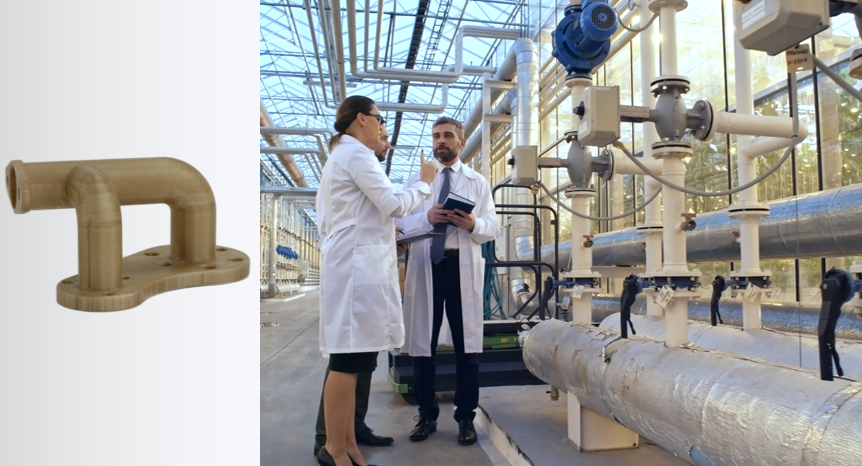

Oil & Gas
chemically resistant and wear-resistant components
applications in extreme environments
If the goal is real production, not just prototyping, INTAMSYS FUNMAT PRO 310 APOLLO is one of the most advanced solutions available on the market.
It is the ideal choice for companies that:
work with PEEK / PEKK
require continuous production
demand full traceability and industrial process control
aim to reduce manufacturing costs and lead times
