Simscan-E
Presicion in your palm
SIMSCAN-E Intelligent, Wireless and Palm-Sized 3D Scanner
The SIMSCAN-E is an intelligent, wireless, and palm-sized 3D scanner that combines a lightweight design with exceptional performance. Featuring advanced edge computing and wireless data transfer, it sets a new standard for flexible, wireless and free 3D scanning. With robust algorithm and high-definition industrial cameras, SIMSCAN-E can capture 3D data with remarkable precision and efficiency. Capable of capturing up to 6.3 million measurements per second, it features three scanning modes: ultra-fast, hyperfine, and deep hole. This versatility allows it to handle a wide range of tasks effortlessly, from scanning in tight spaces to measuring complex structures. Despite the numerous opportunities for data collection in process improvements, challenges such as time constraints, object size, and limited accessibility often hinder the ability to achieve accurate and undamaged scan results. However, the SIMCAN-E is specifically designed to address these issues. Its compact form and flexible operation make it ideal for scanning in confined spaces, ensuring high-precision results even in complex or hard-to-reach areas.
Edge computing
Wireless Data Transfer
81 blue laser lines
6,300,000 measurements/s
Dimension 203 × 80 × 44 mm
Wireless Module

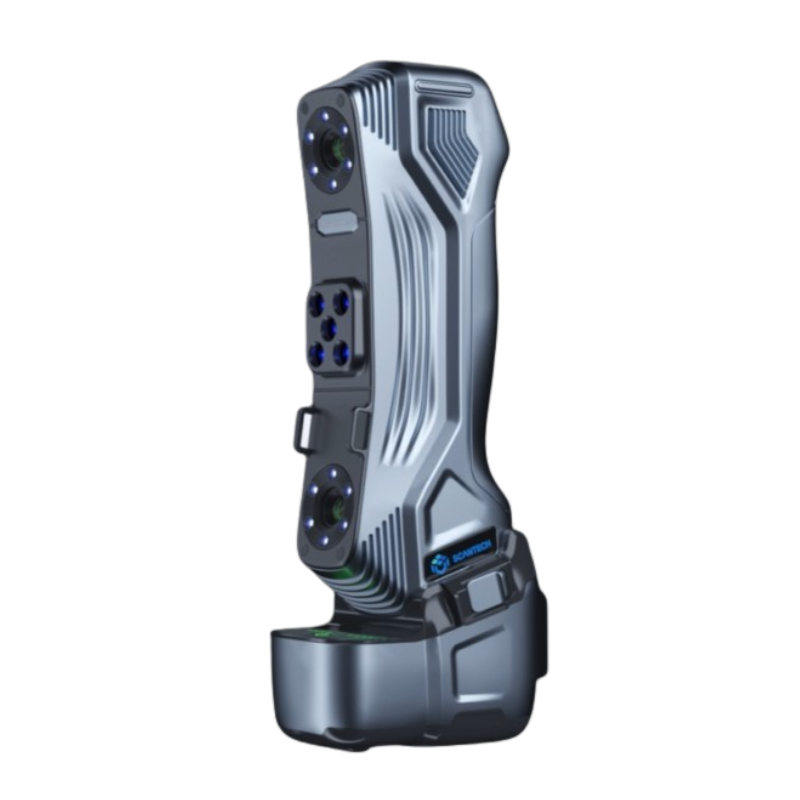

Compact and Wireless
Engineered to deliver Weighing just 600 g and measuring 203 × 80 × 44 mm, the SIMSCAN-E portable 3D scanner offers unmatched ease for one-handed scanning. Enjoy robust data processing and say goodbye to tangled cables. With SIMSCAN-E’s sophisticated edge computing and wireless data transfer, users are assured of freedom and flexibility for every scan. Whether you’re 3D scanning on the complex shopfloor, at height, or outdoors without access to electricity, nothing can hold you back. Equipped with high-capacity batteries, the SIMSCAN-E ensures extended operation time. Its dual-power design allows for effortless battery swaps without interrupting the scanning workflow. An intelligent battery level indicator keeps you informed throughout the scanning process. Its detachable charging base allows for seamless switching between wireless and wired modes, adapting to different scenarios and needs.
Elevate Your Scanning Experience Anywhere
Engineered to deliver stability and optimal control throughout the entire scanning process, SIMSCAN-E enhances precision to new heights while ensuring the highest quality at every step. Whether on the factory floor, in the field, or in challenging conditions, it guarantees consistent performance and exceptional results. Empowering businesses and professionals across a range of industries—including healthcare, art, design, reverse engineering, quality inspection, and industrial manufacturing—SIMSCAN-E streamlines workflows and drives innovation. Its advanced capabilities help thousands achieve faster, more accurate, and efficient results, boosting productivity across various sectors.
Fast, Smooth, and Efficient
Thanks to its advanced algorithm, SIMSCAN-E delivers a high measurement rate of 6.3 million measurements/s. Coupled with 81 blue laser lines and a 180-FPS frame rate, it ensures efficient and smooth scanning experiences. The high measurement rate enables rapid data acquisition, capturing intricate details and complex geometries with exceptional precision. The 81 blue laser lines provide comprehensive coverage and enhanced accuracy, minimizing the need for multiple passes or redundant scans. The 180 FPS frame rate ensures high clarity and scan quality, even in detailed and complex scenarios.
Exceptional Accuracy for Industrial-Grade Applications
Powered by innovative algorithms and aerospace-grade components, SIMSCAN-E delivers measurement accuracy up to 0.020 mm. This level of precision meets the stringent requirements of industrial-grade 3D scanning and measurement. Whether for product development, quality inspection, or detailed analysis, SIMSCAN-E ensures reliable data capture throughout the entire product lifecycle, enhancing efficiency and driving innovation across multiple sectors.
Exceptional Precision and Detail
ESIMSCAN-E is equipped with advanced industrial cameras and sophisticated image enhancement algorithms, designed to capture every intricate feature with exceptional precision. Its sub-pixel feature extraction technology ensures that even the smallest details are recorded accurately, making it ideal for applications requiring meticulous detail and fine resolution.

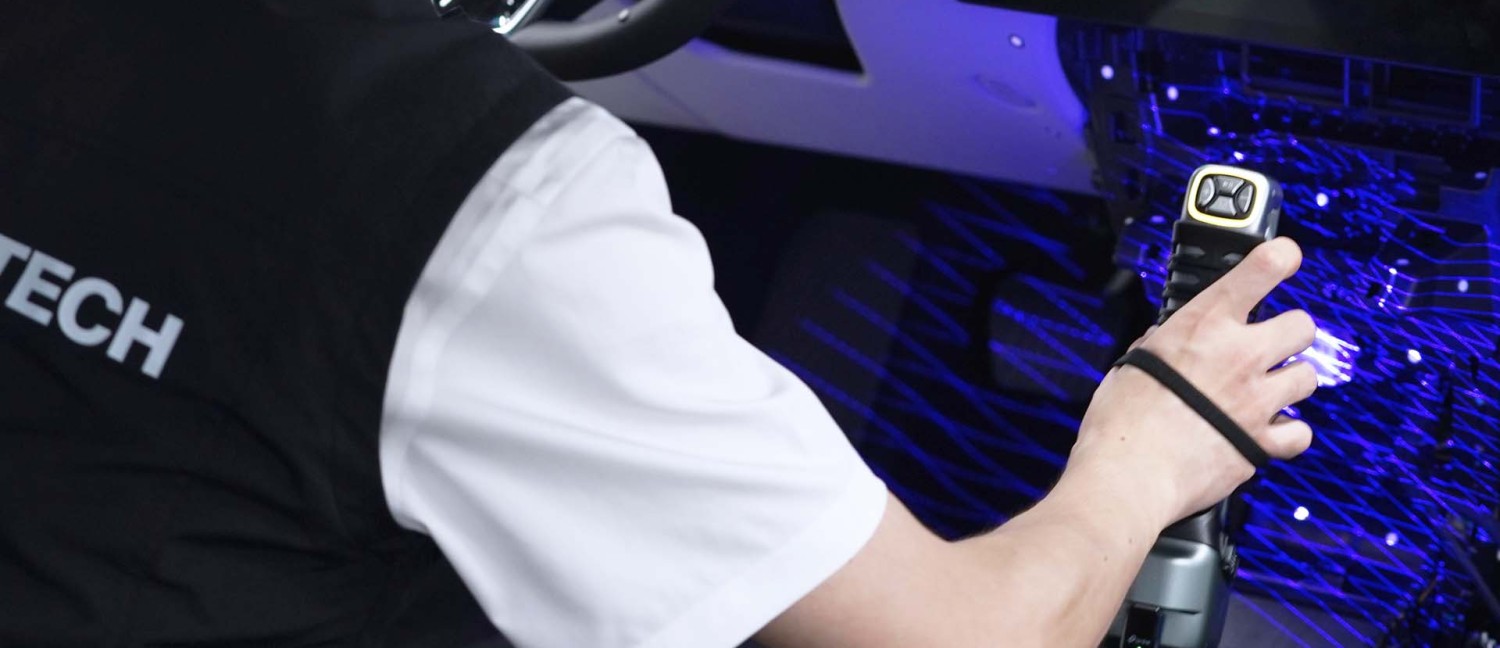

Excellent for Narrow Spaces
Flexible and lightweight, this portable 3D scanner supports instant scanning in various environments. Its short-distance camera design, with a steep view angle, greatly enhances the ability to scan hidden areas such as gaps, slots, deep holes, and channels. This significantly improves data integrity, providing more complete 3D data for further design, inspection, analysis, and more.
| Ultra-fast scanning | 63 blue laser lines (Triple Cross Technology) |
| Hyperfine scanning | 17 blue parallel laser lines |
| Deep hole scanning | 1 extra blue laser line |
| Accuracy | Up to 0.020 mm |
| Scanning rate up to | 6,300,000 measurements/s |
| Scanning area up to | 700 mm × 600 mm |
| Laser class | CLASSⅡ (eye-safe) |
| Resolution up to | 0.020 mm |
| Volume accuracy | 0.015 mm + 0.035 mm/m |
| Volume accuracy Paired with MSCAN-L15 | 0.015 mm + 0.012 mm/m |
| Stand-off distance | 300 mm |
| Depth of field | 550 mm |
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc. |
| Dimensions | 203 mm × 80 mm × 44 mm |
| Weight | 600 g |
| Operating temperature range | -10°C‒40°C |
| Interface mode | USB3-B |
| Patents | CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S |
